254322MR050G400ZU datasheet, PDF

Datasheet> All Categories > The connector> The connector> 254322MR050G400ZU

254322MR050G400ZU: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size197KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254322MR050G400ZU Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

254322MR050G400ZU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGE WITHOUT CAP
body width	0.26 inch
subject depth	0.272 inch
body length	2.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254322MR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

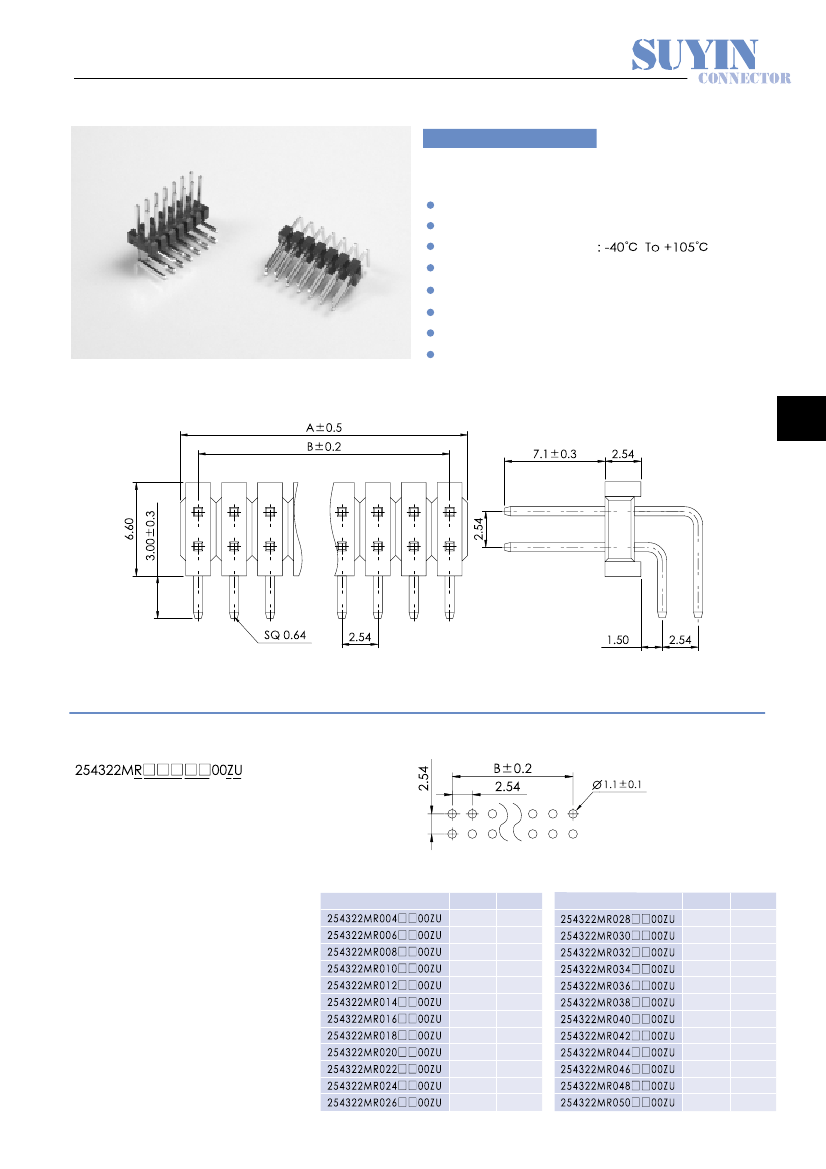

2.54 x 2.54mm DUAL ROW HEADER

EASY BREAKABLE R/A DIP TYPE

254322MR Series

Mates With SUYIN 254100, 254900, 254901, 254906 Series

Specifications:

4~50 Circuits

Insulator Material

Operating Type Range

Terminal Material

Platings

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Brass

: Gold or Tin Plated

: 1.5A

: 250V AC

: 500V AC (Min. 60 Seconds)

: P.B.T UL 94V-0

2.54

Order Information

Recommended P.C.B. Layout

1. 'R'

Right Angle DIP Type

2. No. of Pins

3. Plating

4. Color 'Z'

Black

5. Package

'U'

Tube Package Without CAP

Reference Page 11

Dimension Information

SUYIN P/NO.

DIM.A

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

DIM.B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

SUYIN P/NO.

DIM.A

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

DIM.B

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96
