DG221DY datasheet, PDF - EEWORLD Datasheet

DG221DY: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size140KB，6 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

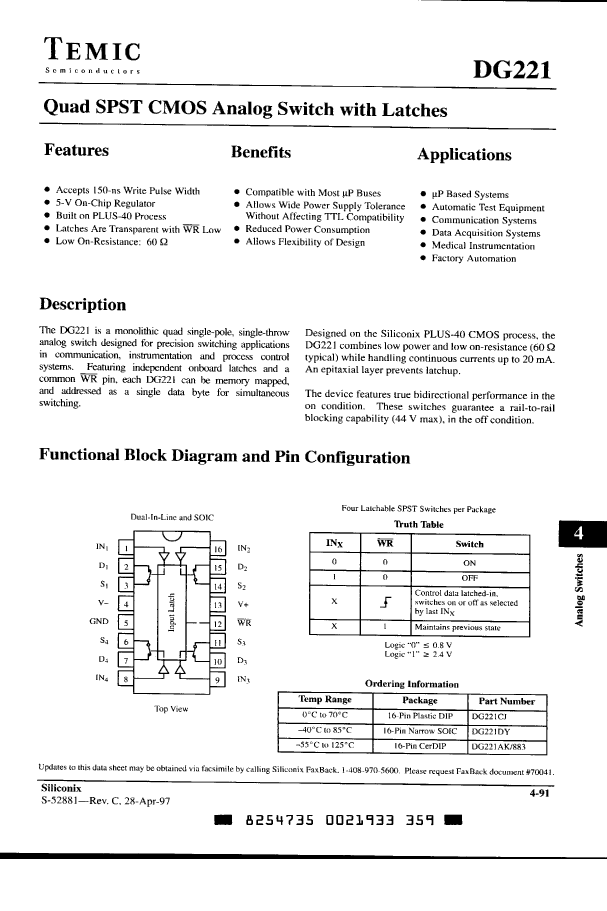

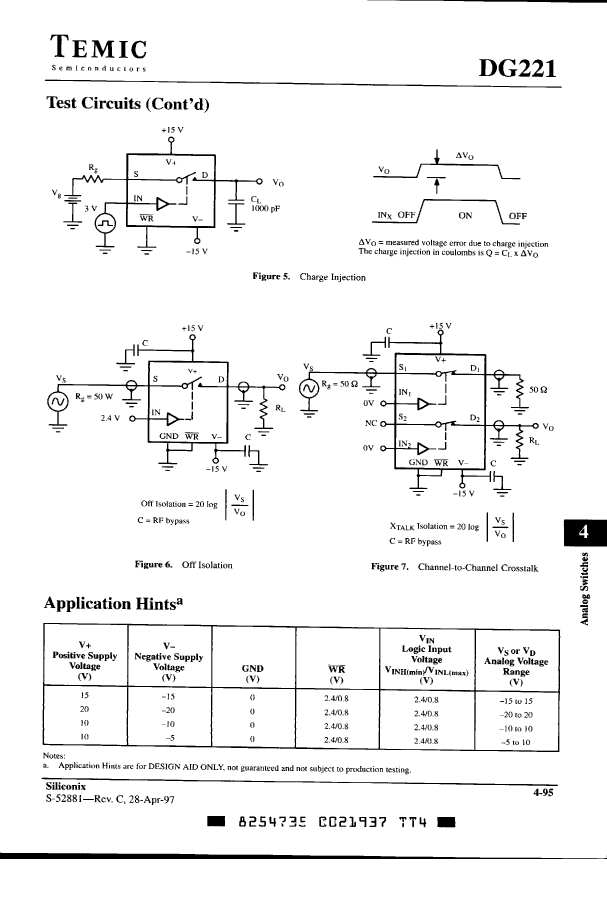

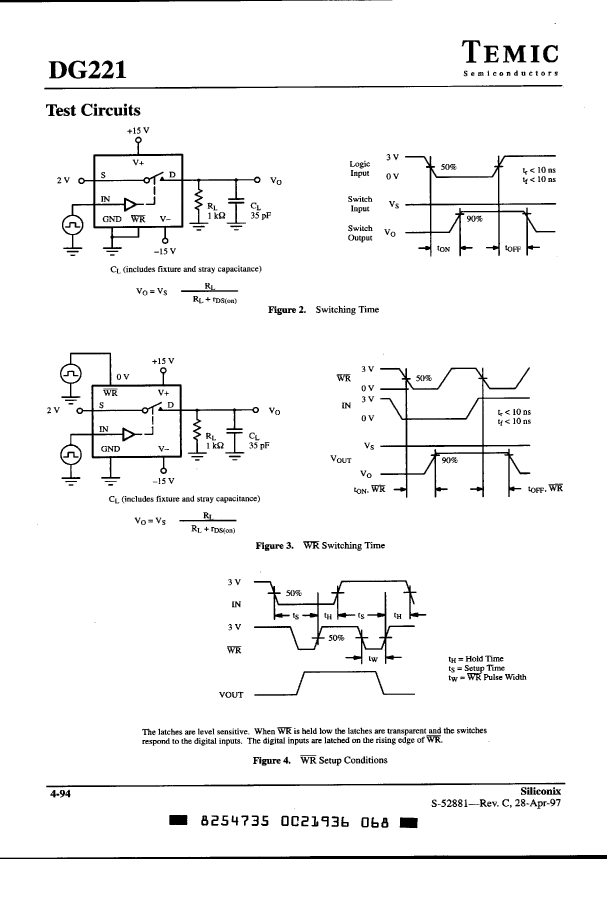

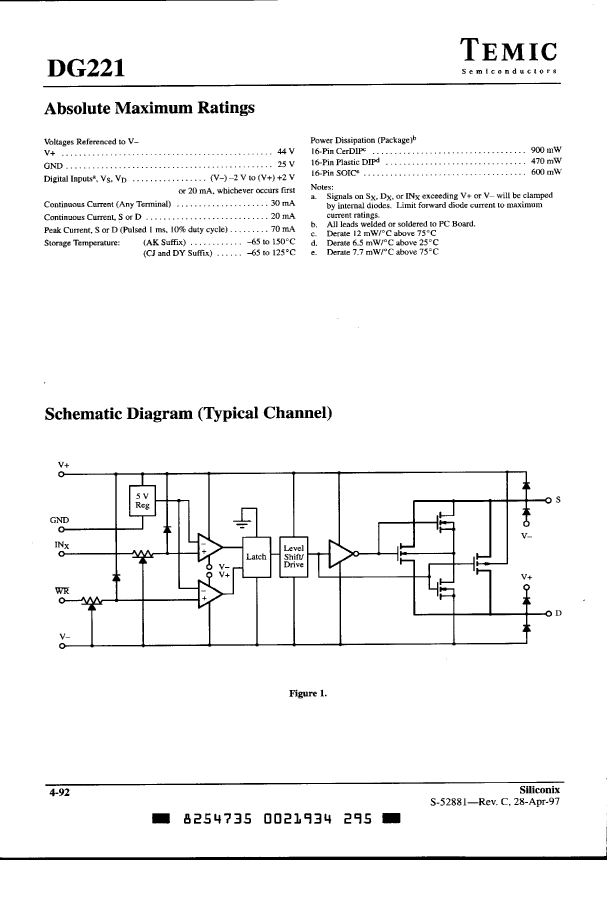

DG221DY Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO16,

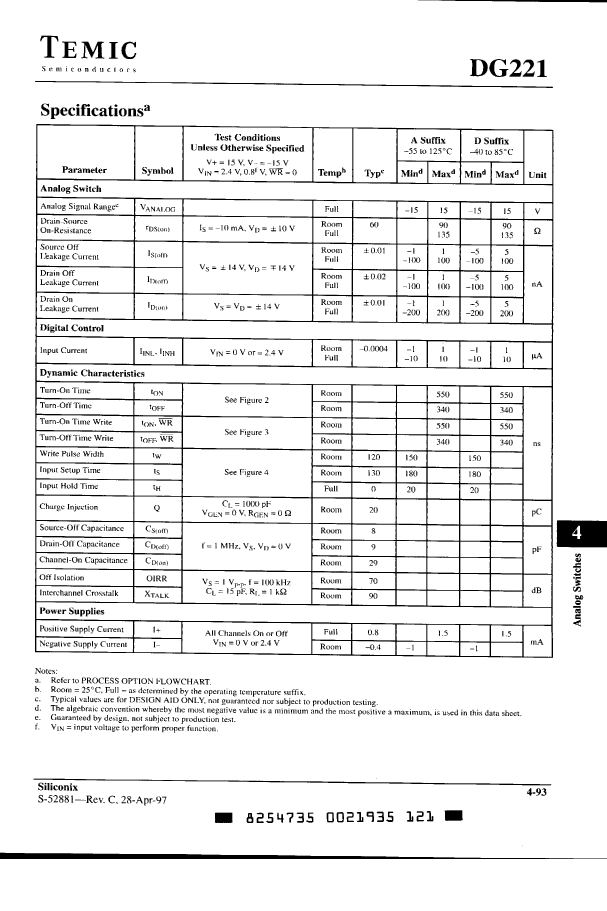

Parameter Name	Attribute value
Maker	Atmel (Microchip)
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	90 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	1.5 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	340 ns
Maximum connection time	550 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

	DG221DY
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO16,
Maker	Atmel (Microchip)
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	90 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply current (Isup)	1.5 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	340 ns
Maximum connection time	550 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
