MRS2-60-UA-SMT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > MRS2-60-UA-SMT

Preview

MRS2-60-UA-SMT: Description0.8mm SUB-MICRO HEADERS 1.00mm MICRO HEADERS; File Size253KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Compare View All

MRS2-60-UA-SMT Overview

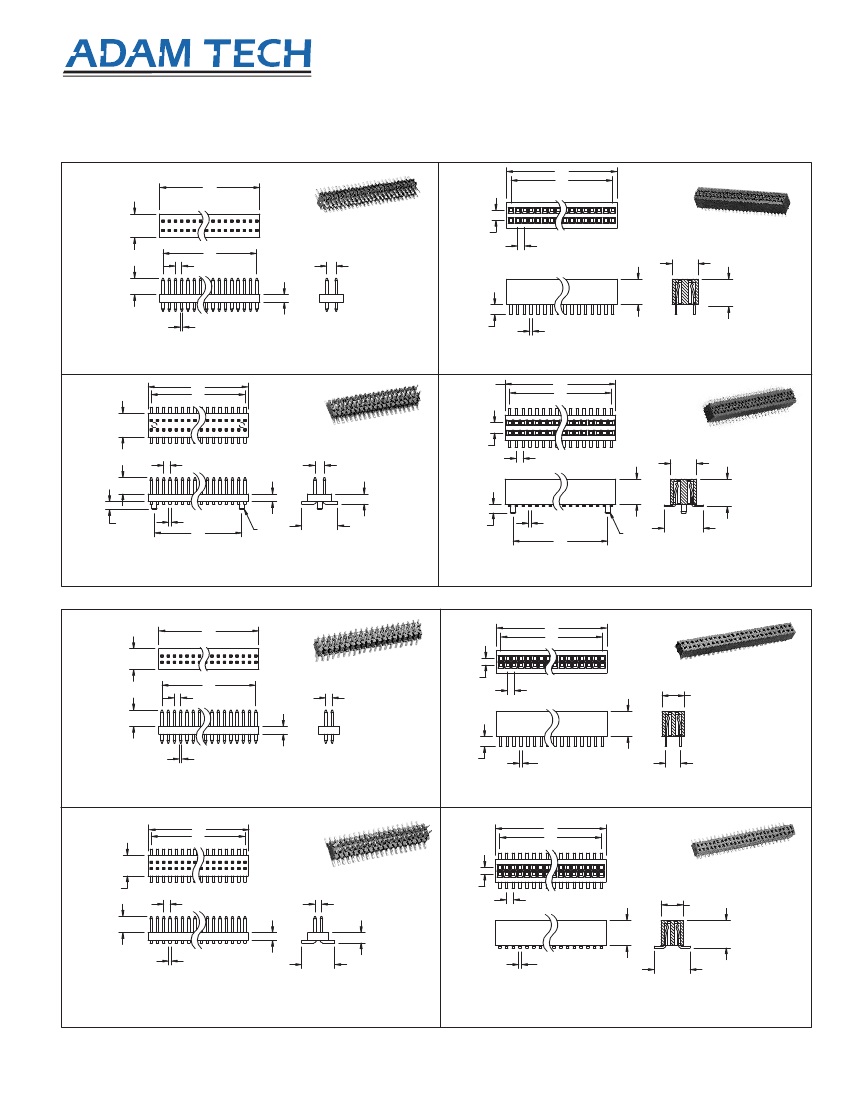

0.8mm SUB-MICRO HEADERS 1.00mm MICRO HEADERS

Preview

Download Datasheet

View All

Adam Technologies, Inc.

0.8mm SUB-MICRO HEADERS

1.00mm MICRO HEADERS

.031" [0.8] & .039" [1.00] CENTERLINE

MPH & SPH / MRS & SRS

.047

[1.20]

.047

[1.20]

.120

[3.05]

.120

[3.05]

SPH2-60-UA

.031 [0.80]

.039 [1.00]

.047

[1.20]

.047

[1.20]

.031 [0.80]

SRS2-60-UA

.120

[3.05]

.120

[3.05]

.031 [0.80]

.118

[3.00]

.118

[3.00]

.078 [2.00]

.127 [3.25]

.078 [2.00]

.012 [0.30] SQ.

.039 [1.00]

.012 [0.30] SQ.

A = .031 [.80] X No of Positions Per Row

B = .031 [.80] X No of Spaces Per Row

A = .031 [.80] X No of Positions Per Row

B = .031 [.80] X No of Spaces Per Row

.120

[3.05]

.120

[3.05]

.031 [0.80]

.078 [2.00]

.127 [3.25]

0.8mm Male Header

SPH2 Series

.110

.012 x .010

[2.79]

[0.3 x 0.2]

.110

.012 x .010

[2.79]

[0.3 x 0.2]

A = .031 [.80] X No of Positions Per Row

B = .031 [.80] X No of Spaces Per Row

A = .031 [.80] X No of Positions Per Row

B = .031 [.80] X No of Spaces Per Row

.047

[1.20]

.047

[1.20]

0.8mm Female Header

SRS2 Series

SPH2-60-UA-SMT

.047

[1.20]

.047

[1.20]

.051 [1.30]

.181

[4.60]

.181

[4.60]

.031 [0.80]

.039 [1.00]

.031 [0.80]

.118

[3.00]

.118

[3.00]

.120

[3.05]

.120

[3.05]

SRS2-60-UA-SMT

.127 [3.25]

.078 [2.00]

.039 [1.00]

.039

.012 [0.30] SQ.

[1.00]

ø.025

.039

[ø0.65]

.012 [0.30] SQ.

[1.00]

ø.025

A = .031 [.80] X No of Positions Per Row

[ø0.65]

B = .031 [.80] X No of Spaces Per Row

A = .031 [.80] X No of Positions Per

C = .031 [.80] X No of Spaces - 1

Row

B = .031 [.80] X No of Spaces Per Row

C = .031 [.80] X No of Spaces - 1

.051 [1.30]

0.8mm SMT Male Header

SPH2 SMT Series

.012 x .008

.039

[0.3 x 0.2]

[1.00]

ø.025

.012 x .008

.039

[ø0.65]

[0.3 x 0.2]

[1.00]

ø.025

A = .031 [.80] X No of Positions Per Row

[ø0.65]

B = .031 [.80] X No of Spaces Per Row

A = .031 [.80] X No of Positions Per

C = .031 [.80] X No of Spaces - 1

Row

B = .031 [.80] X No of Spaces Per Row

C = .031 [.80] X No of Spaces - 1

.127 [3.25]

.181

[4.60]

.181

[4.60]

0.8mm SMT Female Header

SRS2 SMT Series

1.0mm MICRO HEADERS

.125

[3.17]

.125

[3.17]

MPH2-60-UA

.039 [1.00]

.059 [1.49]

.039

[1.00]

.039

[1.00]

.039

[1.00]

.039

[1.00]

MRS2-60-UA

.039 [1.00]

.100

[2.54]

.100

[2.54]

.039 [1.00]

.084

[2.12]

.084

[2.12]

68[

.075 [1.90]

.68[

.075 [1.90]

.012 [0.30] SQ.

.059 [1.49]

.012 [0.30] SQ.

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

.125

[3.17]

.125

[3.17]

.075 [1.90]

1.0mm Male Header

MPH2 Series

.110

.014 [.36]

[2.79]

.110

.014 [.36]

[2.79]

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

.039

[1.00]

.039

[1.00]

1.0mm Female Header

MRS2 Series

MPH2-60-UA-SMT

.039 [1.00]

.039

[1.00]

.039

[1.00]

.071 [1.80]

.205

[5.21]

.205

[5.21]

MRS2-60-UA-SMT

.039

[1.00]

.039

[1.00]

.039 [1.00]

.100

[2.54]

.100

[2.54]

.087 [2.21]

.039 [1.00]

.059 [1.49]

.012 [0.30] SQ.

.039 [1.00]

.084

[2.12]

.084

[2.12]

.075 [1.90]

.059 [1.49]

.071 [1.80]

.014 [.36]

.087 [2.21]

.150

[3.81]

.150

[3.81]

.012 [0.30] SQ.

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

.014 [.36]

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

A = .039 [1.00] X No of Positions Per Row

B = .039 [1.00] X No of Spaces Per Row

1.0mm SMT Male Header

MPH2-SMT Series

1.0mm SMT Female Header

MRS2-SMT Series

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM
