Miniature Slides
Series MS

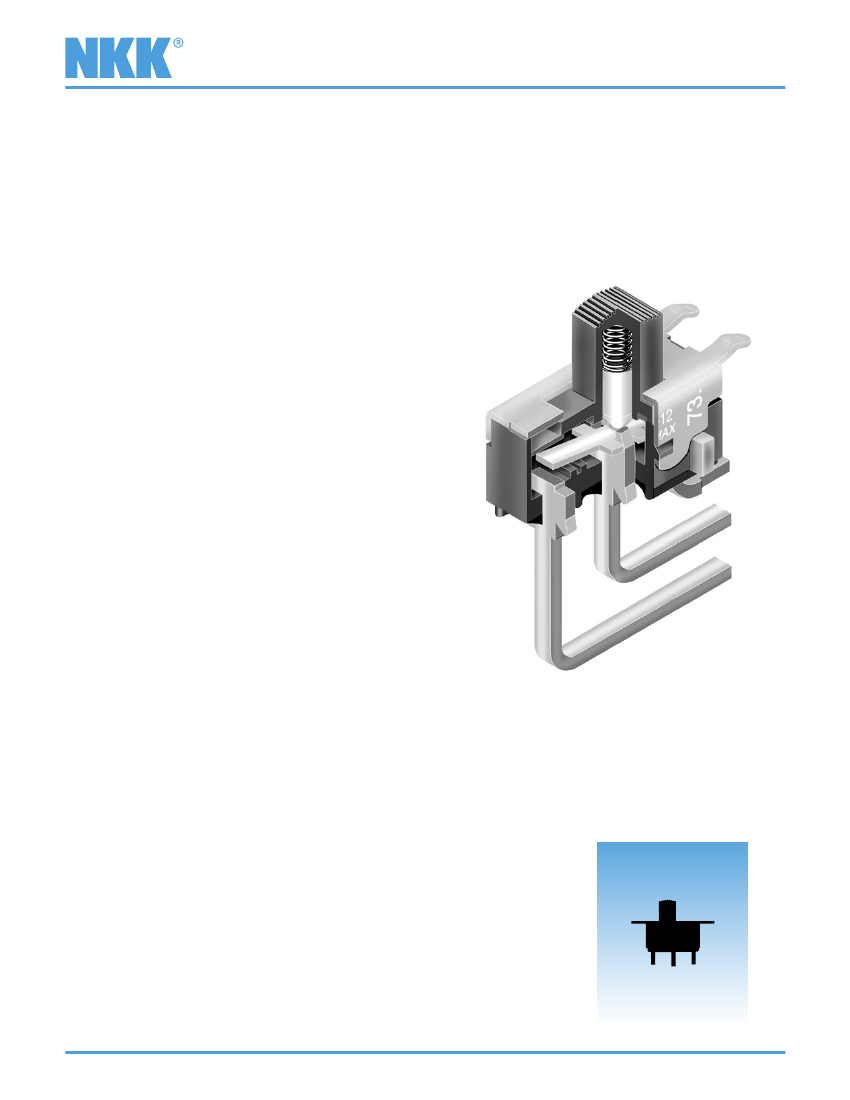

Distinctive Characteristics
Available in flat frame and bracketed PC mounting types.
Over-center actuator block and plunger design gives crisp
actuation with clear indication of circuit status; this design
also diminishes sparking and increases operating life.
Guide interlocked with actuator block prevents
window locking and maintains correct plunger
alignment to assure contact stability.
Antijamming design protects contacts from
damage due to excessive downward force
on the actuator.
High internal barriers between poles and
insulating sheet between case and actuator
block give added protection to contacts.
Specially composed silver alloy contacts for
power applications or gold contacts for logic
level applications give high contact reliability.
Prominent external insulating barriers increase
insulation resistance and dielectric strength.
Epoxy sealed terminals prevent entry of flux, solvents,
and other contaminants.
Clinching of frame to case well above base and terminals provides
1,500V dielectric strength.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Miniature Slides
Series MS
General Specifications
Electrical Capacity (Resistive Load)
Power Level (code W):
Logic Level (code G):
Logic/Power Level (code A):
6A @ 125V AC or 3A @ 250V AC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Combines W & G ratings
Note: Find additional explanation of dual rating & operating range in Supplement section.
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Total Travel:
10 milliohms maximum for silver; 20 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum
25,000 operations minimum for silver; 50,000 operations minimum for gold
Nonshorting (break-before-make)
On-None-On circuit .087” (2.2mm); all other circuits .138” (3.5mm)
Materials & Finishes
Actuator:
Frame:
Dust Cover:
Case:
Movable Contacts:
Stationary Contacts:
Terminals:
Glass fiber reinforced polyester
Stainless steel for panel & PCB mount; phosphor bronze with tin plating for bracket mount
Phosphor bronze with nickel plating
Glass fiber reinforced diallyl phthalate resin (UL94V-0)
Silver alloy (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Silver capped copper with silver plating (code W); copper with gold plating (code G);
or silver alloy with gold plating (code A)
Copper or brass with silver or gold plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Processing
Soldering:
Cleaning:
Wave Soldering recommended (PC Mount). See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
Flammability Standards:
UL Recognized:
C-UL Recognized:
R
CSA Certified:
UL94V-0 rated case
All Single & Double Pole Double Throw models recognized at 6A @ 125V AC & 3A @ 250V AC;
UL File No. WOYR2.E44145; add “/U” to end of part number to order UL mark on switch.
All Single & Double Pole Double Throw models recognized at 6A @ 125V AC & 3A @ 250V AC;
UL File No. WOYR8.E44145; add “/C-UL” to end of part number to order C-UL mark on switch.
All Double Throw & 3 Throw models certified at 6A @ 125V AC, 3A @ 250V AC, &
0.4VA maximum @ 28V DC; CSA File No. 023535-0-000; add “/C” to end of part number
to order CSA mark on switch.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Miniature Slides
TYPICAL SWITCH ORDERING EXAMPLE
Series MS
MS
1
2
A
S
G
30
POLES
1
2
SPDT
DPDT
SP3T
F
N
TERMINALS
MOUNTING
Panel Mount
(Terminal 01 only)
PCB Mount
(Terminal 03 only)
Bracket Mount
(Terminals 13, 30, &
40 only)
01
03
13
30
40
Solder Lug
Straight PC
Straight with Bracket
Right Angle PC
Vertical PC
CIRCUITS
2
3
0
ON
ON
ON
NONE
OFF
ON
ON
ON
ON
S
CONTACT MATERIALS
& RATINGS
ACTUATORS
A
B
.150” (3.8mm) Wide for
Single or Double Pole
.323” (8.2mm) Wide for
Double Pole
W
G
A
Silver; Rated 6A @ 125V
AC & 3A @ 250V AC
Gold; Rated 0.4VA max. @
28V AC/DC max.
Gold over Silver; Rated
6A @ 125V AC & 0.4VA
max. @ 28V AC/DC max.
IMPORTANT:
Switches are supplied without
UL, C-UL & CSA markings un-
less specified. Specific models
& ratings are noted on General
Specifications page.
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
MS12ASG30
.150” (3.8mm) Wide
Actuator
SPDT
ON-NONE-ON Circuit
Gold Contacts with 0.4VA Rating
Right Angle PC Terminals
with Support Bracket
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Miniature Slides
POLES & CIRCUITS
Slide Position
Left
Pole
SP
Model
MS12
MS13
MS22
MS23
ON
ON
ON
ON
NONE
OFF
NONE
OFF
ON
ON
ON
ON
2-1
OPEN
2-3
SPDT
Center
Right
Connected Terminals
Left
Center
Right
Note:
Series MS
Throw & Schematics
Terminal numbers are
not actually on the switch.
2 (COM)
1
2
1
(COM)
3
4
3
5
6
DP
2-1 5-4
OPEN
2-3 5-6
DPDT
For 3 Throw (3-On)
Connected Terminals & Schematics
Pole
Model
Left
ON
External
Connection
5
2 (in)
Center
ON
External
Connection
5
2 (in)
Right
ON
External
Connection
5
2 (in)
External Connection
The SP3T model utilizes a
double pole base.
(out)
SP
MS20
1 (out)
3 4 (out) 6 (out)
1 (out)
3 4 (out) 6 (out)
1 (out)
3 4 (out) 6 (out)
2-1 5-4
2-3 5-4
2-3 5-6
External
connections
must be made
during field
installation.
External
Conn
6
5
4
3
2
1
Common
(in)
(out)
(out)
ACTUATORS
A
.150” (3.8mm) Wide
for Single Pole
.150” (3.8mm) Wide
for Double Pole
B
.323” (8.2mm) Wide
for Double Pole Only
(8.2)
.323
(3.8)
.150
(3.8)
.150
(3.8)
.150
(3.8)
.150
(3.8)
.150
CONTACT MATERIALS & RATINGS
W
G
Silver over Silver
Power Level
6A @ 125V AC & 3A @ 250V AC
Gold over Brass or Copper
Logic Level
0.4VA maximum @ 28V AC/DC maximum
Note: Complete explanation of operating range in Supplement section.
A
Gold over Silver
Power Level
or Logic Level
6A @ 125V AC
or 0.4VA maximum @ 28V AC/DC maximum
Note: This dual rated option is suitable when two or more identical switches are used in logic and in power circuits
within the same application. See Supplement section for complete explanation of dual rating and operating range.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Miniature Slides

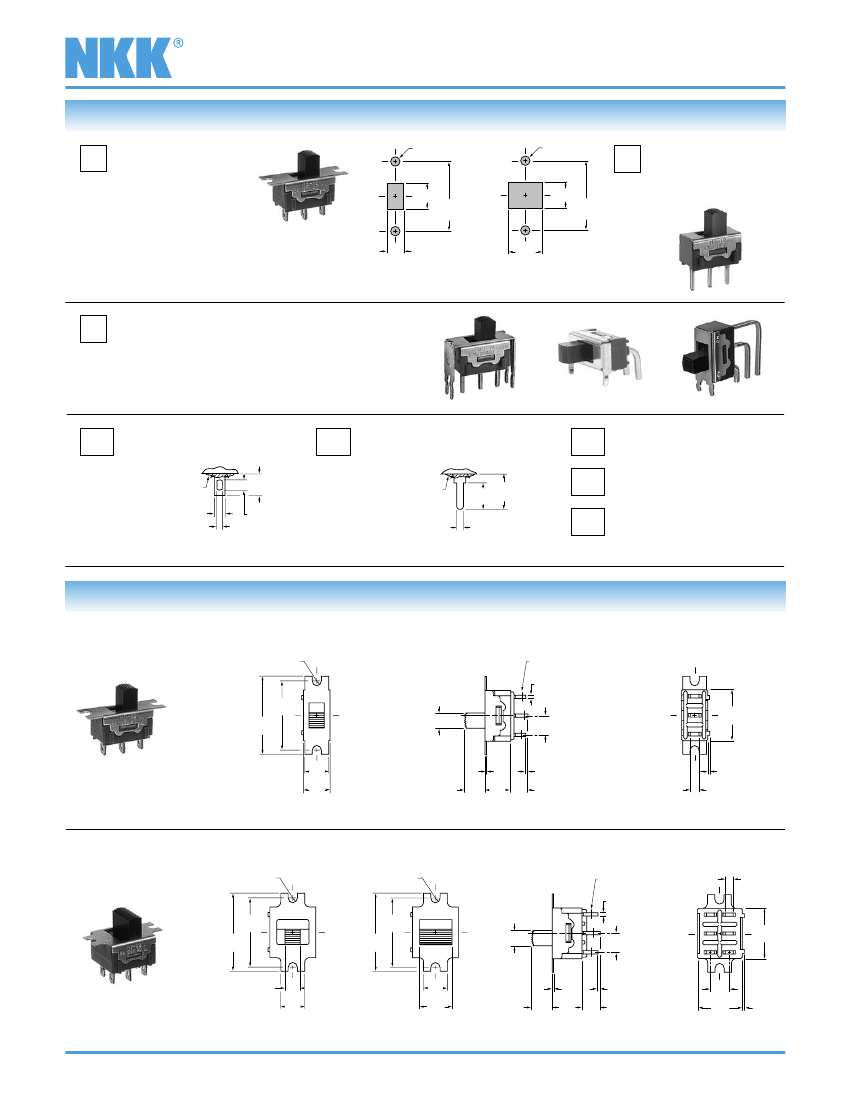

MOUNTING TYPES & TERMINALS
F
Panel Mount
(Combines with Solder
Lug Terminal 01 only)
(2.4) Dia Typ
.094
(2.4) Dia Typ
.094
Series MS
Straight PC Mount
(Combines with
Straight PC Terminal
03 only)
N
A
A
(17.53)
.690
(17.53)
.690
Dimension A =
.268” (6.8mm) for on-none-on
.319” (8.1mm) for on-off-on & on-on-on
Maximum Panel Thickness: .197” (5.0mm)
(4.19)
.165
(9.0)
.354
SP or DP with .150”
(3.8mm) Actuator
DP only with .323”
(8.2mm) Actuator
S
Support Bracket Mount
(For Terminals 13, 30, & 40)
Maximum Panel Thickness:
For Straight PC with Bracket Terminal 13: .197” (5.0mm)
For Angle Mount Terminals 30 & 40: .177” (4.5mm)
01
Solder Lug
Epoxy Seal
(2.0)
.079
(4.0)
.157
03
Straight PC
Epoxy Seal
(6.35)
(4.8) .250
.189
13
30
40
Straight PC with Bracket
Right Angle PC
Vertical PC
(2.0)
(1.1) .079
.043
Thk = (0.8)
.031
(1.17)
.046
Thk = (0.8)
.031
TYPICAL SWITCH DIMENSIONS
Solder Lug Terminals
(1.2) R Typ
.047
Single Pole
(1.1) x (2.0) Typ
.043 x .079
(0.8) Typ
.031
(17.53)
.690
(19.6)
.772
ON
3
2
ON
(3.8) Sq
.150
(4.7) Typ
.185
(12.7)
.500
1
(6.1)
.240
(6.6)
.260
(0.4)
.016
(5.1) (6.4) (4.5)
.201 .252 .177
(0.5)
.020
(0.5)
.020
(2.0)
.079
MS12AFW01
Actuator in LEFT Position
Solder Lug Terminals
(1.2) R Typ
.047
Double Pole
(1.2) R Typ
.047
(1.1) x (2.0) Typ
.043 x .079
(0.8) Typ
.031
(17.53)
.690
(19.6)
.772
(17.53)
.690
(19.6)
.772
ON
6
5
ON
3
2
(2.0) Typ
.079
(3.8)
.150
(4.7) Typ
.185
(12.7)
.500
4
1
(3.8)
.150
(6.1)
.240
(6.1)
.240
(8.2)
.323
(5.1)
.201
(0.5)
(0.4)
.020
.016
(7.6) (4.5)
.299 .177
(4.8)
.189
(11.4)
.449
(0.5)
.020
MS22BFW01
Actuator in LEFT Position
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
