MT328230 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> MT328230

MT328230: DescriptionPOWER/SIGNAL RELAY, 3PDT, MOMENTARY, 2320mW (COIL), 10A (CONTACT), SOCKET MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size435KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

MT328230 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MT328230	-	-	View	Buy Now

MT328230 Overview

POWER/SIGNAL RELAY, 3PDT, MOMENTARY, 2320mW (COIL), 10A (CONTACT), SOCKET MOUNT

MT328230 Parametric

Parameter Name	Attribute value
Minimum operating temperature	-45 Cel
Maximum operating temperature	50 Cel
Processing package description	ROHS COMPLIANT
state	Active
Relay type	POWER/SIGNAL RELAY
width	35.5 mm
high	57 mm
length or diameter	35.5 mm
Maximum AC coil current	0.0100 A
coil_input_supply_type	AC
coil_power__mw_	2320
Coil resistance	8300 ohm
Maximum AC coil voltage	230 V
contact_ac_max_rating_r_load	10A@400VAC
Maximum AC contact current	10 A
Maximum DC contact current	10 A
contact_output_supply_type	AC/DC
Maximum AC contact voltage	400 V
Manufacturer Series	MT
Installation features	SOCKET MOUNT
operating hours	16 ms
cking_method	BULK
Dimensions	35.5mm x 35.5mm x 57mm
eference_standard	UL; VDE
Relay action	MOMENTARY
Relay function	3PDT
release time	9 ms
seal	RT1
Terminal type	SNAP-ON
dditional_feature	WITH TEST BUTTON AND LED, COIL OPERATE VOLTAGE(AC): 184 V, COIL RELEASE VOLTAGE(AC): 92 V

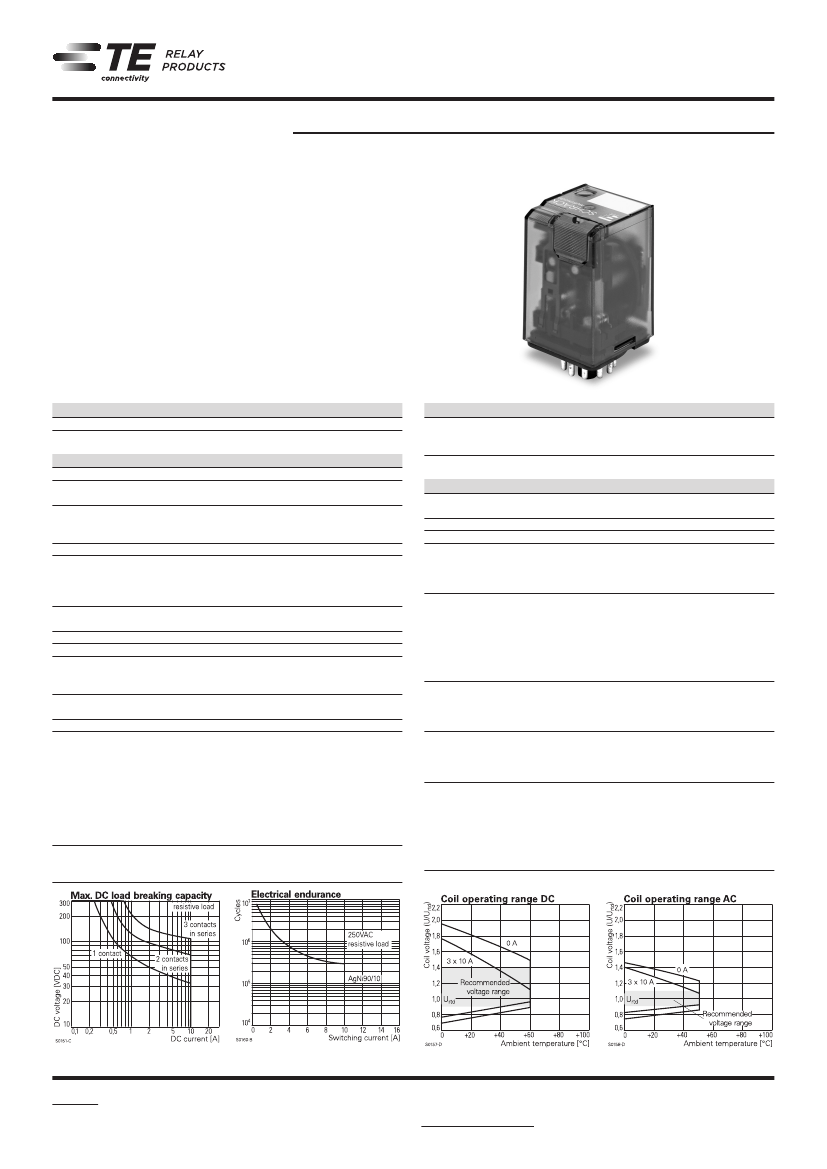

Preview

Download Datasheet

View All

General Purpose Relays

Industrial Relays

Multimode Relay MT

SCHRACK

2/3 pole 10A, 2 form C (CO) or 3 form C (CO) contacts

DC and AC coils

Mechanical indicator as standard

Electrical indicator

New test system with front operated finger protected

push-to-test button and integral locking test tab

White write on panel

Typical applications

Mechanical engineering, plant control

F0161-B

Contact Data

(continued)

Mechanical endurance

DC coil

AC coil

20x10

operations

20x10

operations

Approvals

VDE REG.-Nr. 6182, UL E214025

Technical data of approved types on request

Contact Data

Contact arrangement

2 form C (CO) or 3 form C (CO)

Rated voltage

240VAC

Max. switching voltage

400VAC

Rated current

10A

Limiting making current, max. 20ms 20A

20A

Limiting breaking current

10A

Switching power

2500VA

500 VA

Contact material

AgNi90/10 AgNi90/10 AgNi90/10

gold plated gold plated

Contact style

single

bifurcated

contact

Min. recommended contact load

12V

20mV

at 10mA

at 1mA

Initial voltage drop

30mV at 100mA/6VAC/1kHz

Frequency of operation, with/without load

1200/6000h

-1

Operate time max., DC coil

15ms

Release time max., DC coil

10ms

Bounce time max., DC coil, form A/form B

4/5ms

Contact ratings

Type

Contact

IEC 61810

MT22 DC coil C (CO)

MT22 AC coil C (CO)

MT32 DC coil C (CO)

MT32 AC coil C (CO)

MT2

C (CO)

MT2

A (NO)/B (NC)

MT2

C (CO)

MT3

C (CO)

UL 508

MT3

A (NO)/B (NC)

MT3

C (CO)

Load

Cycles

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil insulation system according UL

Coil versions, DC coil

Coil code

Rated

Operate

STD PD

voltage

VDC

006

0A6

4.5

012

0B2

9.0

024

0C4

18.0

048

0E8

36.0

060

0G0

45.0

110

1B0

110

82.5

220

2C0

220

165.0

6 to 220VDC

6 to 230VAC

class 130 (B)

Release

voltage

VDC

0.6

1.2

2.4

4.8

6.0

11.5

22.0

Coil

Rated coil

resistance

power

Ω±10%

1)2)

1.1

110

1.3

475

1.2

2000

1.2

2850

1.3

10000

1.2

40000

1.2

1) Coil resistance ±12%, 2) Coil resistance ±15%

3) Protection diode PD; standard polarity: 2-pole relays: +2 / -7, 3-pole relays: +2 / -10

All figures are given for coil without pre-energization, at ambient temperature +23°C

10A, 250VAC, cosφ=1, 35°C

100x10

10A, 250VAC, cosφ=1, 35°C

20x10

10A, 250VAC, cosφ=1, 35°C

100x10

10A, 250VAC, cosφ=1, 35°C

20x10

10A, 250VAC, resistive, 40°

30x10

B300 40°C

6.000

4A, 25VAC, resistive, bifurcated, 40°C 30x10

10A, 250VAC, resistive, 40°C

30x10

B300, 40°C

6.000

4A, 25VAC, resistive, bifurcated, 40°C 30x10

Coil versions, AC coil, 50/60Hz

Coil

Rated

Operate

code

voltage

50/60Hz

VAC

006

4.8/5.1

012

9.6/10.2

024

19.2/20.4

048

38.4/40.8

060

48.0/51.0

115

92.0/97.8

230

184.0/195.5

Release

voltage

50/60Hz

VAC

1.8

3.6

7.2

14.4

18.0

34.5

69.0

Coil

resistance

Ω±10%

5.3

345

544

2000

8300

Rated coil

power

50/60Hz

2.29/1.98

2.19/1.86

2.26/1.95

2.28/1.97

2.27/1.96

2.37/2.00

2.32/1.96

1) Coil resistance ±12%

All figures are given for coil without pre-energization, at ambient temperature +23°C

04-2011, Rev. 0411

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
