ARS-02-LPB-64-TN-SMCP datasheet, PDF

Datasheet> All Categories > The connector> The connector> ARS-02-LPB-64-TN-SMCP

ARS-02-LPB-64-TN-SMCP: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

ARS-02-LPB-64-TN-SMCP Overview

Board Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

ARS-02-LPB-64-TN-SMCP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.197 inch
subject depth	0.28 inch
body length	3.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	ARS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.461 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	64

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating

Contact material:

Contact plating:

Contact resistance :

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

3 amps

Phosphor bronze

Gold Flash standard

20 milliohms max.

Polyester, UL94V-0

1,000 megohms min.

600VAC for 1 min.

-40° to +105°C

Series

Rows

ARS

Receptacle strip 01=Single row

02=Dual row

03=Single row R/A

04=Dual row R/A

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Options

Contacts

Plating

[blank]=None

Single row: 3-36 TN=Tin

DE=Dual entry

Dual row: 6-72 GD=Gold

BE=Bottom entry

SG=Duplex

SE=Side entry

LPB=7.1mm profile

LPD=7.4mm profile

Special Options

[blank]=None

SM=Surface mount

RT=Retention tails

P=Polarized

PPL=Pick & Place

Pad

Date

02/03/09

02/03/09 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

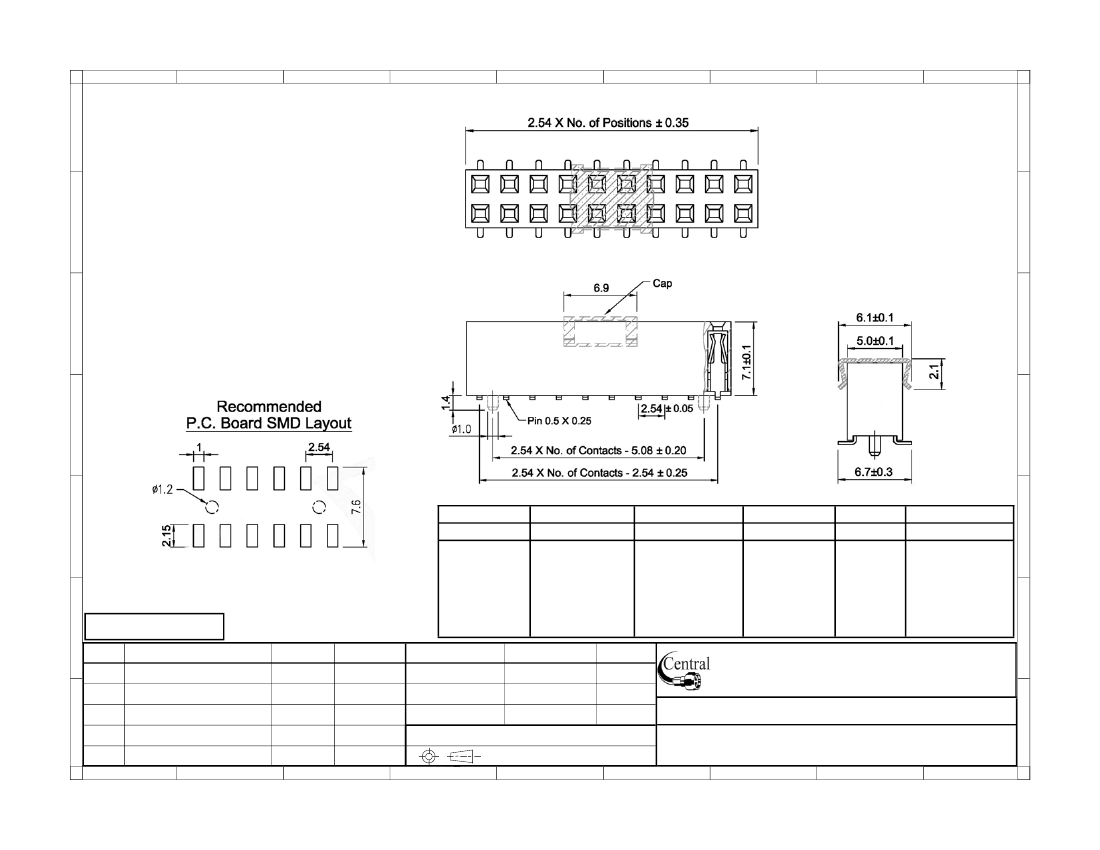

ARS-02-LPB-XX-XX-SMCP

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Female Header, Dual Row, SMD Type
