BFC-A-20-NP-SG10 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BFC-A-20-NP-SG10

BFC-A-20-NP-SG10: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BFC-A-20-NP-SG10 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Black Insulator, Plug

BFC-A-20-NP-SG10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.201 inch
subject depth	0.232 inch
body length	0.991 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BFC-A
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	20

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

1 amp

Phosphor bronze

30 milliohms max.

PBT, glass reinforced,

UL94V-0, black

Insulation resistance: 3,000 megohms min.

Withstanding:

500VAC for 1 min.

Wire:

1.00mm pitch flat ribbon cable

Operating temperature: -40°C to +105°C

Pos.

6.4

8.4

10.4

12.4

14.4

16.4

20.4

22.4

24.4

26.4

30.4

34.4

40.4

44.4

50.4

68.4

4.0

6.0

8.0

10.0

12.0

14.0

18.0

20.0

22.0

24.0

28.0

32.0

38.0

42.0

48.0

66.0

11.17

13.17

15.17

17.17

19.17

21.17

25.17

27.17

29.17

31.17

35.17

39.17

45.17

49.17

55.17

73.17

RoHS compliant

Rev.

Description

Date

Approved

Series

Type

Positions

Polarization

Plating

BFC

2mm flat cable socket A=Slim profile 08-68 (see chart) P=Polarized

TN=Tin

NP=No polarization SGXX=Selective gold

GDXX=Gold

XX=Flash if blank; 05, 10, 15, 30µ” gold

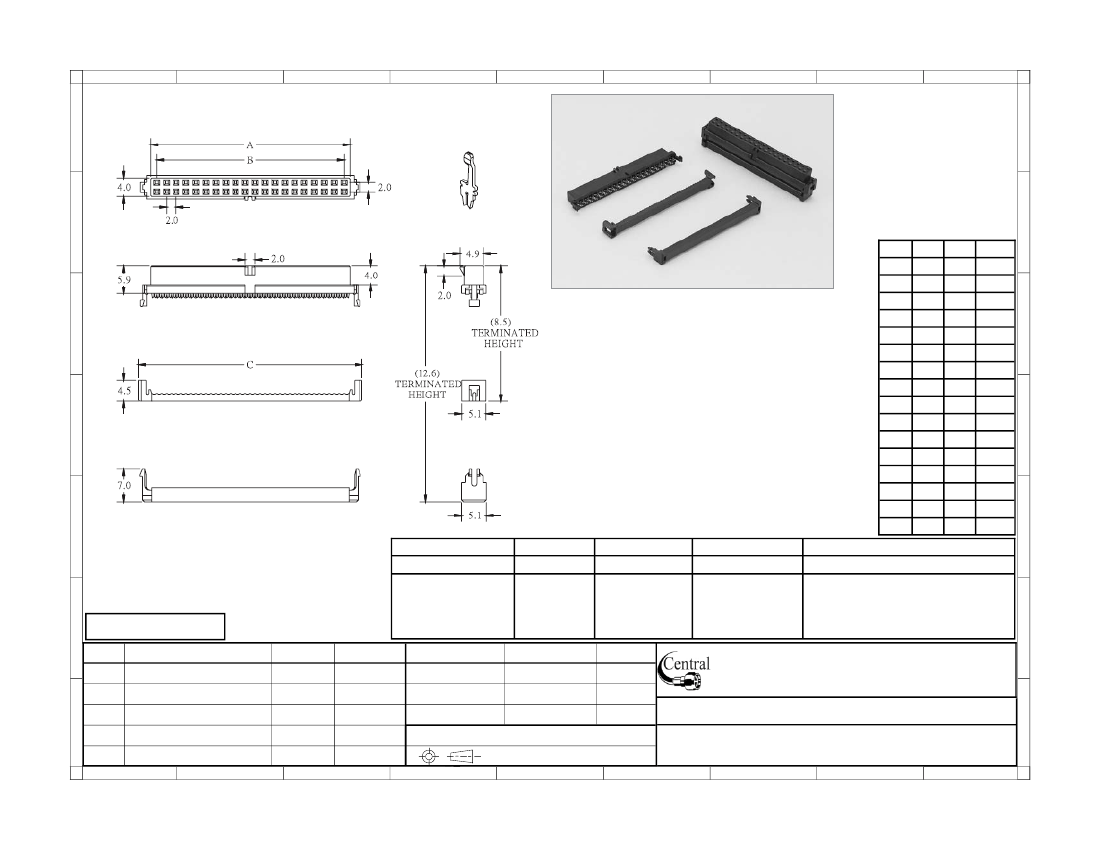

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BFC-A-XX-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Slim profile IDC socket
