CFPC-080-SAZB-25-RUS-GD-TRC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CFPC-080-SAZB-25-RUS-GD-TRC

Preview

CFPC-080-SAZB-25-RUS-GD-TRC: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CFPC-080-SAZB-25-RUS-GD-TRC Overview

Headers and Edge Type Connector,

CFPC-080-SAZB-25-RUS-GD-TRC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

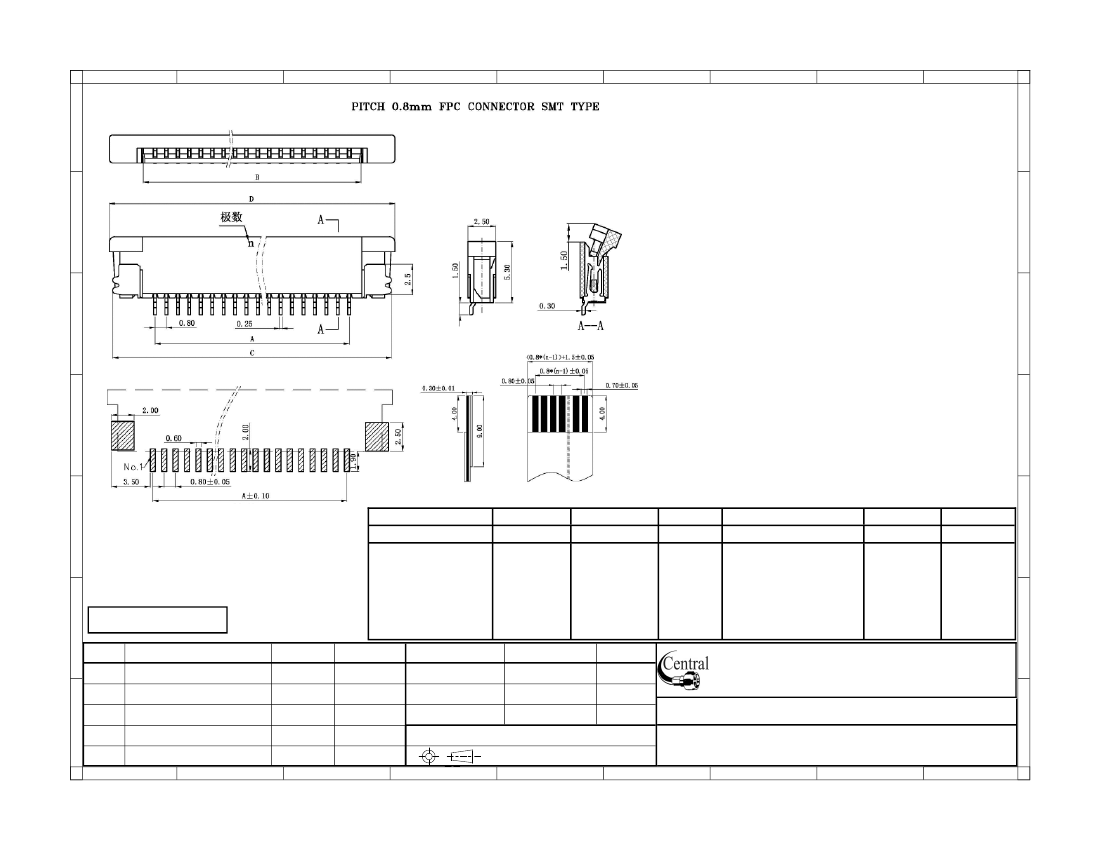

A = 0.8 x (P-1)

B = 0.8 x (P+1)

C = 6.4 + 0.8 x P

D = 7.1 + 0.8 x P

SPECIFICATIONS

Current Rating:

Voltage Rating:

Withstanding:

Contact Resistance:

Insulation Resistance:

Plastic Material:

Lock Material:

Plug Spring:

Operating Temp:

0.4A

50V

200V

≤20m

500M

LCP, UL94V-0

Tinned Phosphor Bronze

Phosphor Bronze, Tin Gold

-20C to +85C

A

B

C

D

E

Series

CFPC

FPC/FFC connector

(Flat Printed Circuit/

Flat Flex Cable)

Zero insertion Force

Pitch (mm)

080

0.8mm

Style

SAZB

(see diagram)

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Positions

Type

XX

XXX

04-60

VX=Vertical

RUX=Upper Contact R/A

RBX=Bottom Contact R/A

RDX=Dual Contact R/A

X: S=SMT

T=Thru Hole

Plating

XX

TN=Tin

GDX=Gold

X=Flash if

blank, 1, 3u”

Option

E

TXX

TRX=Tape

& Reel

TBX=Tube

X=Blank

(None) C for

F

Pick Cap

Date

09/28/’11

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

09/28/’11

09/28/’11 Part No.:

CFPC-080-SAZB-XX-RBS-XX-TXX

Description: FPC/FFC connector, 0.8mm pitch

6

7

8

9

Central Components Manufacturing

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

G

CFPC-080-SAZB-25-RUS-GD-TRC Related Products

	CFPC-080-SAZB-25-RUS-GD-TRC	CFPC-080-SAZB-09-VT-GD-TBC	CFPC-080-SAZB-11-RUT-GD1-TBC	CFPC-080-SAZB-47-RDS-TN-TBC	CFPC-080-SAZB-24-RUT-GD1-TBC	CFPC-080-SAZB-08-RBS-TN-TBC	CFPC-080-SAZB-43-RBS-GD3-TRC	CFPC-080-SAZB-59-RDT-GD1-TBC
Description	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Headers and Edge Type Connector,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	-	-
