CPH-2-C-ST-22-SD-SG15 datasheet, PDF

Datasheet> All Categories > The connector> The connector> CPH-2-C-ST-22-SD-SG15

CPH-2-C-ST-22-SD-SG15: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CPH-2-C-ST-22-SD-SG15 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

CPH-2-C-ST-22-SD-SG15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.067 inch
body length	0.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	CPH-2-X-ST-XX-SD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Voltage rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

1 amp

500VAC

Copper alloy

Tin, or gold

10 milliohms max.

PBT, glass reinforced, UL94V-0

5,000 megohms min

500VAC for 1 min.

-40˚C to 105˚C

2.3

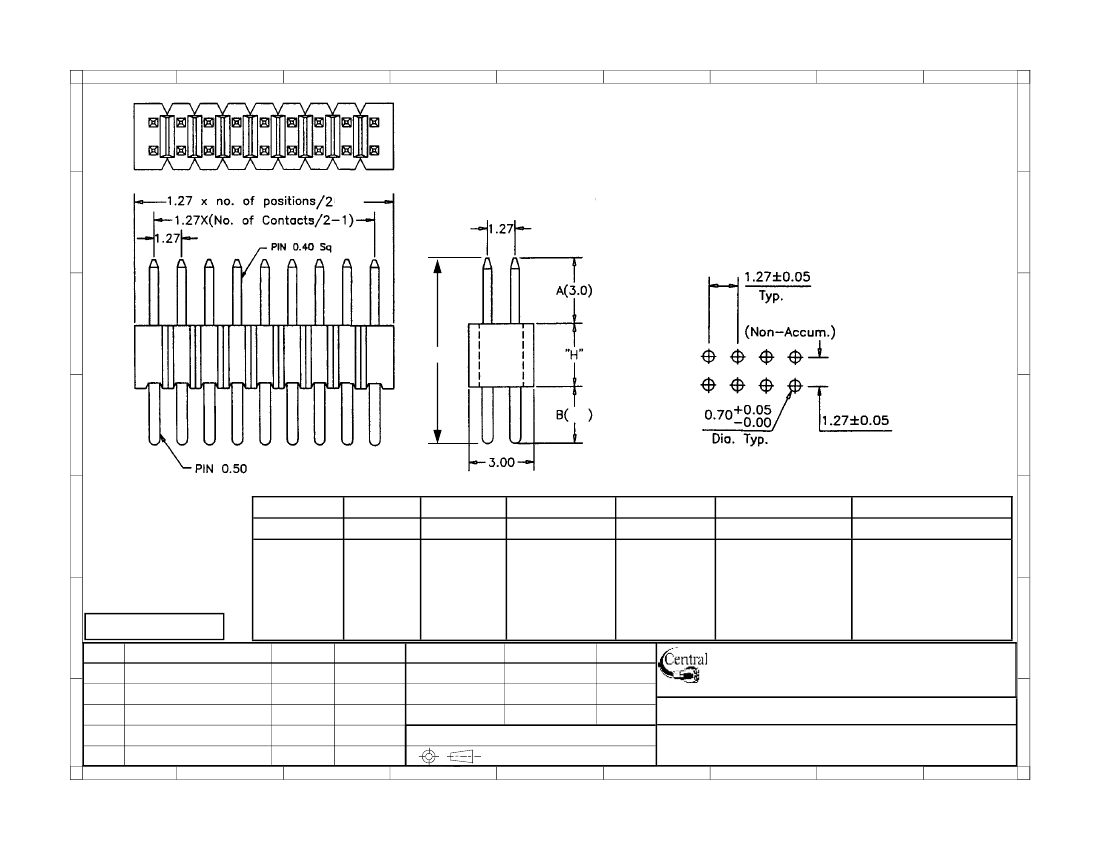

Recommended PCB Layout

Series

No. of Rows Height H (mm)

Type

No. of Pins

Pin Length

SD or CS(A/E)

SD=Standard (3.0mm

mating, 2.3mm tail)

CS=Customer specified

pin length. See diagram

for A and E dimensions

Plating

TN=Tin

SGXX=Duplex

GDXX=Gold

XX=Flash if blank, 03, 05, 10,

15, 30µ”

CPH

RoHS compliant

Rev.

A Dim.

B Dim.

Description

Pin header, DIP 2=Dual rows [blank]=1.50, RA=Right angle

1-40 (single row)

type, .40mm

1=Single row B=1.00,

ST=Straight

2-80 (double row)

square pins

C=1.70*,

SM=Surface mount

D=2.00,

E=2.54*

*Dual row only

Date

Approved

01/11/07 Tom

06/01/07 Tom

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CPH-2-X-ST-XX-SD-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, 0.05” by 0.05” pitch
