LHD-C-44-ST-SL-GD50 datasheet, PDF

Datasheet> All Categories > The connector> The connector> LHD-C-44-ST-SL-GD50

LHD-C-44-ST-SL-GD50: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

LHD-C-44-ST-SL-GD50 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

LHD-C-44-ST-SL-GD50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.22 inch
subject depth	0.327 inch
body length	1.671 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	LHD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact Material:

Insulator Material:

Finish:

Brass

LCP

Gold flash plated over nickel.

RoHS compliant

Rev.

Description

Date

Approved

Dimensions

Circuits

2.54

18.31

8.46

5.08

20.85

11.00

6.35

22.12

12.27

7.62

23.39

13.54

8.89

24.66

14.81

11.43

27.20

17.35

15.24

31.01

21.16

17.78

33.55

23.70

20.32

36.09

26.24

24.13

39.90

30.05

26.67

42.44

37.59

30.48

46.25

36.40

36.83

52.60

42.75

39.37

55.14

45.29

40.64

56.41

46.56

41.91

57.68

47.83

49.53

65.30

55.45

100

62.23

78.00

68.15

Series

Positions

Mounting

Latch Style

Plating

LHD-C

Latch Header See Chart ST=Straight

SL=Short Latch TN=Tin

.05x.05

RA=Right Angle LL=Long Latch SGXX=Selective Gold

NL=No Latch

GDXX=Gold

XX=Flash if blank, 15, 30, 50 u” Gold

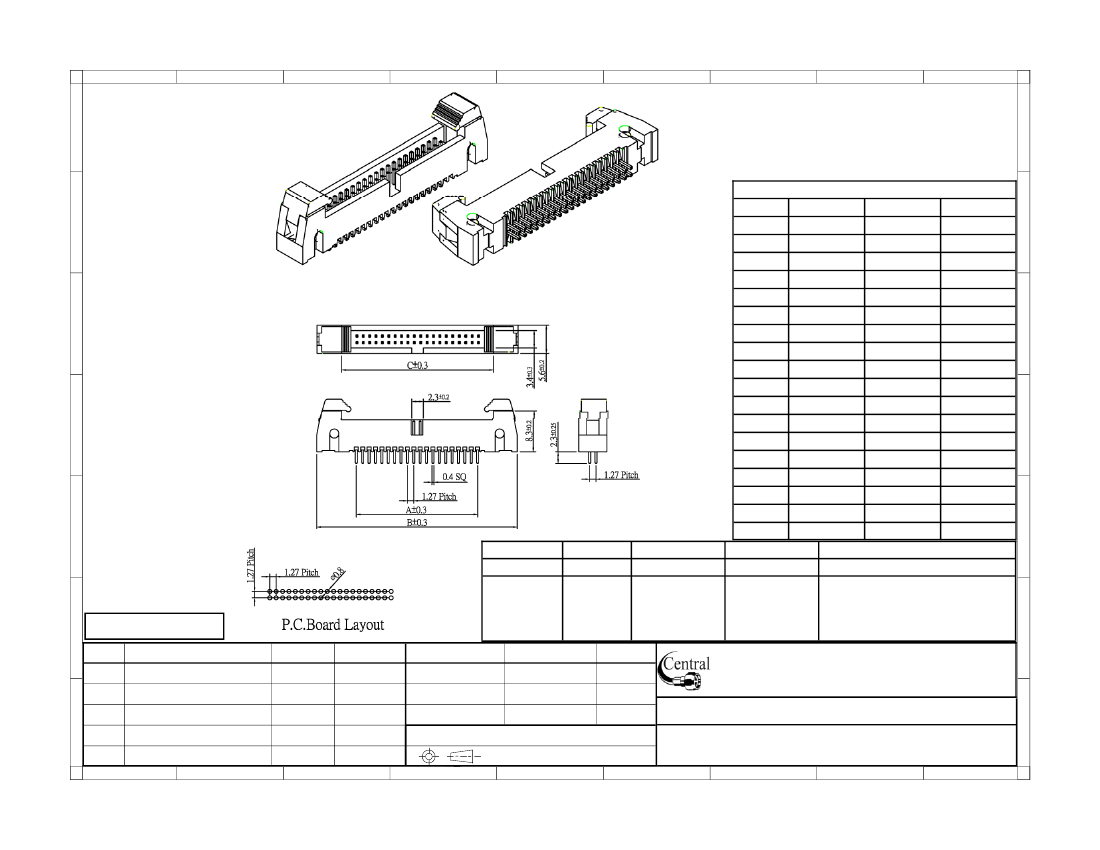

Drawing

Name

Date

Central Components Manufacturing

Approved Howard

05/15/02

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Checked Lizzy

05/15/02

LHD-C-XX-ST-SL-XX

Drawn Tina

05/15/02 Part No.:

0.0 ± 0.35

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Male shrouded latch header,

.05”x.05” (1.27mmx1.27mm) straight
