General Purpose Inductor, 150uH, 10%, 1 Element, RADIAL LEADED
DR1213-151K-UL Parametric
Parameter Name
Attribute value
Maker
3L Electronic Corporation
Reach Compliance Code
compliant
ECCN code
EAR99
DC Resistance
0.14 Ω
Nominal inductance(L)
150 µH
Inductor Applications
RF INDUCTOR
Inductor type
GENERAL PURPOSE INDUCTOR
Manufacturer's serial number
DR1213
Number of functions
1
Number of terminals
2
Maximum operating temperature
80 °C
Minimum operating temperature
-20 °C
Minimum quality factor (at nominal inductance)
20
Maximum rated current
2.1 A
self resonant frequency
2.6 MHz
Shape/Size Description
CYLINDRICAL PACKAGE
shield
YES
special characteristics
Q MEASURED AT 0.796 MHZ
surface mount
NO
Terminal location
RADIAL
Terminal shape
WIRE
Test frequency
0.001 MHz
Tolerance
10%
DR1213-151K-UL Preview
DR SERIES
DR CORE WITH SELF-LEAD DESIGN.
Applications :
．TVs
and Audio equipment.
．Telecommunication
devices.
．Switching
Power Supply.
．Other
noise filter.

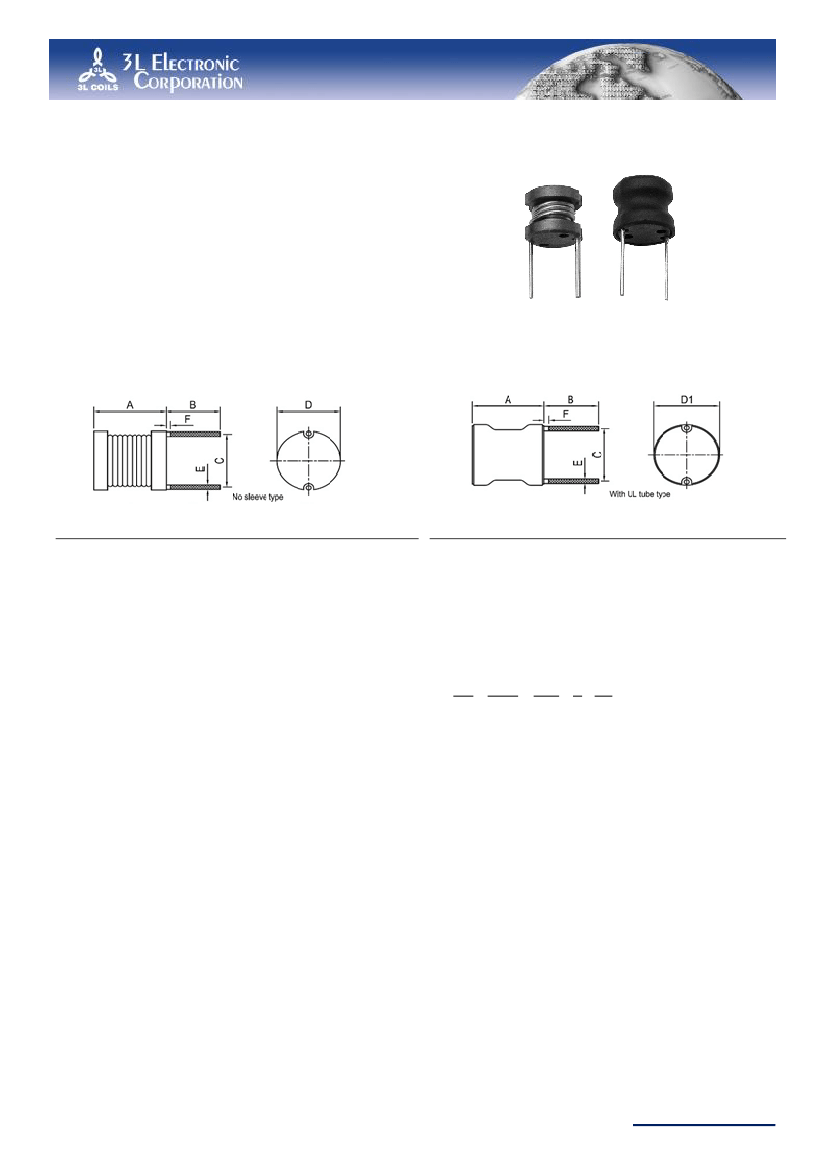

Shape and Dimensions (Dimensions are in mm) :
Item
DR0606
DR0707
DR0807
DR1010
DR1213
A Max.
6.5
7.5
7.5
10.5
15.5
B
5.0±1.0
5.0±1.0
5.0±1.0
10.0±2.0
10.0±2.0
C
±1.0
5.0±1.0
6.0±1.0
6.0±1.0
8.0±1.0
11.0±1.0
D1Max.
7.0
8.0
9.0
11.5
15.5
F
1.5
1.5
1.5
1.5
1.5
D Max(No sleeve type)
6.5
7.5
8.5
11.0
15.0
E
(Refer to specification sheet)
(Refer to specification sheet)
(Refer to specification sheet)
(Refer to specification sheet)
(Refer to specification sheet)
Features :
．Low
cost power inductors.
．Low
inductance with high current.
．Best
for the power supply line applications.
．Covered
with UL tube.
Product Identification :
DR 1010
–
4R7 K - UL
(1)
(2)
(3)
(4) (5)
(1) Type: DR core with self-lead design.
(2) Style: Core OD=10mm; L=10mm.
(3) Inductance:”4R7” for 4.7uH.
(4) Inductance tolerance : K:
±
10%, M:
±
20%.
(5) UL: UL tube,black,125℃;No code no tube.
Characteristics:
．Saturation
Current (Isat): The current when the inductance
becomes 20% lower than its initial value.(Ta=20℃).
(DR1010/DR1213 are 10%)
．Temperature
Rise Current( Irms): The current when
temperature of coil increase up to max.△T=25℃.
(Ta=20℃).
．Operating
temperature ranges: -20 to 80℃.
Lasting. Leaning. Leading
Test equipments:
．L
& Q: HP4285A or HP4284A.
．DCR
: Millil-ohm meter.
．SRF
: HM9461 L-SRF meter or equivalent.
．Electrical
specifications at 25
℃.
3L Electronic Corp.
35.1
Web : http://www.3lcoil.com
l
DR0606 / 0707 / 0807 / 1010/ 1213 series
Part No.
DR0606-1R0M-UL
DR0606-1R5M-UL
DR0606-2R2M-UL
DR0606-3R3M-UL
DR0606-4R7M-UL
DR0707-1R0M-UL
DR0707-1R5M-UL
DR0707-2R2M-UL
DR0707-3R3M-UL
DR0707-4R7M-UL
DR0707-6R8M-UL
DR0707-100K-UL
DR0707-150K-UL
DR0707-220K-UL
DR0807-2R2M-UL
DR0807-3R3M-UL
DR0807-4R7M-UL
DR0807-6R8M-UL
DR0807-100K-UL
DR0807-150K-UL
DR0807-220K-UL
DR1010-3R3M-UL
DR1010-4R7M-UL
DR1010-6R8M-UL
DR1010-100M-UL
DR1010-150K-UL
DR1010-220K-UL
DR1010-330K-UL
DR1010-470K-UL
DR1010-680K-UL
DR1010-101K-UL
DR1213-100M-UL
DR1213-150K-UL
DR1213-220K-UL
DR1213-330K-UL
DR1213-470K-UL
DR1213-680K-UL
DR1213-101K-UL
DR1213-151K-UL
DR1213-221K-UL
DR1213-331K-UL
L
@1KHz
uH
1.0
1.5
2.2
3.3
4.7
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
2.2
3.3
4.7
6.8
10
15
22
3.3
4.7
6.8
10
15
22
33
47
68
100
10
15
22
33
47
68
100
150
220
330
Q
Min.
20
20
20
20
20
10
10
10
10
10
10
20
20
20
10
10
10
10
20
20
20
10
10
10
20
20
20
30
30
20
20
20
20
20
20
20
20
20
20
20
20
Q
Test
Freq.
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
7.96MHz
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
7.96MHz
7.96MHz
7.96MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
796KHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
2.52MHz
796KHz
796KHz
796KHz
796KHz
SRF
Min.
(MHz)
100
70
60
50
40
70
56
45
36
29
24
19
15
12
60
38
30
24
19
15
12
36
28
18
16
12
9.5
7.0
5.8
4.7
3.8
19
12
7.6
6.9
5.6
4.4
3.3
2.6
2.2
1.8
DCR
(Ω)
Max.
0.008
0.009
0.013
0.018
0.024
0.006
0.008
0.011
0.018
0.022
0.028
0.043
0.056
0.086
0.011
0.013
0.017
0.023
0.031
0.042
0.070
0.010
0.015
0.016
0.025
0.029
0.040
0.062
0.075
0.13
0.16
0.023
0.028
0.035
0.043
0.052
0.068
0.097
0.140
0.200
0.300
Rated current (A)
Max
I sat
I rms
6.0
5.0
4.0
3.2
2.7
6.6
5.4
4.0
3.6
3.1
2.5
2.1
1.7
1.4
5.5
3.8
3.7
2.8
2.5
2.0
1.6
8.8
7.2
6.1
5.0
4.2
3.4
2.8
2.3
1.9
1.6
8.0
6.5
5.5
4.5
3.6
3.1
2.6
2.1
1.7
1.4
4.3
3.7
3.2
2.7
2.4
5.0
4.3
3.7
2.9
2.6
2.3
1.9
1.6
1.3
4.0
3.4
3.0
2.6
2.2
1.9
1.5
5.9
4.8
4.6
3.7
3.4
2.9
2.3
2.1
1.6
1.4
5.1
4.5
4.2
3.7
3.4
3.0
2.5
2.1
1.7
1.4
Size E
Ref.
0.60
0.55
0.55
0.50
0.50
0.7
0.7
0.7
0.55
0.50
0.50
0.45
0.45
0.40
0.70
0.70
0.60
0.55
0.55
0.50
0.45
0.80
0.80
0.80
0.80
0.80
0.70
0.60
0.60
0.50
0.50
0.90
0.90
0.80
0.70
0.70
0.70
0.60
0.55
0.50
0.45
