A021-1531-230-Z: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size420KB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A021-1531-230-Z Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

A021-1531-230-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.496 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A02
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

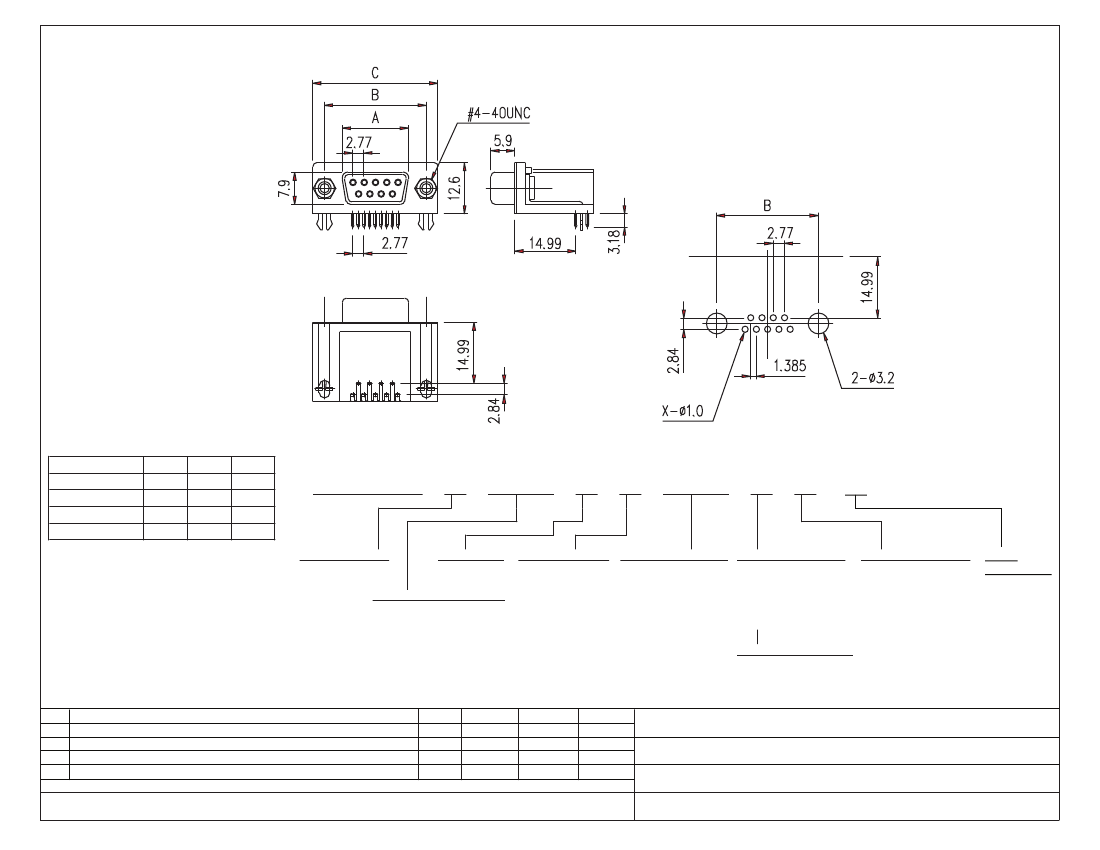

DIMENSION(mm)

CONTACTS

16.33

24.66

30.68

35.60

24.99

33.32

38.79

44.48

30.81

39.14

44.81

50.30

HOW TO ORDER:

CONTACT TYPE:

FOOTPRINT:

1 - FEMALE

3 - 14.98mm

CURRENT: 5A

2 - MALE

CONTACT RESISTANCE: < 30m

Ω

NUMBER OF CONTACTS:

INSULATOR RESISTANCE: > 1000M

Ω

SEE CONTACT

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN. NUMBER ABOVE

OPERATING TEMPERATURE: -55° C TO +105° C

ELECTRICAL:

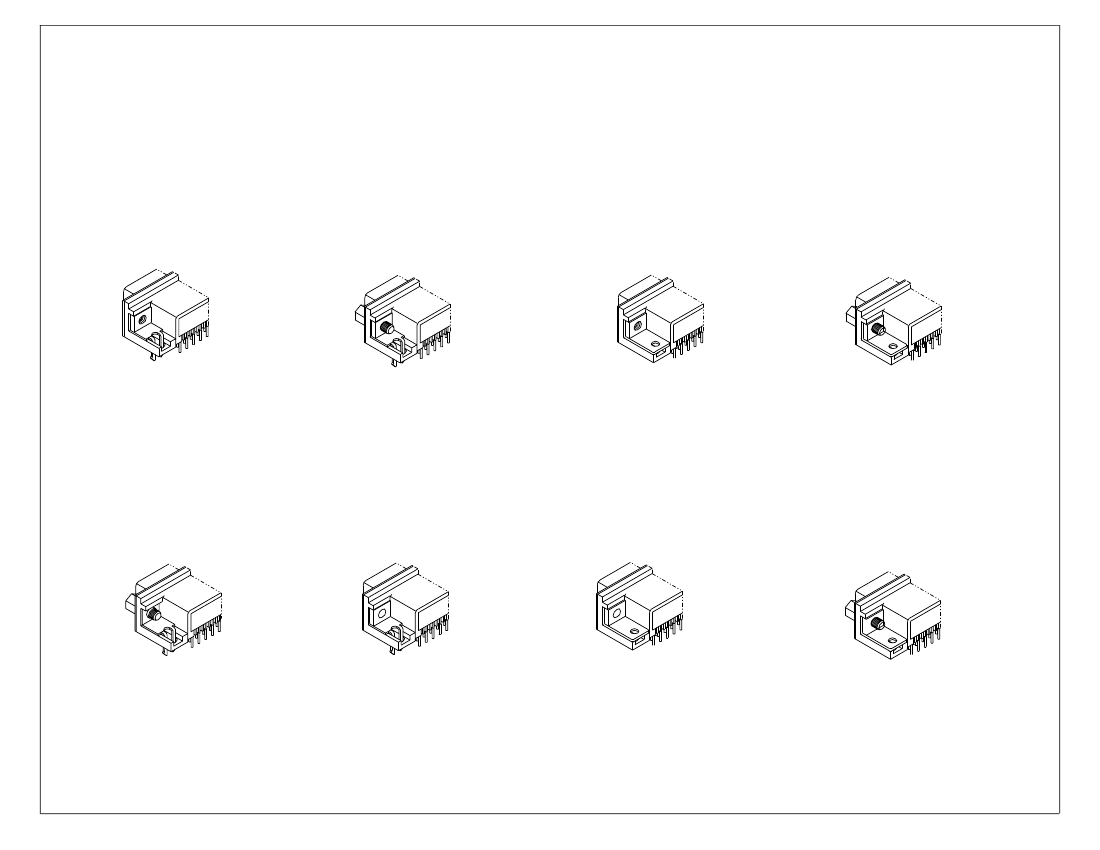

SHELL PLATING: MOUNTING OPTION:

1 - TIN PLATED

SEE PAGE 2

2 - ZINC PLATED

3 - ALL PLASTIC

4 - NICKLE PLATED

PLATING OVERALL:

0 - FULL Au FLASH

4 - 10u" Au

5 - 15u" Au

7 - 30u" Au

8 - FULL TIN

INSULATOR COLOR:

BLANK - BLACK

1 - WHITE

2 - BLUE

3 - GRAY

RoHS

COMPLIANT

MATERIAL:

CONTACT: COPPER ALLOY

INSULATOR: PBT & 30% GLASS FIBER (UL94V-0)

Rev

Issued

A Revised for RoHS Compliance

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

05-26-02

07/21/08

SELECTIVE PLATING:

1 - Au FLASH CONTACT AREA/TIN TAIL

9 - 15u" Au CONTACT AREA/TIN TAIL

A - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

D-SUB CONNECTOR, RIGHT ANGLE, 14.98mm FOOTPRINT

TOL. DEC.

.X +/-0.25

.XX +/- 0.10

.XXX +/- 0.05

ANGLE +/-2°

UNIT: mm

SERIES: A02

Pg: 1
