3453-3012: DescriptionBoard Connector, 12 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3453-3012 Overview

Board Connector, 12 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug

3453-3012 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.295 inch
subject depth	0.335 inch
body length	0.42 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3453
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

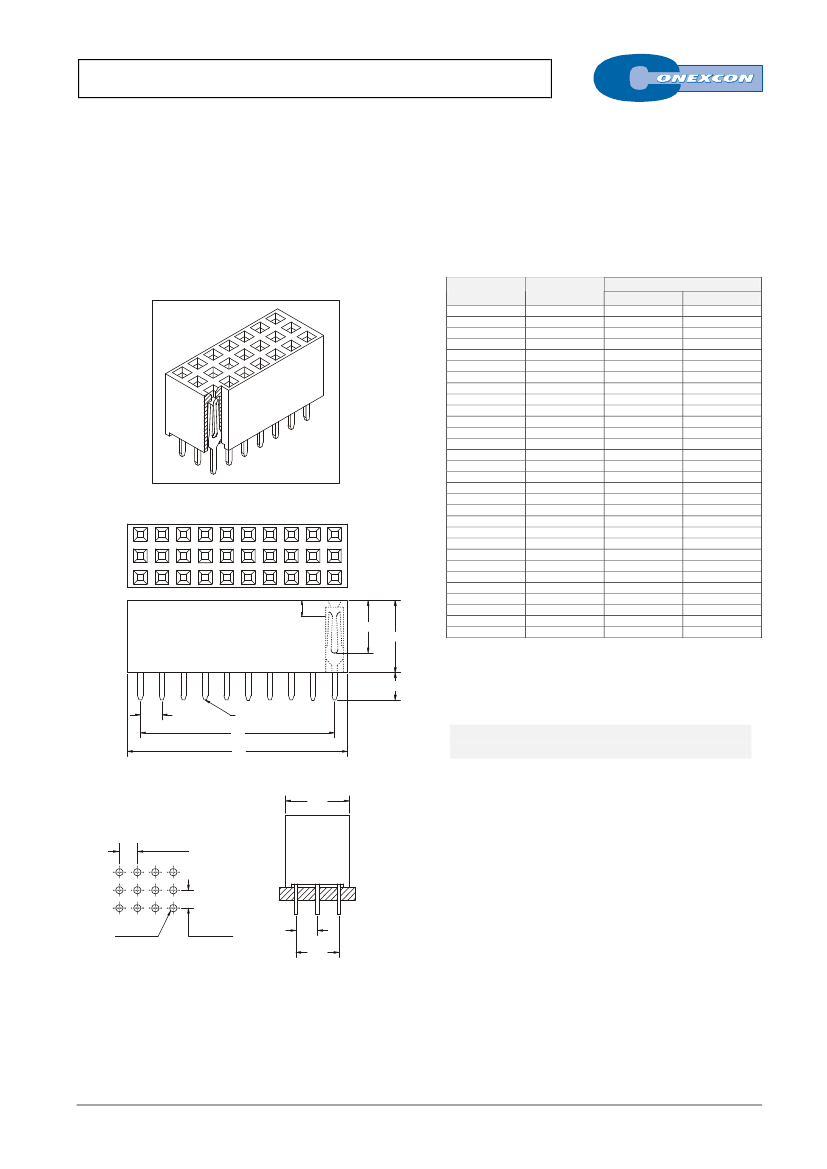

2.54mm TRIPLE ROW FEMALE HEADER

3453 SERIES.

2.54mm(0.100”). For PCB Solder

Features



Available in 9 through 96 circuits

Insulator Material: Nylon 6-T UL 94V-0

Contact Material: Phosphor bronze

Different plating options are available



For standard profile application 8.50mm height

Accept 0.64mm square pin

Standoffs facilitate post soldering clean

For other options consult the Sales Office

Ordering and Dimensional information

Dimensions

A

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

B

8,12(0,320)

10,66(0,420)

13,20(0,520)

15,74(0,620)

18,28(0,720)

20,82(0,820)

23,36(0,920)

25,90(1,020)

28,44(1,120)

30,98(1,220)

33,52(1,320)

36,06(1,420)

38,60(1,520)

41,14(1,620)

43,68(1,720)

46,22(1,820)

48,76(1,920)

51,30(2,020)

53,84(2,120)

56,38(2,220)

58,92(2,320)

61,46(2,420)

64,00(2,520)

66,54(2,620)

69,08(2,720)

71,62(2,820)

74,16(2,920)

76,70(3,020)

79,24(3,120)

81,78(3,220)

Dimensional Information

Circuit Size

09

12

15

18

21

24

27

30

33

36

39

42

45

48

51

54

57

60

63

66

69

72

75

78

81

84

87

90

93

96

Part Number

3453-T009

3453-T012

3453-T015

3453-T018

3453-T021

3453-T024

3453-T027

3453-T030

3453-T033

3453-T036

3453-T039

3453-T042

3453-T045

3453-T048

3453-T051

3453-T054

3453-T057

3453-T060

3453-T063

3453-T066

3453-T069

3453-T072

3453-T075

3453-T078

3453-T081

3453-T084

3453-T087

3453-T090

3453-T093

3453-T096

1.95

6.2±0.2

8.50

3.20

T = Contact Plating

2.54

PIN 0.65X0.4

A

B



T =

2.

Tin plated.

T =

3.

Gold flash over 50µ” nickel

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

7.50

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

Ø

1.02±0.05

.040±.002

2.54±0.05

.100±.002

2.54

5.08

FULL LINE CATALOGUE

E-XX
