7637-7641 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7637-7641

7637-7641: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size268KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7637-7641 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

7637-7641 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.5 inch
subject depth	0.63 inch
body length	0.606 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7637
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

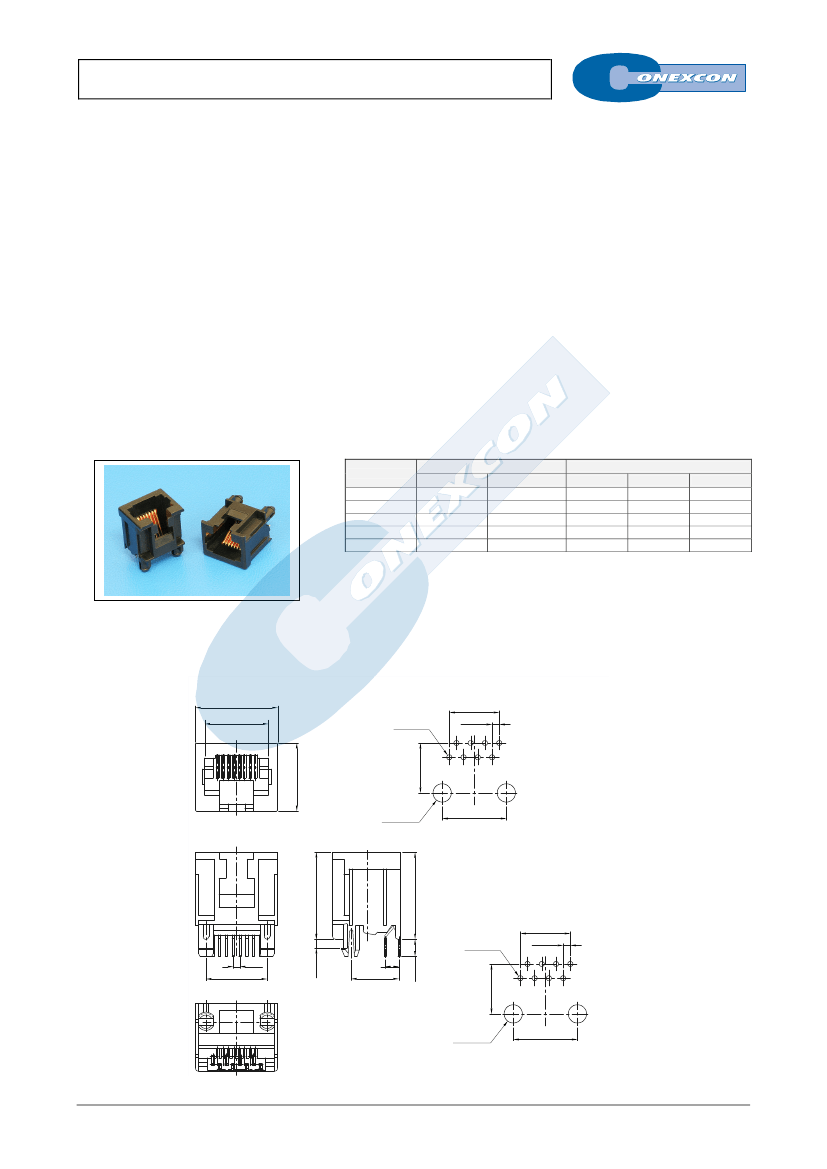

TOP ENTRY PCB JACK FCC-68

7637 SERIES.

Vertical PCB jack.

General Features

Electrical Features



Available in 6/4, 6/6 and 8/8 circuits

Standard telephone jack FCC-68

16.00 mm. height

Accept standard plugs FCC-68 type

Selective gold plating with different finish

Bifurcated plastic foot print. Available Cat. 5e

With / Without panel stop



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm thickness phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Part Number

W/O Panel Stop

7637 –

T640

7637 –

T660

7637 –

T880

7637 –

T883

7637 –

T884

With Panel Stop

7637 –

T641

7637 –

T661

7637 –

T881

7637 –

T882

7637 –

T885

17.80 (0.700)

Dimensions

11.43 (0.450)

3.81 (0.150)

6.35 (0.250)

8.89 (0.350)

Circuits

6/4

6/6

8/8

8/8 (Polariz.)

8/8 cat.

T = Contact Plating



CAT. 5 PCB LAYOUT

(Top View)

8-ø0.90

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

50µ” gold over 50µ” nickel

15.40

11.89 (8P)

9.85 (6P)

12 345 67 8

8.89

1.27

8.89

12.70

2-ø3.25

11.43

16.00

STANDARD PCB LAYOUT

(Top View)

8-ø0.90

8.89

1.27

1 .70

2.54

8.89

3 .25

1.27

11.43

8.89

2-ø3.25

11.43

E-XX
