Preview

8021-3093: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Receptacle; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8021-3093 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Receptacle

8021-3093 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.496 inch
subject depth	0.425 inch
body length	1.217 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8021
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .138-.163
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	METAL
Termination type	IDC
Total number of contacts	9
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

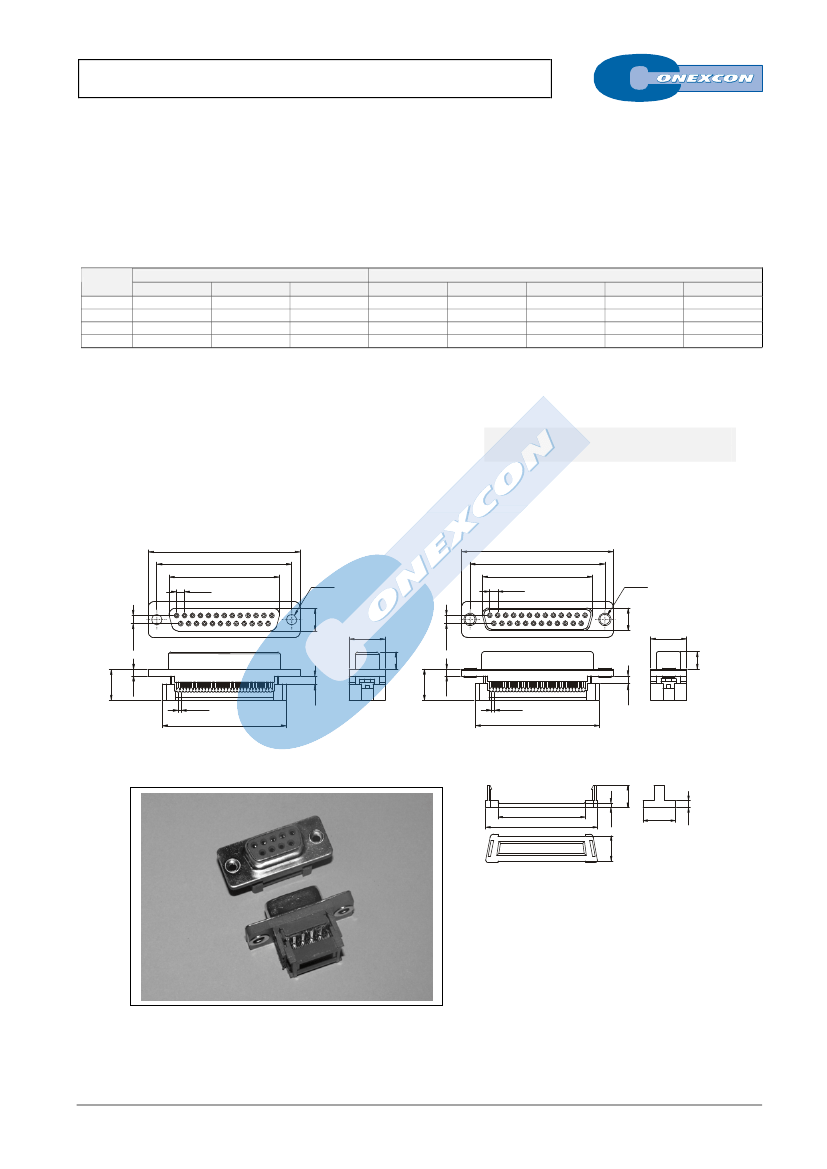

8021-3093 Preview

INSUL. DISPLACEMENT D-SUB RECEPTACLE

8021 SERIES.

Insulation Displacement Contact D-Sub Receptacle

Features



Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor Bronze

Optional flush insert



Applicable wire: AWG 26 to 28

Shell available in plastic or nickel plated metal

For other options consult the Sales Office

Dimensional Information

Circuit Size

09

15

25

37

Part Number

Plastic Type

8021-

T091

8021-

T151

8021-

T251

8021-

T371

Metal Shell + Nut

8021-

T092

8021-

T152

8021-

T252

8021-

T372

Metal Shell

8021-

T093

8021-

T153

8021-

T253

8021-

T373

A

16.33 (0.643)

24.66 (0.971)

38.38 (1.511)

54.84 (2.159)

Ordering and Dimensional Information

Dimensions

B

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500

C

30.90 (1.217)

39.20 (1.543)

53.10 (2.091)

69.50 (2.736)

D

21.80 (0.858)

29.60 (1.165)

43.30 (1.705)

59.90 (2.358)

E

12.08 (0.476)

19.70 (0.776)

32.40 (1.276)

47.72 (1.879)

(Note:

For other Circuit Size consult the Sales Office)

T = Contact Plating



Pastic Type

C

B

A

2.77

.109

3.50

.138

T =

2.

Tin plated.

T =

3.

Gold flash over 50µ" nickel.

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

Metal Shell

C

B

A

2.77

.109

3.50

.138

2.84

.112

.496

6.0

.236

2.84

.112

12.60

7.90

.311

7.90

.311

12.60

.496

6.0

.236

10.8

.425

10.8

.425

2.40

.094

2.40

.094

2.70

.106

1.27

.050

D

1.27

.050

D

Strain Relief

8.52

E

D

.335

2.70

.106

2.00

.079

12.60

.496

FULL LINE CATALOGUE

11.20

.441

3.10

.122

H-XX
