SFW-D
Dense Wavelength Division Multiplexer (DWDM)
Description:
SFW-D series dense wavelength division multiplexer and demultiplexer (DWDM) modules are
reliable solutions to multiservice applications. They multiply the capacity of existing singlemode fibers,
based on 100 or 200 GHz channel spacing. The SFW-D are available in a variety of packaging options
for standard configurations of 4, 8, 16, 32 and 40 channels. Custom devices can be configured to
meet customer demands concerning channel counts, wavelength plan and packaging requirements.
Features:
•
•
•
•
•
•
Wide channel bandwidth
High adjacent channel isolation
Low polarization dependent loss
Low chromatic dispersion
Customer solutions
Compact size
Applications:
•
•
•
Metro and long haul mux/demux
OADM network nodes
Original equipment manufacturer (OEM) applications
Technical specifications:
DWDM 100 Ghz
Center wavelengths refer to ITU 100 GHz grid specification
DWDM 4
30 (30, 29, 28, 27): 1553.33, 1554.13, 1554.94, 1555.75 nm
DWDM 6
31 (31, 30, 29, 28, 27, 26): 1552.52, 1553.33, 1554.13, 1554.94, 1555.75, 1556.55 nm
DWDM 8 / 16 / 32 / 40
Add/Drop
On request
Feature
Channel spacing, GHz
Pass bandwidth, nm
Pass band flatness, dB
Channel number
Insertion Loss, dB (typ)
Insertion Loss, dB (max)
Channel uniformity, dB
PMD, ps
PDL, dB
Isolation – adjacent channel, dB
Isolation – non adjacent channel, dB
Return loss
Directivity
Operating temperature*, °C
Storage temperature*, °C
*) Conditioned by the cable type
2
1.4
1.8
≤0.5
≤0.10
≤0.10
4
1.6
2.0
≤1.0
≤0.10
≤0.15
Specification
100
> 0.25
0.5
8
16
2.6
3.8
3.2
4.5
≤1.0
≤1.0
≤0.10
≤0.15
≤0.20
≤0.25
≥25
dB
≥45
dB
≥45
dB
≥50
dB
-5 to +65
-40 to +85
32
4.8
5.5
≤1.0
≤0.15
≤0.30
40
5.2
6.0
≤1.0
≤0.15
≤0.30
ACT_01-05_EN
02/06/2008
is registered trademark of OPTOKON Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
OPTOKON Co., Ltd. reserves the right to make changes, without notice, to the products described in this document, in the interest of improving design, operational function and/or reliability.
OPTOKON Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, WWW.OPTOKON.COM, INFO@OPTOKON.CZ
-1-
FIBER OPTIC TECHNOLOGY
CALIBRATION LABORATORY
Ordering Code:
SFW - DX-XX -
DX
Channel spacing
D1
100 GHz
On request:
D2
200 Ghz
4M
4D
6M
6D
8M
8D
AD
XX
Type
4 channels
4 channels
6 channels
6 channels
8 channels
8 channels
Add/Drop
mux
demux
mux
demux
mux
demux
XX
- XXX -
AAA
AAA
– input and output connectors
Standard connector types:
Code
Description
SPC
FC/SPC
UPC
FC/UPC
NPC
FC/APC (2.05 standard)
SSC
SC/SPC
USC
SC/USC
NSC
SC/APC
SE2
LSH (E2000)/SPC
NE2S
LSH (E2000)/APC standard
NE2P
LSH (E2000)/APC premium
SLC
LC/SPC
ULC
LC/UPC
NLC
LC/APC
SSL
ST/SPC
NC
no connectors
Note:
standard cable length = 1 m
Number of first channel according to ITU Grid
or on request
package version I (basic type)
CM5
Cable type, metal box
FM5
Fiber type, metal box
package version II (optional)
CAPM
OPTOKON cassette (up to 6 channels)
CAPD
OPTOKON double cassette (8 channels)
RM
Rack mounted unit (MCNP-1U)
ITU Grid Channels (100 GHz Spacing)
Channel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Frequency (THz)
190,100
190,200
190,300
190,400
190,500
190,600
190,700
190,800
190,900
191,000
191,100
191,200
191,300
191,400
191,500
191,600
191,700
191,800
191,900
192,000
192,100
192,200
192,300
192,400
192,500
Wavelength (nm)
1577.03
1576.20
1575.37
1574.54
1573.71
1572.89
1572.06
1571.24
1570.42
1569.59
1568.77
1567.95
1567.13
1566.31
1565.50
1564.68
1563.86
1563.05
1562.23
1561.42
1560.61
1559.79
1558.98
1558.17
1557.36
Channel
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Frequency (THz)
192,600
192,700
192,800
192,900
193,000
193,100
193,200
193,300
193,400
193,500
193,600
193,700
193,800
193,900
194,000
194,100
194,200
194,300
194,400
194,500
194,600
194,700
194,800
194,900
195,000
Wavelength (nm)
1556.55
1555.75
1554.94
1554.13
1553.33
1552.52
1551.72
1550.92
1550.12
1549.32
1548.51
1547.72
1546.92
1546.12
1545.32
1544.53
1543.73
1542.94
1542.14
1541.35
1540.56
1539.77
1538.98
1538.19
1537.40
Channel
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Frequency (THz)
195,100
195,200
195,300
195,400
195,500
195,600
195,700
195,800
195,900
196,000
196,100
196,200
196,300
196,400
196,500
196,600
196,700
196,800
196,900
197,000
197,100
197,200
197,300
Wavelength (nm)
1536.61
1535.82
1535.04
1534.25
1533.47
1532.68
1531.90
1531.12
1530.33
1529.55
1528.77
1527.99
1527.22
1526.44
1525.66
1524.89
1524.11
1523.34
1522.56
1521.79
1521.02
1520.25
1519.48

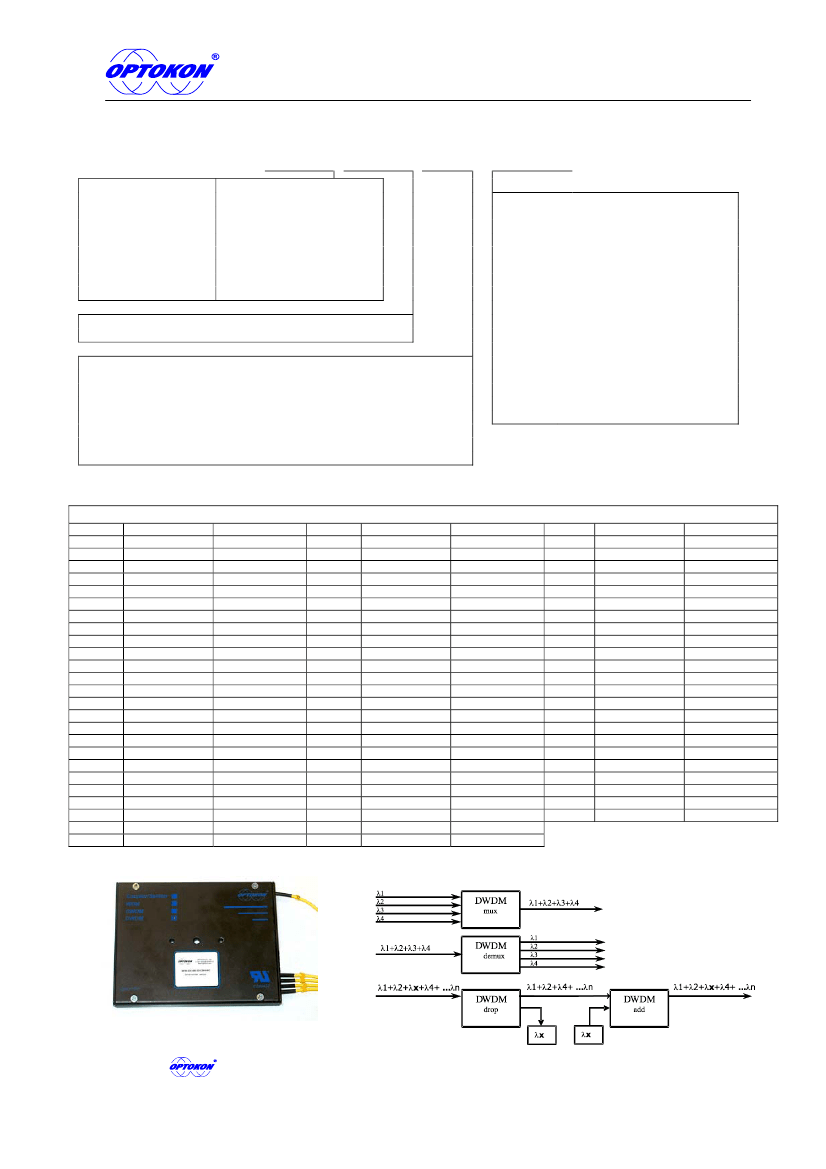

Packaging variants:
Block diagram of typical applications:
SFW-D2 4M-30-CM5-NC
ACT_01-05_EN
02/06/2008
is registered trademark of OPTOKON Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
OPTOKON Co., Ltd. reserves the right to make changes, without notice, to the products described in this document, in the interest of improving design, operational function and/or reliability.
OPTOKON Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, WWW.OPTOKON.COM, INFO@OPTOKON.CZ
