6806-26-B-30-0 datasheet, PDF - EEWORLD Datasheet

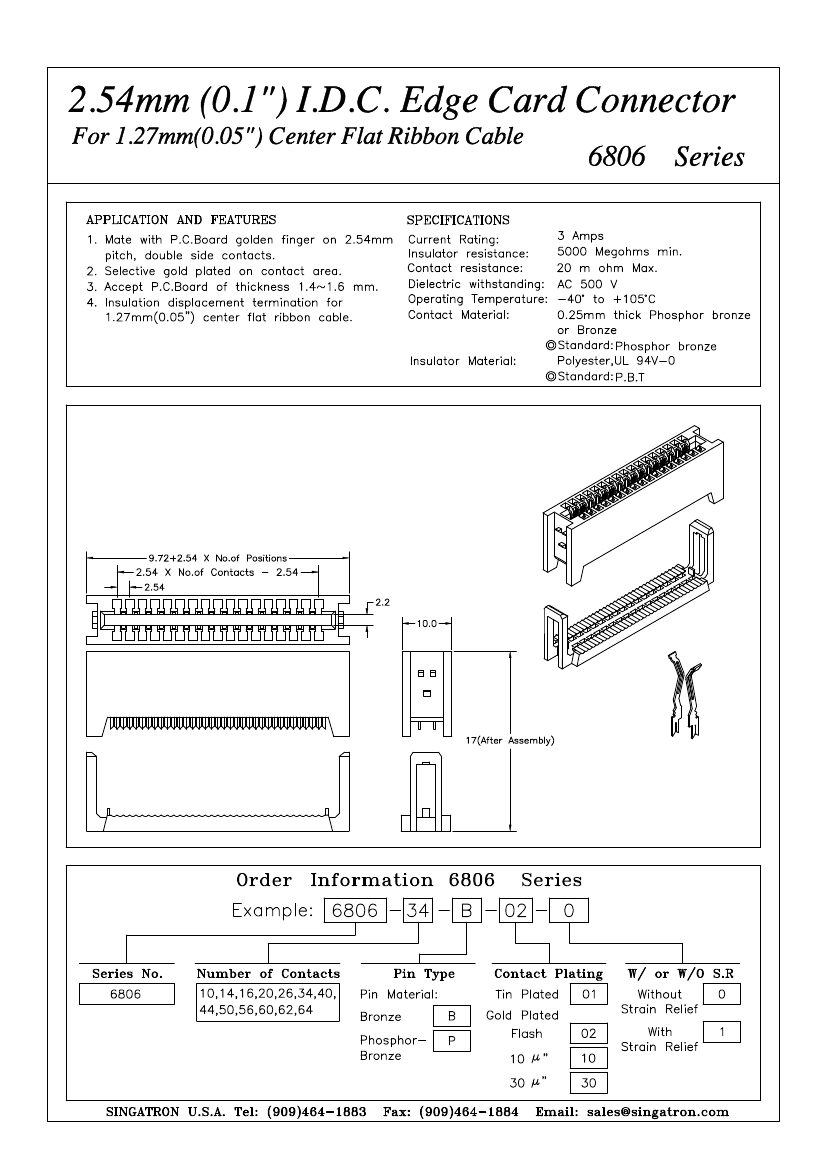

6806-26-B-30-0: DescriptionCard Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

6806-26-B-30-0 Overview

Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	W/O STRAIN RELIEF
body width	0.394 inch
subject depth	0.669 inch
body length	1.683 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	6806
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	26
