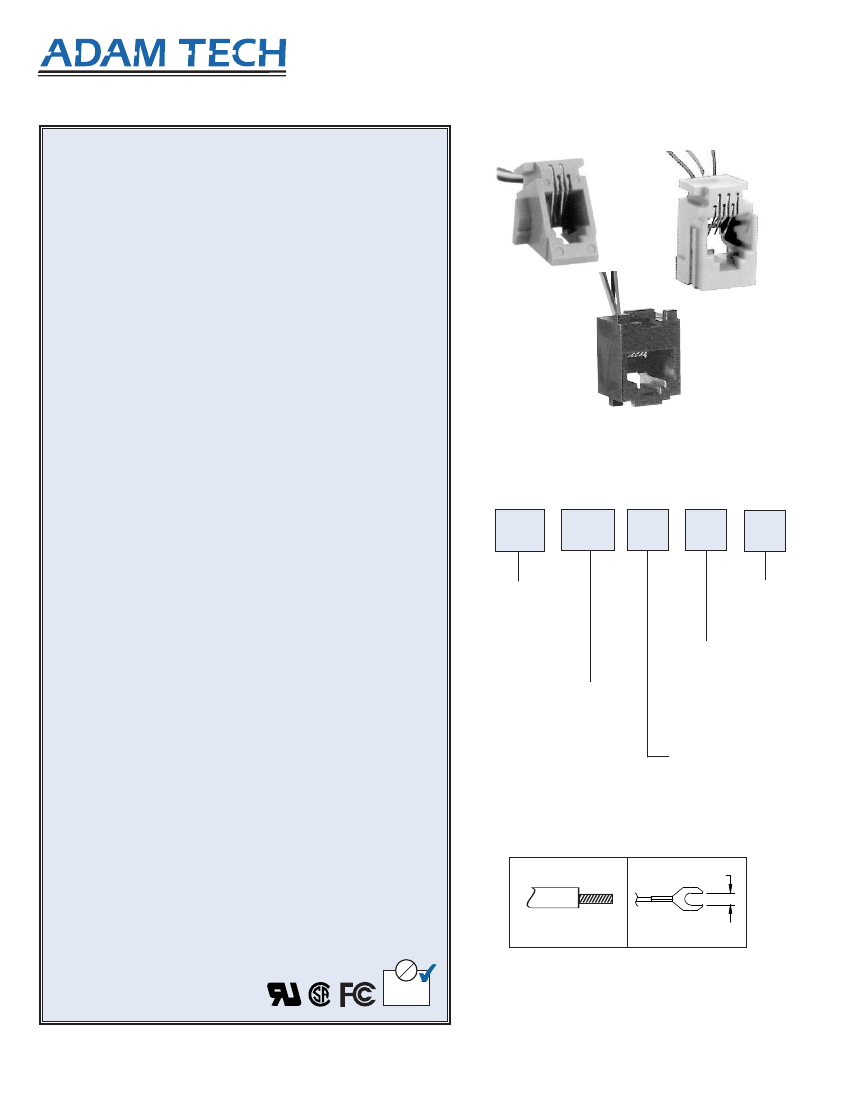

MODULAR TELEPHONE JACKS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech MTJP Series Wire Leaded Telephone Handset and
Panel Jacks are conveniently prepared with wire leads ready for final
assembly. This series has a multitude of housing shapes to fit many
specific applications. They are offered in 4, 6 & 8 positions with
choice of Stripped and Tinned leads or leads with Spade Terminals,
Adam Tech Jacks are UL and CSA approved and meet all required
FCC rules and regulations.
FEATURES:
UL & CSA approved
FCC compliant to No. 47 CFR part 68
Prepared for Final Assembly
4P, 6P and 8P versions
Custom Jacks available
MATING PLUGS:
All telephone line cords manufactured with telephone plugs
SPECIFICATIONS:
Material:
Insulator: ABS, (Nylon 66 optional), rated UL94V-0
Insulator Colors: Medium gray or black
Contacts: Phosphor Bronze
Wires: 26 Awg, UL-1061, 80°C, VW-1, 300V.
Contact Plating:
Gold Flash over Nickel underplate on contact area.
Electrical:
Operating voltage: 150V AC max.
Current rating: 1.5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 4 Contacts: 500g, 6 contacts 750g
8 contacts: 900g, 10 contacts: 1000g
Durability: 500 Cycles
Temperature Rating:
Operating temperature: -40°C to +125°C
PACKAGING:
Anti-ESD plastic bags
APPROVALS AND CERTIFICATIONS:
UL Recognized E224049
WIRE LEADED JACKS
MTJP SERIES
ORDERING INFORMATION
WIRE LEADED JACKS
MTJP
623K6
2
A1
2
SERIES INDICATOR
MTJP = Wire Leaded
Telephone Jack
HOUSING COLOR
1
= Black
2
= Medium Gray
WIRE LEAD TYPE
A1
= 7" Wire leads,
stripped 1/4" and tinned
A2
= 7" Wire leads,
with spade terminal

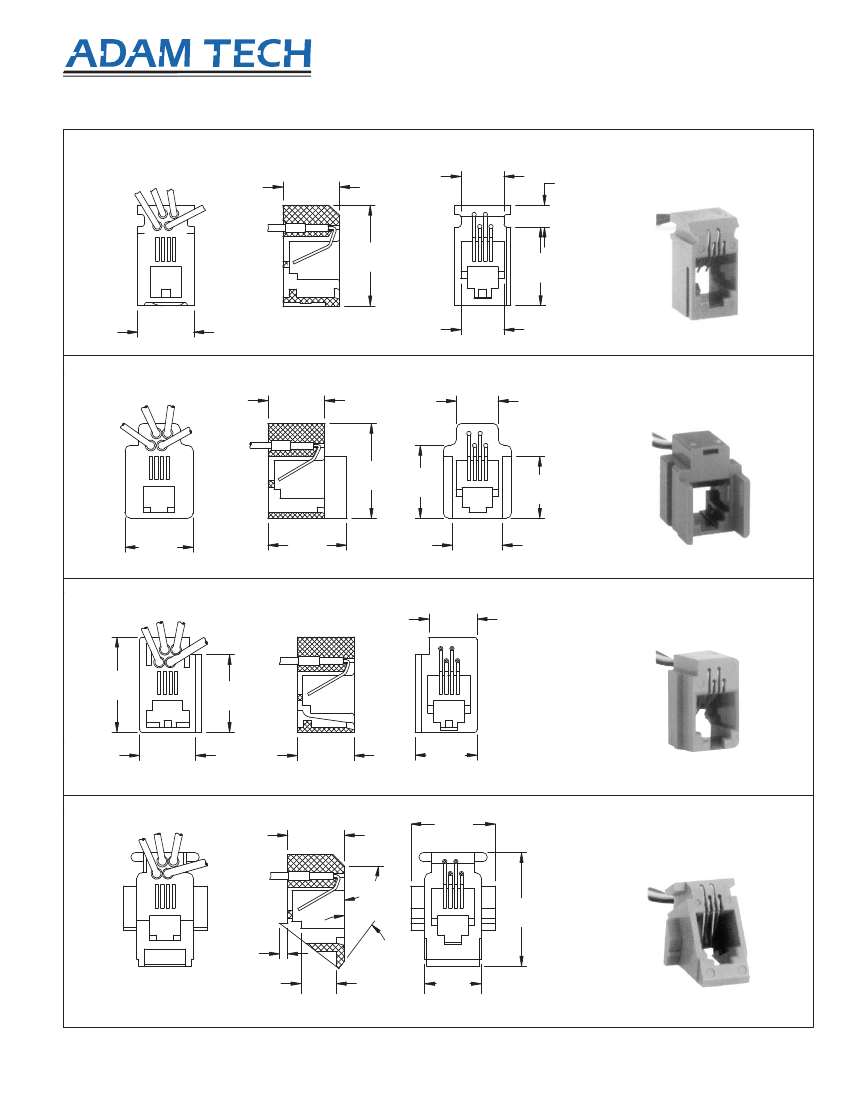

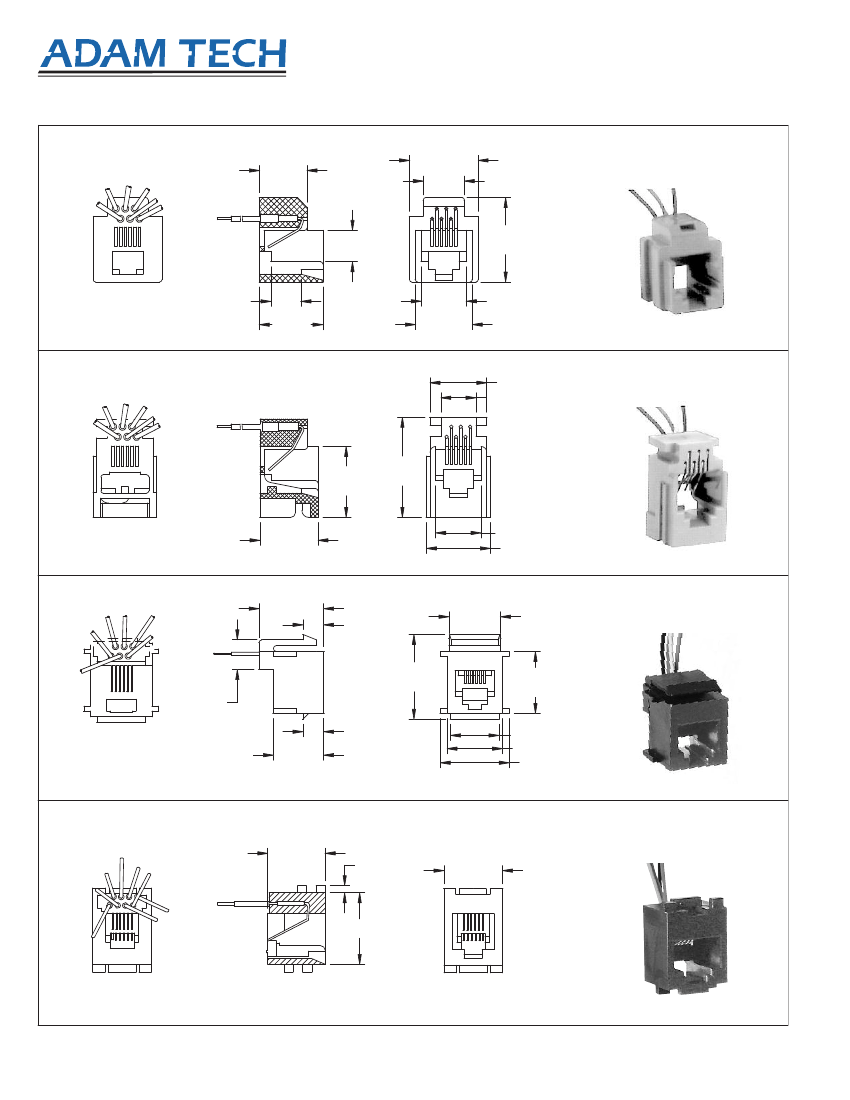

HOUSING TYPE
616B, 616E, 616L,
616M, 616P, 616W,
623K4, 623K6,
623P4, 623P6,
623T4, 623T6,
648K4, 648K6,
641
CONTACT PLATING
X = Gold Flash
0 = 15 µin. gold
1 = 30 µin. gold
2 = 50 µin. gold
Wire Lead Options
.135
[3.43]
Stripped & Tinned
Spade Terminal
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/
95 / EC
RoHS
COMPLIANT
44
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
