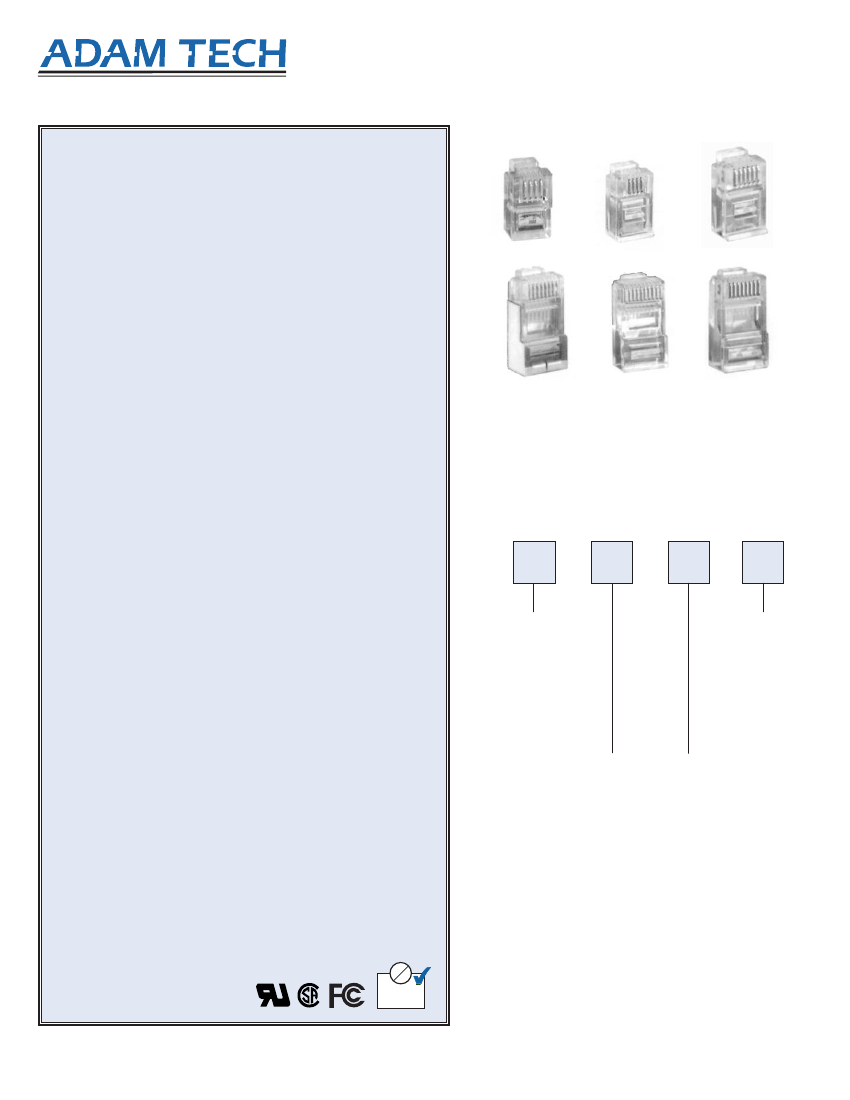

MODULAR TELEPHONE PLUGS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech MTP series Modular Telephone Plugs are manufactured
to terminate flat oval or round telephone cord to REA and Cat. 5
EIA/TIA specifications. Our double strain relief design, molded in
polycarbonate, is manufactured with contacts pre-loaded in a variety
of sizes and options including shielding and specific contacts for flat
or round cable. Adam Tech is a major supplier of telephone line
cords to the telecommunications industry.
FEATURES:
Preassembled Contacts
REA Compliant Terminations
Cat. 5 and 5E available
Contacts for Flat of Round wire
Short or Long body choices
Shielded versions
MATING TELEPHONE JACKS:
Adam Tech modular telephone jack series and all industry standard
telephone Jacks.
SPECIFICATIONS:
Material:
Insulator: Polycarbonate, rated UL94V-0
Insulator Color: Clear, (Blue optional)
Contacts: Phosphor Bronze
Contact Plating:
Gold Flash (optional 15 or 30
µin
) over nickel underplate.
Electrical:
Operating voltage: 150V AC max.
Current rating: 1.5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Cable to plug tensile strength: 7.71 Kgs (17 lbs) min.
Durability: 250 Cycles min.
Wire range: 26 to 28 Awg
Temperature Rating:
Operating temperature: -40°C to +70°C
PACKAGING:
Anti-ESD plastic bags
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224049

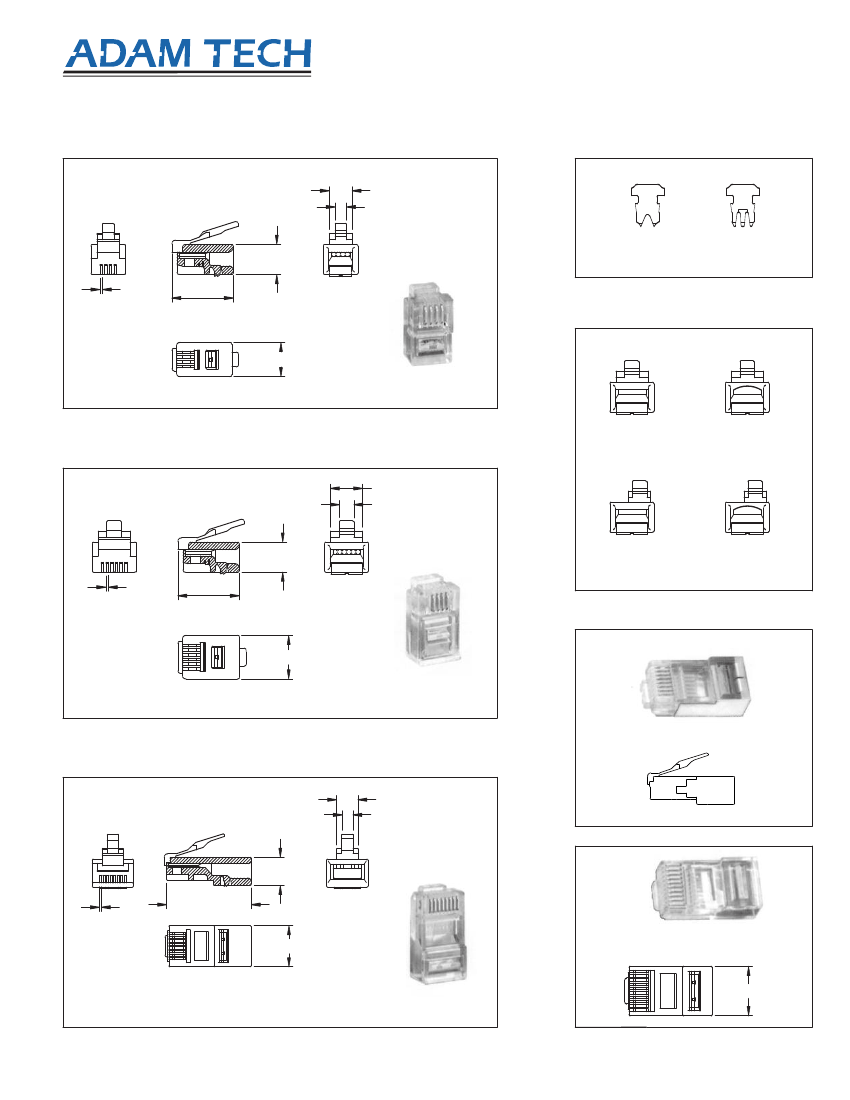

MTP SERIES
ORDERING INFORMATION
MTP
6
4
U
SERIES INDICATOR
MTP
= Modular
telephone
plug, standard
oval wire type
MTPR
= Modular
telephone plug
for round cable
PLATING
U
= 15 µin gold
W
= 30 µin gold
G
= 50 µin gold
PLUG SIZE
4, 6, 8 or 10
NO. OF CONTACTS
4, 6, 8 or 10
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/
95 / EC
OPTIONS:
Add designator(s) to end of part number
K
= Molded in key (Plug size 8 & 10 only)
S
= Solid wire contacts
EMI
= Metal shielded type (Plug size 8 or 10 only)
OL
= Offset Latch (Plug size 6 only)
BU
= Clear Blue insulater color
RoHS
COMPLIANT
48
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
