350028500ST1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 350028500ST1

350028500ST1: DescriptionIC Socket, PLCC28, 28 Contact(s), Surface Mount; CategoryThe connector socket; File Size286KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

350028500ST1 Overview

IC Socket, PLCC28, 28 Contact(s), Surface Mount

350028500ST1 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.717 inch
subject depth	0.181 inch
body length	0.717 inch
Contact structure	7X7
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC28
Dielectric withstand voltage	700VAC V
Shell material	THERMOPLASTIC
Insulation resistance	1000000000 Ω
Manufacturer's serial number	3500
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

3500

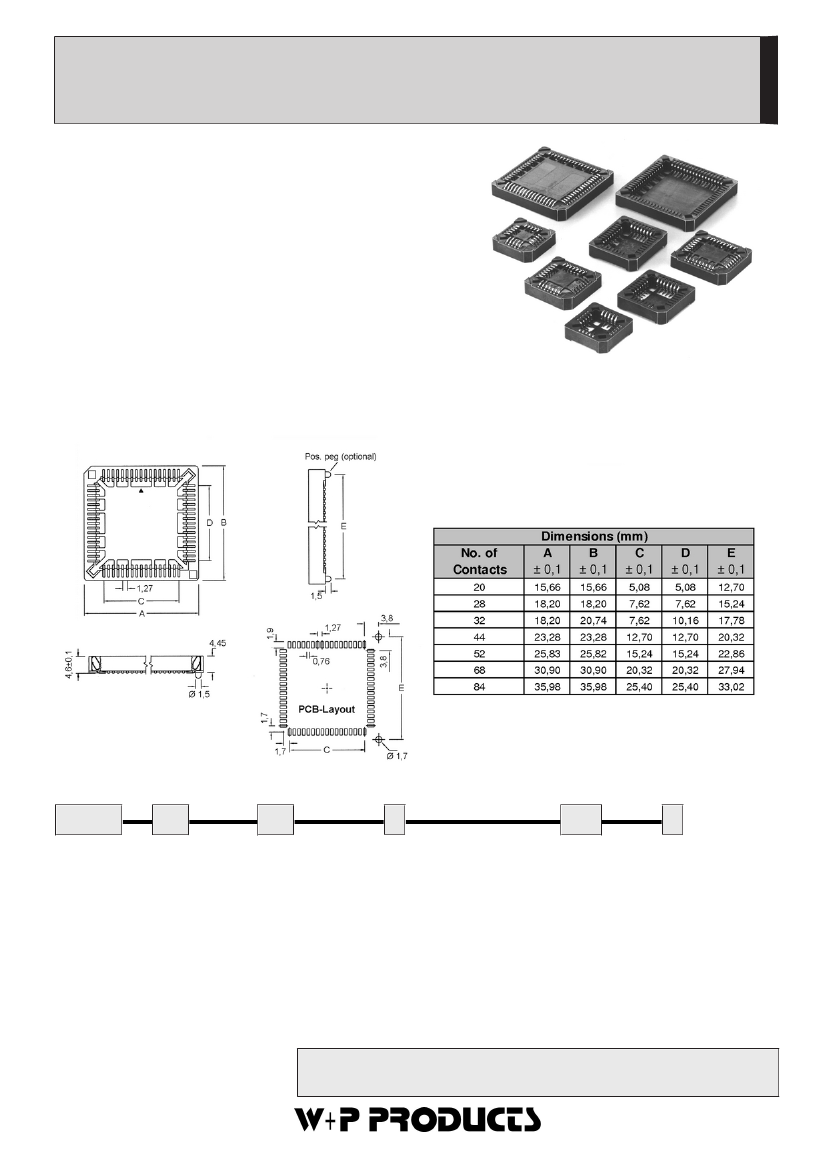

PLCC-Fassungen - SMT-Version

PLCC-Sockets - SMT Type

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

500V

RMS

Test Voltage

500V

RMS

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +105°C

Temperature Range

-55°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Contacts

Plating

Positioning Peg

Packing

Colour

3500

20/28/32/44/

52/68/84

Verzinnt

Tin plated

Ohne Positionierhilfe

W/o locating peg

Mit Positionierhilfe

With locating peg

Schwarz

Black

Braun

Brown

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= In Stangen ohne PP-Pad /

In tubes w/o PP-Pad

= Tape & Reel Verpackung /

Tape & Reel packing

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

350028500ST1 Related Products

	350028500ST1	350020500ST1	350020500ST2	350028500ST2	350068500ST1	350044500ST1	350044500ST2	350068500ST2	350084500ST1	350084500ST2
Description	IC Socket, PLCC28, 28 Contact(s), Surface Mount	IC Socket, PLCC20, 20 Contact(s), Surface Mount	IC Socket, PLCC20, 20 Contact(s), Surface Mount	IC Socket, PLCC28, 28 Contact(s), Surface Mount	IC Socket, PLCC68, 68 Contact(s), Surface Mount	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC68, 68 Contact(s), Surface Mount	IC Socket, PLCC84, 84 Contact(s), Surface Mount	IC Socket, PLCC84, 84 Contact(s), Surface Mount
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.717 inch	0.617 inch	0.617 inch	0.717 inch	1.217 inch	0.917 inch	0.917 inch	1.217 inch	1.417 inch	1.417 inch
subject depth	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch
body length	0.717 inch	0.617 inch	0.617 inch	0.717 inch	1.217 inch	0.917 inch	0.917 inch	1.217 inch	1.417 inch	1.417 inch
Contact structure	7X7	5X5	5X5	7X7	17X17	11X11	11X11	17X17	21X21	21X21
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC28	PLCC20	PLCC20	PLCC28	PLCC68	PLCC44	PLCC44	PLCC68	PLCC84	PLCC84
Dielectric withstand voltage	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	3500	3500	3500	3500	3500	3500	3500	3500	3500	3500
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	28	20	20	28	68	44	44	68	84	84
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
