BG045-36-B-0600-0300-N-G: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG045-36-B-0600-0300-N-G Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,

BG045-36-B-0600-0300-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.228 inch
subject depth	0.169 inch
body length	1.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BG045
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

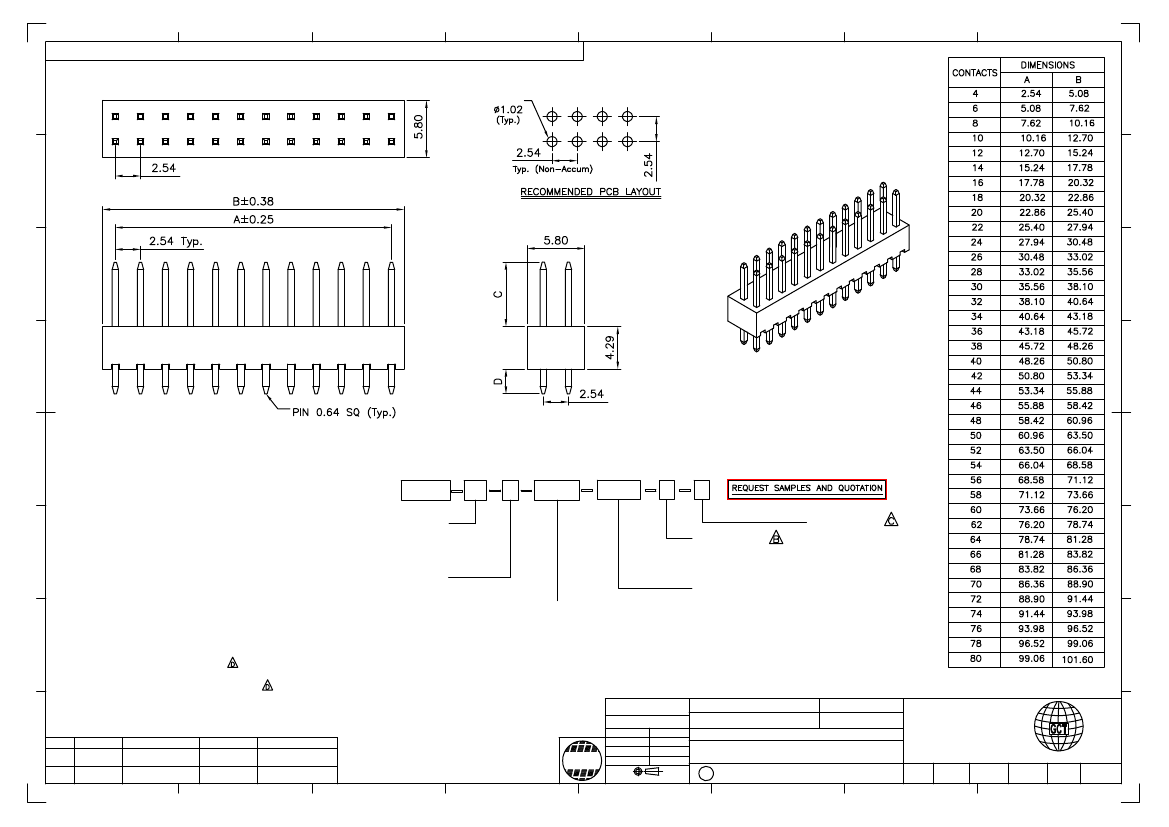

Global Connector Technology Ltd. - BG045: 2.54mm PITCH PIN HEADER, DUAL ROW, THROUGH-HOLE, VERTICAL

A

B

C

D

E

CURRENT RATING

电流额定值

: 3.0 AMPERE

INSULATION RESISTANCE

绝缘电阻值

: 1000MΩ Min.

Ordering Grid

DIELECTRIC WITHSTANDING

耐电压

: 600V AC

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

No. of Contacts

INSULATION MATERIAL

绝缘½物料

:

04 to 80

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

F

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

:

Contact Plating

NYLON 6T (STANDARD

标准物料

) -

A = Gold Flash All Over

IR REFLOW

回流焊

: 260°C for 10 sec.

B = Selective Gold Flash Contact

WAVE

波峰焊

: 230°C for 5-10 sec.

Area/ Tin On Tail

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

C = Tin All Over

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

G = 10µ" Gold Contact Area/Tin On

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

G

Tail

LCP (OPTION

可选物料

) -

I = 30µ" Gold Contact Area/Tin On

IR REFLOW

回流焊

: 260°C for 10 sec.

Tail

WAVE

波峰焊

: 250°C for 5-10 sec.

Standard = Gold Flash All Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG120

BG140

BG150

BG151

BG160

BG165

BG170

BG175

BG180

BG185

BG190

BG195

BG200

BG210

SPECIFICATIONS

规格

E

BG045

XX

X

XXXX

X

Packing Options

G = Plastic Box (Standard)

Insulator Material

D = Tube

N = Nylon 6T (Standard)

E = Tube with Cap

P = PBT

L = LCP

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension D

I.E. 2.5mm = 0250

TOL.: ±0.2mm

F

Dimension C (1/100mm)

(Post Height)

Standard - 6.00mm = 0600

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BG045

Description:-

20 OCT 06

H

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

20/10/06

PN

CB

DR

STANDARD INSULATOR

PACKING OPTIONS

CHANGE TO SOLDER

CHANGED

MATERIAL CHANGED

TEMP. INFORMATION

B

12/03/09

1

C

27/04/09

2

D

05/08/09

RoHS

3

4

2.54mm PITCH PIN HEADER, DUAL ROW,

THROUGH-HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

H

Sheet No.

E & OE
