MJ2F-00BB02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MJ2F-00BB02

MJ2F-00BB02: DescriptionTelecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size251KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

MJ2F-00BB02 Overview

Telecom and Datacom Connector, 20 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJ2F-00BB02 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.543 inch
body length	1.225 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ2F
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

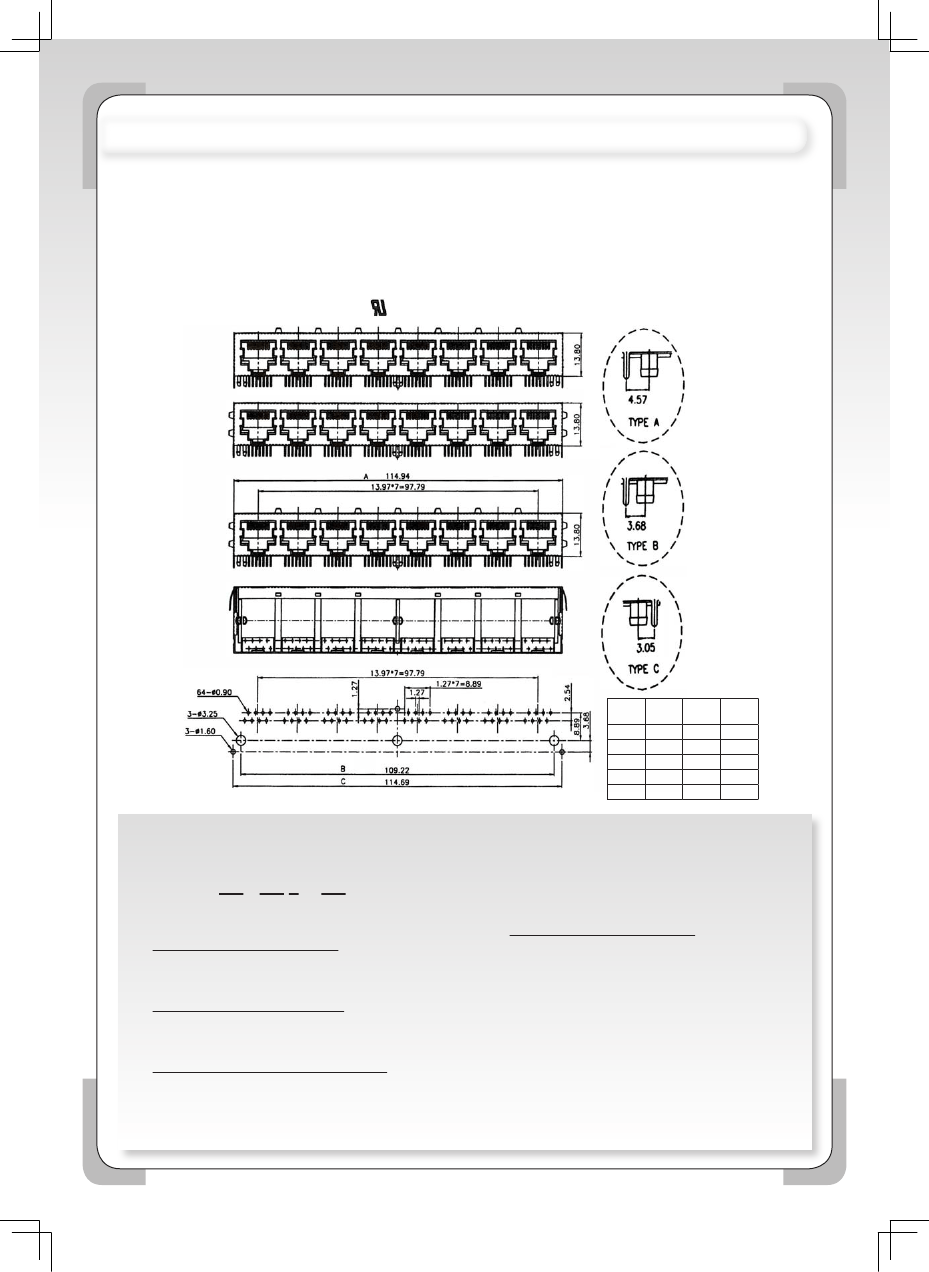

SIDE ENTRY MULTI-PORT MODULAR PCB JACK 8P+10P PROFILE=13.80MM

(FULLY SHIELDED)

SPECIFICATIONS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

MATERIALS

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

FULLY SHIELDED WITH TOP PANEL GROUND

FULLY SHIELDED WITH SIDE PANEL GROUND

FULLY SHIELDED WITH TOP & SIDE PANEL GROUND

Recommended P.C.Board Layout

No. of

Ports

31.12

59.06

73.03

87.00

114.94

25.40

53.34

67.31

81.28

109.22

30.87

58.81

72.78

86.75

114.69

ORDERING INFORMATION:

P/N M J x x - x x x B x x

2 3

1. CONTACT & PANEL GROUND TYPE:

WITH TOP PANEL GROUNDS:

"7G" TYPE A

"7P" TYPE B

"7Q" TYPE C

WITH SIDE PANEL GROUNDS:

"2E" TYPE A

"2F" TYPE B

"2G" TYPE C

WITH TOP & SIDE PANEL GROUNDS:

"2H" TYPE A

"2K" TYPE B

"2L" TYPE C

WITHOUT PANEL GROUNDS:

"7A" TYPE A

"7B" TYPE B

"3Y" TYPE C

2. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

"00" 10P10C

3. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

4. NO. OF PORTS:

02, 04, 05, 06, 08
