MJR9-00BB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MJR9-00BB

MJR9-00BB: DescriptionTelecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJR9-00BB Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack

MJR9-00BB Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.58 inch
subject depth	0.575 inch
body length	0.661 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJR9
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

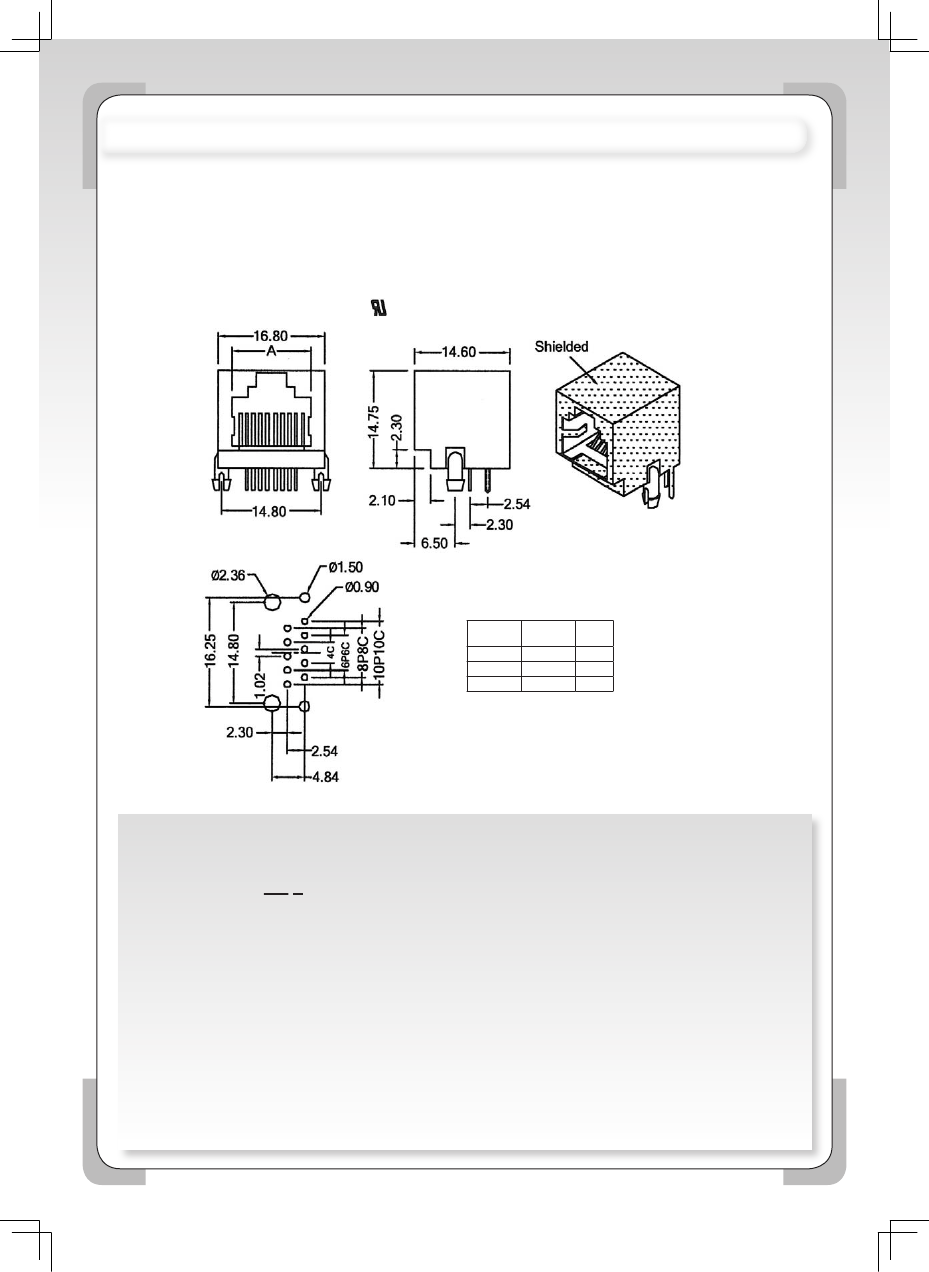

SIDE ENTRY UP LATCH MODULAR PCB JACK 6P+8P+10P PROFILE=14.75MM

(FULLY SHIELDED)

SPECIFICATIONS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

MATERIALS

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

No. of

Positions Contacts

6P(8P)

4C/6C

9.90

11.90

10P

10C

11.90

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J R 9 - x x x B

1 2

1. NO. OF POSITIONS & CONTACTS:

"66" 6P6C

"64" 6P4C

"88" 8P8C

"00" 10P10C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

J119

MJR9-00BB Related Products

	MJR9-00BB	MJR9-64AB	MJR9-00DB	MJR9-88BB
Description	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Latch, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.58 inch	0.58 inch	0.58 inch	0.58 inch
subject depth	0.575 inch	0.575 inch	0.575 inch	0.575 inch
body length	0.661 inch	0.661 inch	0.661 inch	0.661 inch
Body/casing type	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJR9	MJR9	MJR9	MJR9
Installation option 1	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	6u inch	50u inch	15u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	6	10	8
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	-
