SRF1020111111: Description10 A, 60 V, SILICON, RECTIFIER DIODE, TO-220AC; Categorysemiconductor Discrete semiconductor; File Size168KB，2 Pages; ManufacturerSHANGHAI SHANGLANG ELECTRONIC TECHNOLOGY CO., LTD.

Download Datasheet Compare View All

SRF1020111111 Overview

10 A, 60 V, SILICON, RECTIFIER DIODE, TO-220AC

Preview

Download Datasheet

View All

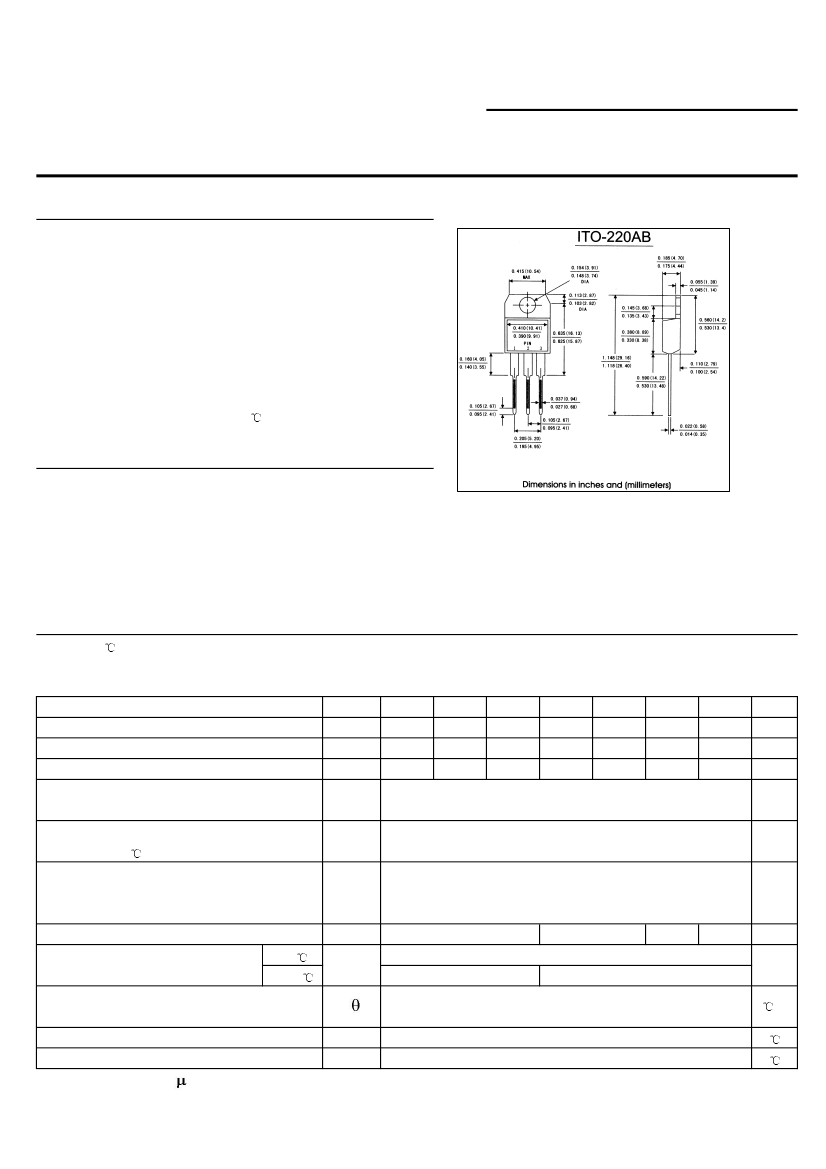

CHENYI ELECTRONICS

SRF1020 THRU SRF10A0

SCHOTTKY BARRIER RECTIFIER

Reverse Voltage - 20 to 100 Volts

Forward Current - 10.0Amperes

FEATURES

. Plastic package has Underwriters Laboratory Flammability Classification 94V-0

. Metal sliicon junction ,majority carriet conduction

. Guard ring for overcoltage protection

. Low power loss,high efficiency

. High current capability ,Low forward voltage drop

. High surge capability

. For use in low voltage ,high frequency inverters,

free wheeling , and polarilty protection applications

. Dual rectifier construction

. High temperature soldering guaranteed: 250 /10 seconds

0.25"(6.35mm)from case

MECHANICAL DATA

Case:

JEDEC DO-220AB molded plastic body

Terminals:

lead solderable per MIL-STD-750,method 2026

Polarity:

As marked. No suffix indicates Common Cathode, suffix"A"

indicates Common Anode

Mounting Position:

Any

Weight:

0.08 ounce, 2.24 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Ratings at 25

ambient temperature unless otherwise specified,Single phase,half wave,resistive or inductive)

load. For capacitive load,derate by 20%)

Symbols SR1020 SR1030 SR1040 SR1050 SR1060 SR1080 SR10A0

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Macimum average forward rectified

current(see Fig.1)

Repetitive peak forward current(square wavr,

20KHz) at Tc=105

Peak forward surge current 8.3ms singel half

sine-wave superimposed on rated load

(JEDEC method)

Maximum instantaneous forward voltage at 10 A(Note 1)

Maximum instantaneous reverse

current at rated DC blocking voltage(Note 1)

Typeical thermal resistance(Note 2)

Operating junction temperature range

storage temperature range

TA=25

TA=125

2.5

-65 to +125

-65 to +150

0.70

1.0

0.8

0.80

0.85

FSM

150.0

RRM

RMS

(AV)

10.0

100

Units

Volts

Amps

FRM

20.0

Amps

Volts

STG

Notes:

1. Pulse test: 300

pulse width,1% duty cycle

2.Thermal resistance from juntion to case

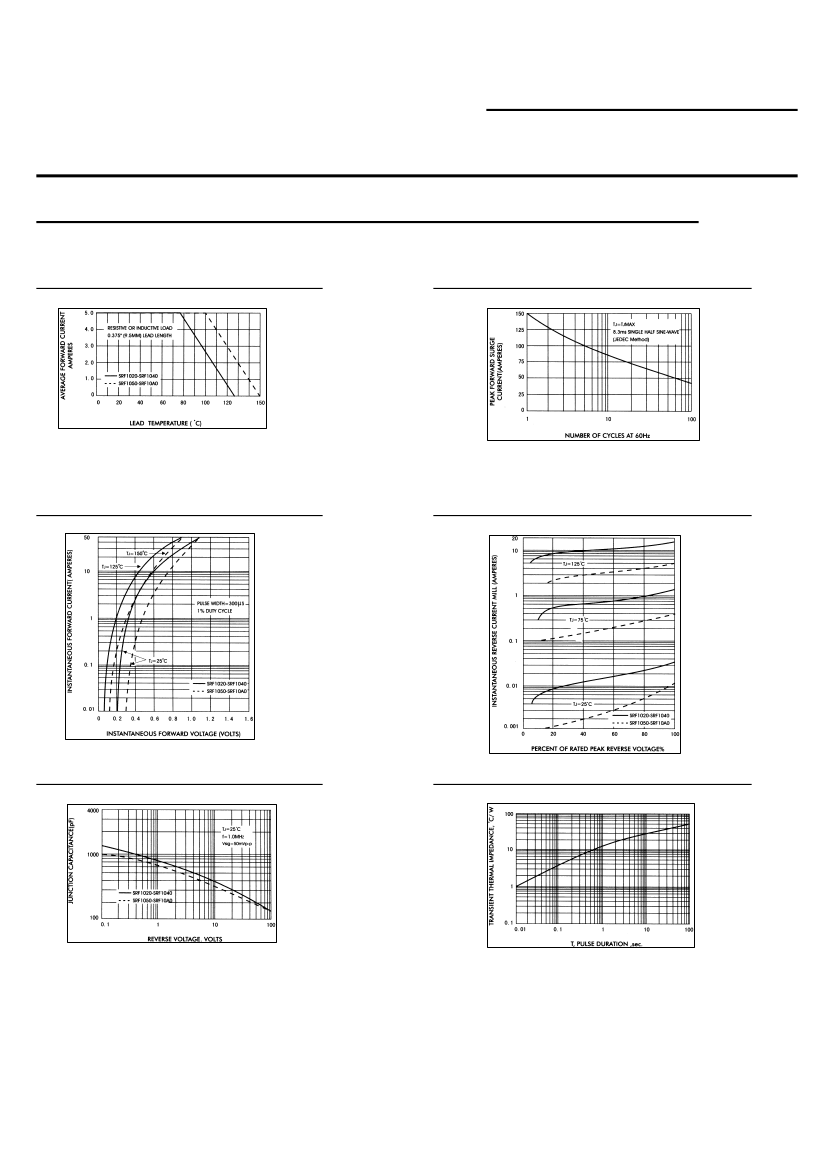

Page 1 of 2
