R1001G21A1-W10K/14X2.8: DescriptionPotentiometer, Carbon, 0.05W, 10000ohm, 12V, 20% +/-Tol; CategoryPassive components The resistor; File Size286KB，2 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric View All

R1001G21A1-W10K/14X2.8 Overview

Potentiometer, Carbon, 0.05W, 10000ohm, 12V, 20% +/-Tol

R1001G21A1-W10K/14X2.8 Parametric

Parameter Name	Attribute value
Maker	Song Huei Electric Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rotary
Lead diameter	0.8 mm
Lead length	2 mm
Manufacturer's serial number	R1001G21A1
Package diameter	14 mm
Package length	2.8 mm
Package form	PCB Mount
Rated power dissipation(P)	0.05 W
resistance	10000 Ω
Resistor type	POTENTIOMETER
rotation angle	270 deg
series	R1001G21A1
technology	CARBON
Tolerance	20%
Operating Voltage	12 V

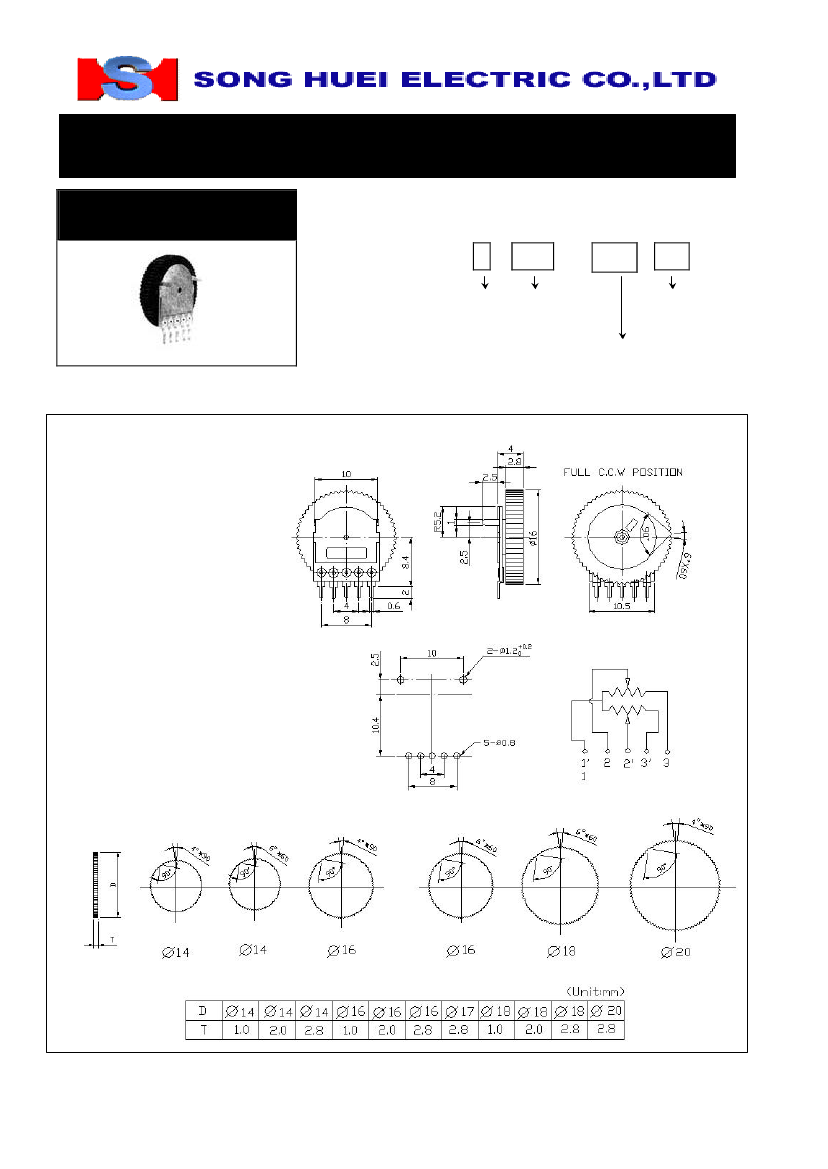

R1001G21A1-W10K/14X2.8 Preview

10mm Ultra Thin Micro Rotary Potentiometers (10mm

薄型旋½式電½器

)

R1001G21A1

Part Number

R1001G21A1- B

50K

φ16

x 2.8

Taper Resistance value Knob Thickness

線性

阻值

旋鈕厚度

(T)

Knob Diameter

旋鈕外徑

(D)

Dimensions

規格尺寸

Shaft Type

軸型

http://www.song-huei.com.tw

9mm Metal Shaft Rotary Potentiometer (9mm

金

薄型旋½式電½器

)

10mm Ultra Thin Micro Rotary Potentiometers (10mm

屬軸旋 ½ 電 ½ 器)

Electrical Characteristics

電氣特性

Total Resistance

½阻值

500Ω ~ 1MÙ

Total Resistance Tolerance

½阻值誤差

20%

Resistance Taper

線性

Resistance Taper Characteristics

阻值變化特性範圍

Rated Power

定格電力

A. B. C. D. W. Taper

A50%

15-25%

0.05 W

≥

250KΩ 0.1%

B50%

40-60%

C50%

75-85%

D50%

2-15%

W50%

45-55%

Residual Resistance

殘留阻值

250KΩ> R

10KΩ

10KΩ≥ R

20ΩMax.

Noise

雜音

Gang Error

連動誤差

Max. Operation Voltage

最高½用電壓

Insulation Resistance

絕緣阻抗

Withstand Voltage

耐電壓

Rotational Lift

旋 ½ ½ ½

100 mV MAX.

-40dB ~ 0db

≦

4 db

AC 50V; DC12V

DC 100V 100MΩ

1 minute at AC 100V

More than 10,000 Cycles

Mechanical Characteristics

機械特性

Total Rotational Angle

全迴 ½ 角度

Stopper Strength

全迴 ½ 止強度

Rotational Torque

迴 ½ 扭力

Shaft Pull-Push Strength

軸心壓入拉起強度

Soldering Heat

焊錫耐熱性

270°

10°

0.8kgf.cm max./3 minute.

20 ~ 100 gf.cm

Pull 0.5Kg.f max.

Pus h 0.2Kg.f max.

300℃, 3s. (Only for Hand-Soldering)

http://www.song-huei.com.tw

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
