A05B-20-B-T-D-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> A05B-20-B-T-D-1

A05B-20-B-T-D-1: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.

Download Datasheet Parametric View All

A05B-20-B-T-D-1 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug,

A05B-20-B-T-D-1 Parametric

Parameter Name	Attribute value
Maker	Don Connex Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT STRAIN RELIEF W/O BAR
body width	0.157 inch
subject depth	0.126 inch
body length	0.953 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A05B
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	20

Preview

Download Datasheet

View All

A05b

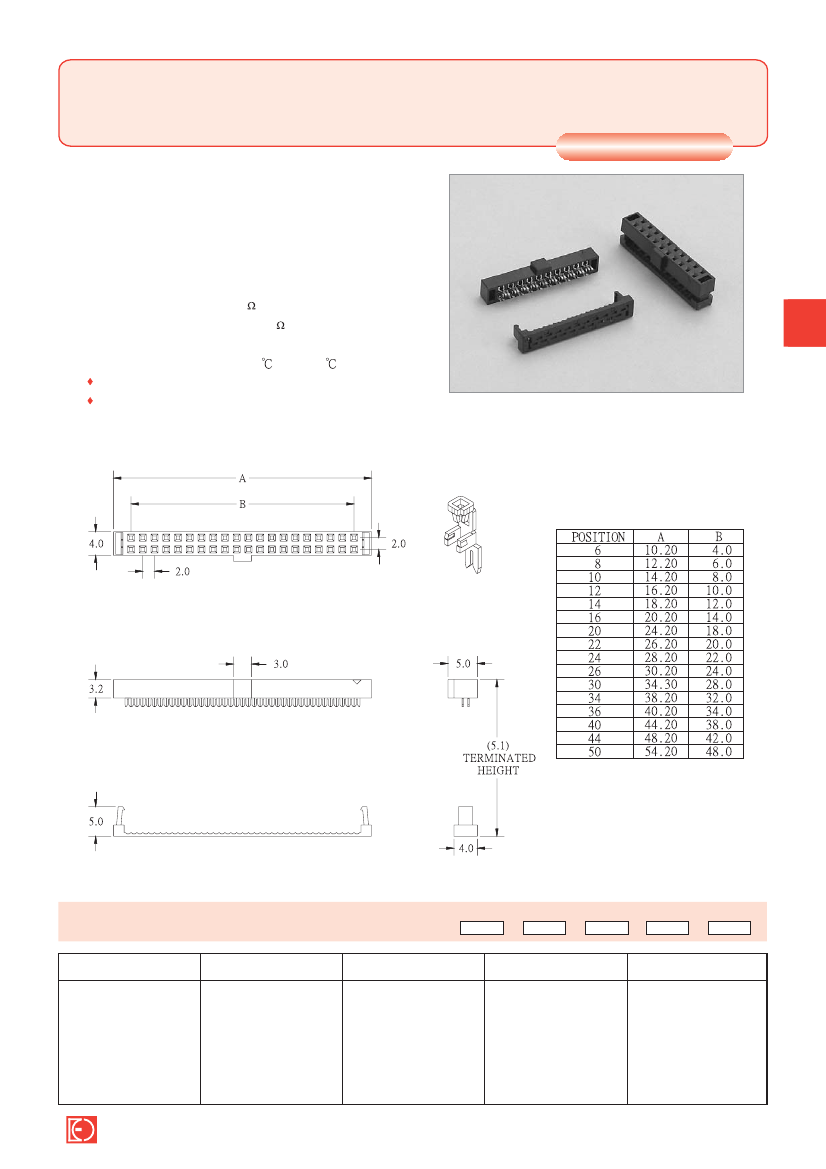

SPECIFICATIONS

Material

Contact : Phosphor Bronze

IDC SOCKET (INTENSIVE-CONTACT)

PITCH: 2.0mm

Insulator : PBT, glass reinforced, rated UL 94V-0

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 m

max.

min.

to +105

Insulation Resistance : 3000 M

Operating Temperature : -40

Dielectric Withstanding Voltage : 500V AC for 1minute

Terminated with 1.00mm pitch flat ribbon cable.

Mating Suggestion : C05b, C05f, C05g, C06b, C06c & C06e series.

HOW TO ORDER:

1.NO. OF CONTACT

06 08 10 12 14

16 20 22 24 26

30 34 36 40 44

A05b -

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

2.CONTACT MATERIAL

B: PHOSPHOR BRONZE

4.SPECIAL FUNCTION

B: W/O STRAIN RELIEF

W BAR

D: W/O STRAIN RELIEF

W/O BAR

5.INSULATOR COLOR

1. BLACK

DON CONNEX

ELECTRONICS CO., LTD.

TEL:886 2-86483356 FAX:886 2-86485885

E-mail:don@mail.donnex.com.tw
