DBCA0826AS1

Description
EDGE CONNECTOR,CABLE MNT,26 CONTACTS,2,IDC TERMINAL
CategoryThe connector    The connector
File Size113KB,1 Pages
ManufacturerAlpha 3 Manufacturing
Download Datasheet Parametric Compare View All

DBCA0826AS1 Overview

EDGE CONNECTOR,CABLE MNT,26 CONTACTS,2,IDC TERMINAL

DBCA0826AS1 Parametric

Parameter NameAttribute value
MakerAlpha 3 Manufacturing
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.394 inch
subject depth0.677 inch
body length1.68 inch
Connector typeCARD EDGE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage500VAC V
Insulation resistance3000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDBCA08
Plug contact pitch0.1 inch
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts26
IDC
Industry compatible
Competitively priced
Selective gold plated contacts
2.54mm pitch
Complete with Strain Relief
EDGE CARD

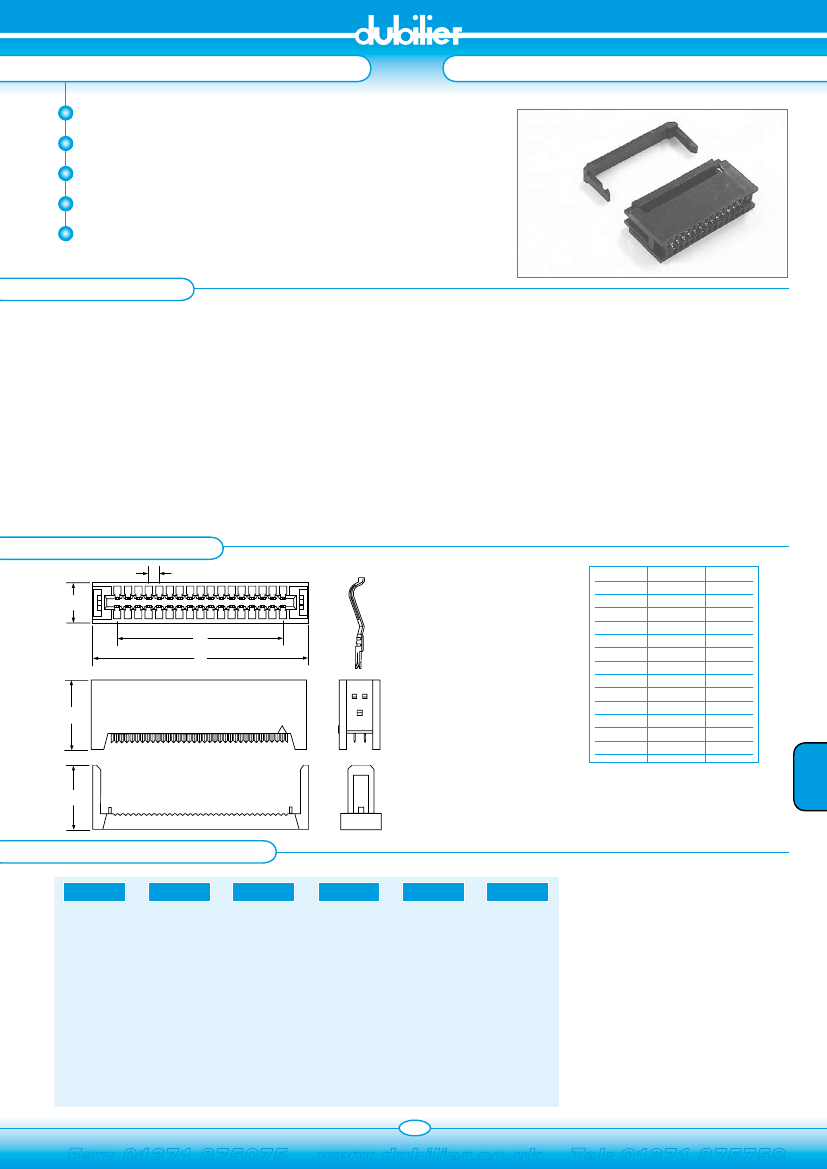

SPECIFICATION
Material & Finish
Insulator:
Contact:
PBT UL94V-0
Brass
Electrical Characteristics
Rating Current:
Contact Resistance:
Insulation Resistance:
Dielectric Voltage:
1 Amp DC
30 mΩ max
3000MΩ min.
500v AC for 1 minute
Operating
2.54
Temperature:
-40°C to +105°C
OUTLINE DRAWING
10.0
33
34
33
10.0
34
2.54
2
1
2
1
2
1
2.54
10.0
34
33
B
A
B
A
B
A
17.2
17.2
17.2
16.0
16.0
Position
10
14
16
20
26
34
40
44
50
56
60
62
64
A
22.36
27.44
29.98
35.06
42.68
52.84
60.46
65.54
73.16
80.78
85.86
88.40
90.94
B
10.16
15.24
17.78
22.86
30.48
40.64
48.26
53.34
60.96
68.58
73.66
76.20
78.74
SECTION 15
ORDERING INFORMATION
16.0
DBC
Dubilier
Connectors
A08
Series
10
No. of Contacts
10 = 10Way
14 = 14Way
16 = 16Way
20 = 20Way
26 = 26Way
34 = 34Way
40 = 40Way
44 = 44Way
50 = 50Way
56 = 56Way
60 = 60Way
62 = 62Way
64 = 64Way
A
Contact Material
A = Brass
S
Contact Plating
S = Selective
Gold
1
Colour
1 = Black
327
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758

DBCA0826AS1 Related Products

DBCA0826AS1 DBCA0820AS1 DBCA0850AS1
Description EDGE CONNECTOR,CABLE MNT,26 CONTACTS,2,IDC TERMINAL EDGE CONNECTOR,CABLE MNT,20 CONTACTS,2,IDC TERMINAL EDGE CONNECTOR,CABLE MNT,50 CONTACTS,2,IDC TERMINAL
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
body width 0.394 inch 0.394 inch 0.394 inch
subject depth 0.677 inch 0.677 inch 0.677 inch
body length 1.68 inch 1.38 inch 2.88 inch
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation AU AU AU
Contact material BRASS BRASS BRASS
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 30 mΩ 30 mΩ 30 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V
Insulation resistance 3000000000 Ω 3000000000 Ω 3000000000 Ω
Insulator color BLACK BLACK BLACK
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number DBCA08 DBCA08 DBCA08
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch
Installation type CABLE CABLE CABLE
Number of rows loaded 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Rated current (signal) 1 A 1 A 1 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Termination type IDC IDC IDC
Total number of contacts 26 20 50
