FP-C4F: DescriptionRF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size139KB，1 Pages; ManufacturerCanare Electric Co., Ltd.

Download Datasheet Parametric Compare View All

FP-C4F Overview

RF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug

FP-C4F Parametric

Parameter Name	Attribute value
Maker	Canare Electric Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF F CONNECTOR
Contact resistance	5 mΩ
Contact style	COAX
Insulation resistance	500000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	FP
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1

Preview

Download Datasheet

View All

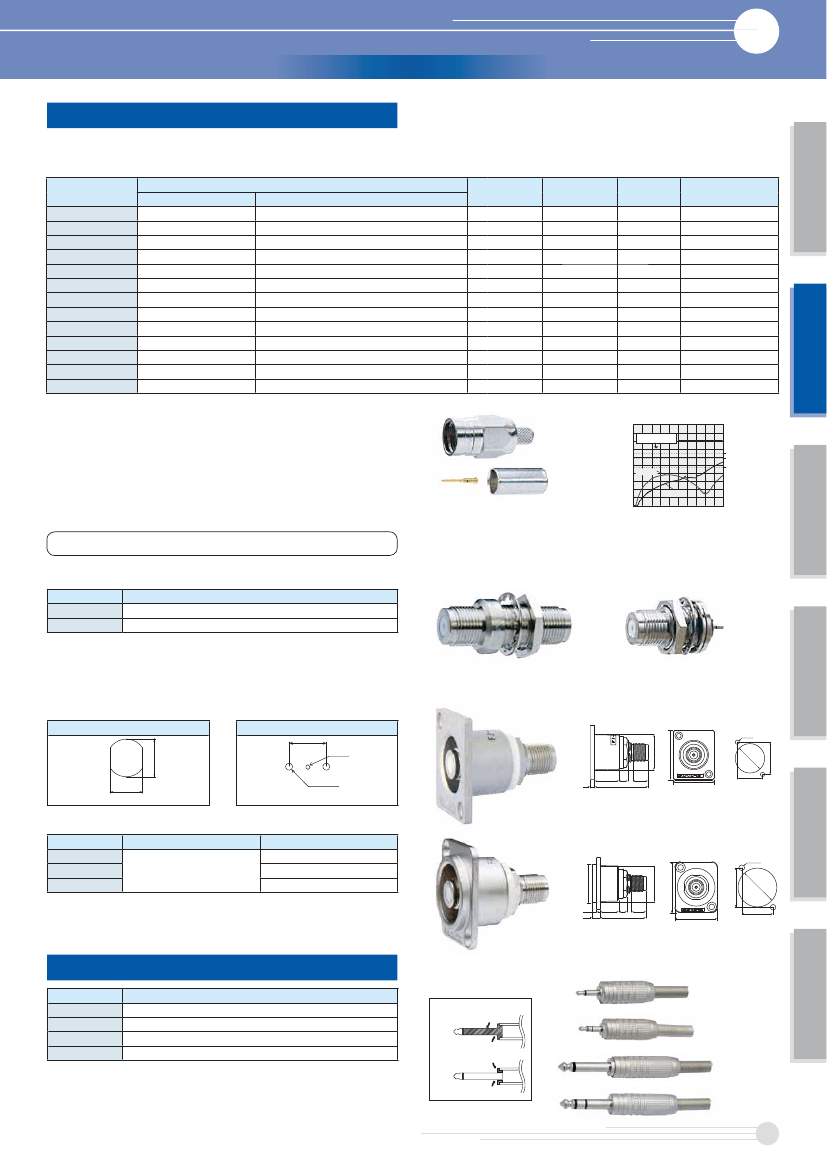

F Connectors, Phone Plugs

F Connectors

This type is used in such applications as home television receivers for cable television (CATV) systems.

■

FP-C Series (Crimp Plugs)

Model

FP-C25HD

FP-C3

FP-C31

FP-C3F

FP-C4

FP-C4F

FP-C5

FP-C52

FP-C53A

FP-C55A

FP-C5F

FP-C71A

FP-C7FA

Suitable Cable

Canare

L-2.5CHD

L-3C2VS, L-3C2V, V*-3C

L-3C2W

L-3CFB, V*-3CFB

LV-61S

L-4CFB, V*-4CFB

L-5C2VS, L-5C2V, V*-5C

L-5C2W

L-4.5CHD

—

L-5CFB, V*-5CFB

—

L-7CFB

Others

—

8241, 8279, RG-59B/U

1505A, 1505ANH, 8212, 8241F, 9167, 9259, 9659

—

1694A, 9066, 9116, 9118, 9248

1695A, 89120, 87120, 633948, 9116P

—

7731A, 9064, 9292, 1617A, 9011

—

Center Pin

BN1003B

BN1002B

BN1003B

BN1004B

BN1005B

BN1041A

BN1030A

Sleeve

BN7129

BN7003A

BN7011

BN7003A

BN7015A

BN7016

BN7014

BN7046

BN7045A

B75004A

BN7021A

Boot

—

CB24

CB25

CB24

CB25

CB26

—

CB26

—

CB26

—

Die Set

TCD-35CA

TCD-31C

TCD-35CA

TCD-4CA, TCD-451CA

TCD-35CA

TCD-451CA

TCD-35CA

TCD-5CF, TCD-55FA

TCD-7CA

Fiber-Optic Systems

Connectors

•Standard package (20pcs/100pcs)

●

Lock mechanism improves reliability by preventing shifting or detaching

of the center pin.

●

The tools and cable stripper can be used for the Canare crimp BNC plugs

as well, thus saving on extra equipment.

●

VSWR of 1.1 or less up to 2GHz. Compatible with broadcast satellite (BS)

and communications satellite (CS) signals.

●

Designed for indoor use.

Be sure to use the Canare crimping tool for installing connectors on cables.

S11(dB)

0

VSWR

-10

SMPTE424M

1.3

1.2

-20

-30

FJ-JR

FJ-FPC

1.1

-40

Cables

FP-C4

-50

0

1.5

3.0

(GHz)

Fig.1 Return loss for FJ-FPC and FJ-JR

■

Standoff Receptacle

Model

FJ-JR

FJ-FPC

•Standard package (20pcs/100pcs)

Description

Jack to Jack

PC Board Straight Mount

Panels & Patchbays

●

VSWR of 1.1 or less up to 2GHz. Compatible with broadcast satellite (BS)

and communications satellite (CS) signals. <Fig. 1>

●

For insulation from the panel, use insulation bushing IU-7/16.

(Panel thickness: 1.2~3.0mm)

Panel Mount Hole Dimensions

∅

11.3

FJ-JR

FJ-FPC

PC Hole Dimensions

8.1

∅

1.3

9.6

2-

∅

1.45

Mutichannel Systems

FJ-JR, FJ-FPC

FJ-FPC

FJ-JRU

■

Flush-mount Receptacles

Model

FJ-JRU

FJ-JRUD

FJ-JRUDB

•Standard package: 20 pcs

Description

Jack to Jack

Flange Type

ITT XLR-F77

Neutrik D

Neutrik D (Black)

●

Three types of flanges are available.

FJ-JRUD

Cable Assemblies

Phone Plugs

Model

F-11

F-12

F-15

F-16

Description

3.5mm Mini Phone TS

3.5mm Mini Phone TRS

6.3mm (1/4") TS Phone

6.3mm (1/4") TRS Phone

Canare

Phone Plugs

Single-piece construction

F-11

F-12

Round finish at the base

Others

Two-piece construction

•Standard package (10pcs)

F-15

F

F-16

35

●

Featuring a properly cable cramp system ensures long life reliability.

●

Suited to cables up to 6.0mm∅ in size.

No round finish

Canare’s durable design

Connectors

FP-C4F Related Products

	FP-C4F	FP-C3	FP-C3F	FP-C52
Description	RF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug	RF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug	RF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug	RF F Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Plug
Maker	Canare Electric Co., Ltd.	Canare Electric Co., Ltd.	Canare Electric Co., Ltd.	Canare Electric Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR
Contact resistance	5 mΩ	5 mΩ	5 mΩ	5 mΩ
Contact style	COAX	COAX	COAX	COAX
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	FP	FP	FP	FP
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1
