87P201T1D-06-XLY-50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 87P201T1D-06-XLY-50

Preview

87P201T1D-06-XLY-50: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size345KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

87P201T1D-06-XLY-50 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

87P201T1D-06-XLY-50 Parametric

Parameter Name	Attribute value
Maker	GSN Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.185 inch
subject depth	0.24 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	87P201T1D
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	6

Preview

Download Datasheet

View All

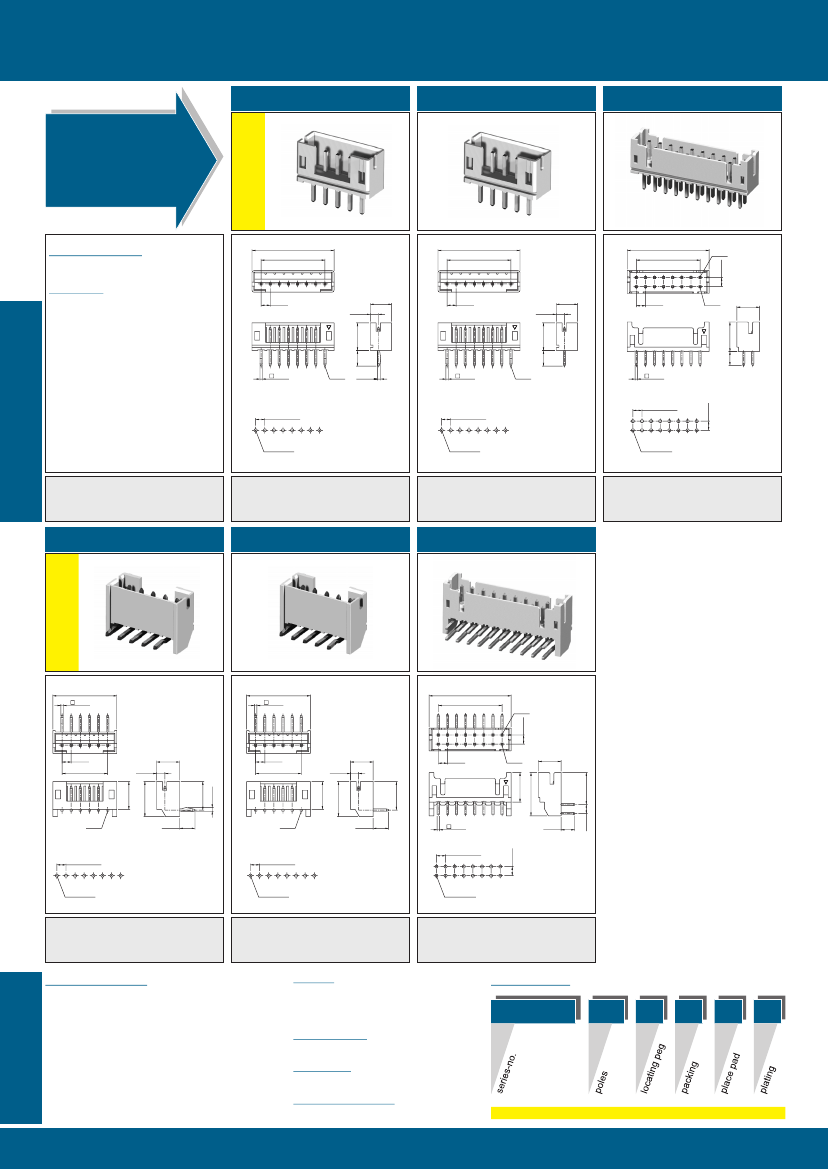

GSN

Total Process Quality

87P201T1D

kinked pins

crimp technology THT 2.00

87P201T1E

87P202T1B

male

header

technical data

male header

(2.00 x n) +2.00

2.00 x (n-1)

(2.00 x n) +2.00

2.00 x (n-1)

(2.00 x n/2) +2.00

2.00 x (n/2-1)

pin 2

2.00

4.70

1.80

6.10

2.00

1.80

6.10

4.70

2.00

pin 1

crimp technology

3.40

0.50

pin 1

0.80

0.50

pin 1

0.50

2.00±0.05

Ø0.70

-0.00

+0.10

Ø0.70

-0.00

+0.10

Ø0.70

+0.10

-0.00

available pole no.:

current rating:

02 to 18

2A AC/DC

available pole no.:

current rating:

02 to 18

2A AC/DC

available pole no.:

current rating:

87P201T9B

kinked pins

87P201T9C

87P202T9B

(2.00 x n) +2.00

0.50

(2.00 x n) +2.00

0.50

(2.00 x n/2) +2.00 ±0.25

2.00 x (n/2-1)

pin 2

2.00

2.00 x (n-1)

6.10

1.80

5.00

2.00

2.00 x (n-1)

6.25

0.80

6.10

1.80

5.00

2.00

pin 1

5.00

6.50

7.70

6.25

9.50

pin 1

3.40

pin 1

3.40

0.50

3.00

2.00±0.05

Ø0.70

-0.00

+0.10

Ø0.70

-0.00

+0.10

Ø0.70

+0.10

-0.00

available pole no.:

current rating:

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

02 to 16

2A AC/DC

available pole no.:

current rating:

02 to 16

2A AC/DC

available pole no.:

current rating:

2.00±0.05

04 to 40

3A AC/DC

electrical data

current rating

withstanding voltage

insulation resistance

contact resistance

operating temperature

:

see drawing

800V AC / 1 minute

1000 Meg Ohm min

20 milli Ohm max

plating

50= tin

order code

87P201T1D-

06 -

X

L

Y-

50

locating peg

place pad

X=without

Y=without, P=with

: -25°C to +85°C

possible packing

L=loose, T=tube,

R=reel

other dimensions / materials are available, please contact us

B06

support@gsn.sg

2.00

7.00

2.00±0.05

04 to 40

3A AC/DC

3.00

6.50

contact material

insulator

flammability

: brass

: nylon 66

: UL 94V-0

5.00

87P201T1D-06-XLY-50 Related Products

	87P201T1D-06-XLY-50	87P201T1D-03-XLY-50	87P201T1D-05-XLY-50	87P201T1D-04-XLY-50	87P201T1D-02-XLY-50
Description	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
subject depth	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch
body length	0.551 inch	0.315 inch	0.472 inch	0.394 inch	0.236 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	87P201T1D	87P201T1D	87P201T1D	87P201T1D	87P201T1D
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	6	3	5	4	2
