Semiconductor

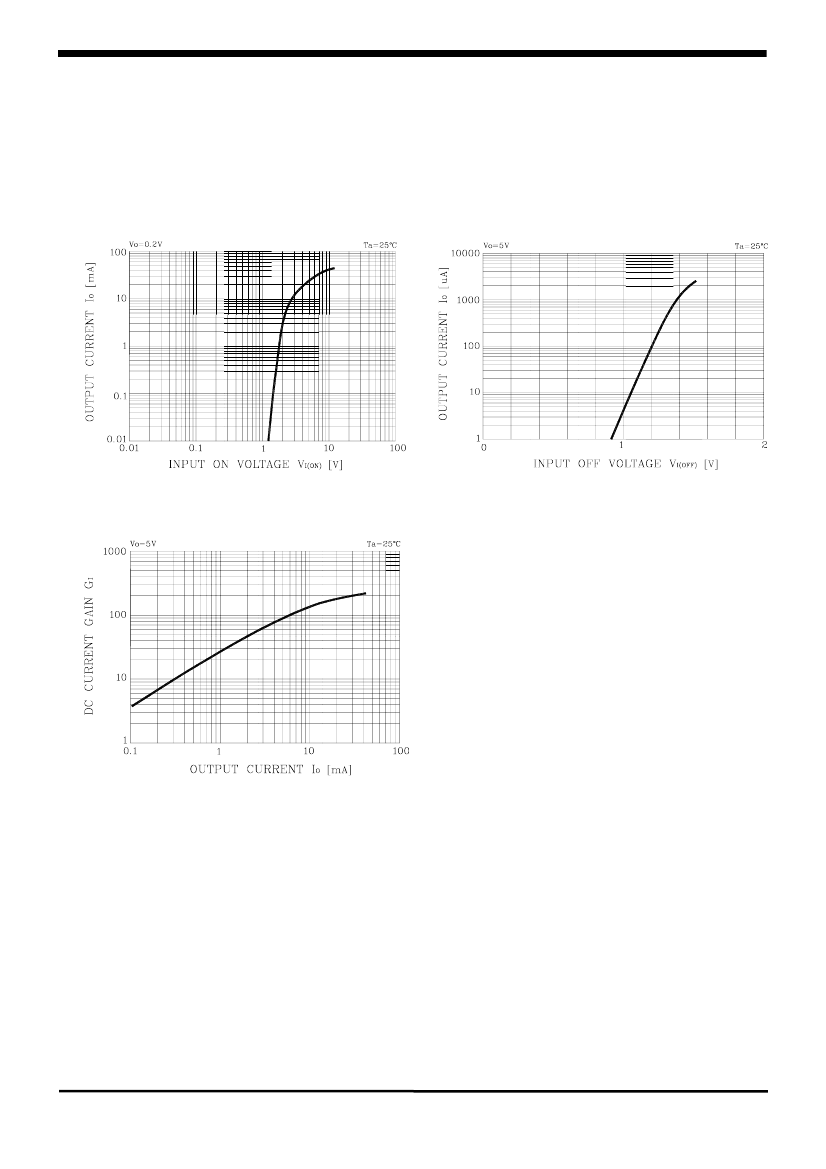

SRC1203M
NPN Silicon Transistor
Descriptions
•
Switching application
•
Interface circuit and driver circuit application
Features
•
•
•
•
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
High packing density
Ordering Information
Type NO.
SRC1203M
Marking
1203
Package Code
TO-92M
Outline Dimensions
4.0±0.1
unit :
mm
•
Equivalent Circuit
3.0±0.1
0.44 REF
0.52 REF
C(OUT)
B(IN)
14.0±0.40
R
1
R
2
E(COMMON)
1.27 Typ.
2.54
±
0.1.
R
1
22KΩ
Ω
R
2
22KΩ
Ω
1
2
3
PIN Connections
1. Emitter
2. Collector
3. Base
0.7 Typ.
3.0±0.1
3.8 Min.
0.42 Typ.
KSR-I003-000
1
