SRC1202UF

Description
NPN Silicon Transistor
File Size62KB,3 Pages
ManufacturerAUK
Websitehttp://www.auk.co.kr/english/index.html
Download Datasheet View All

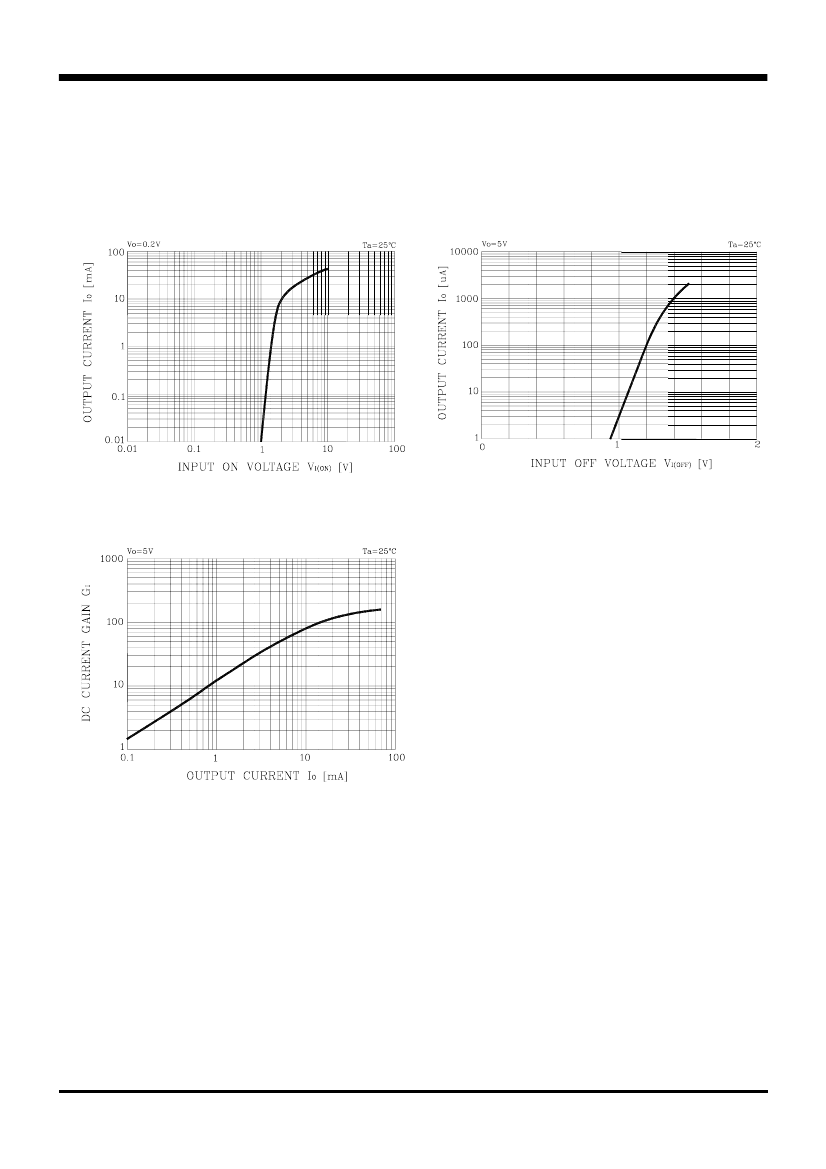

SRC1202UF Overview

NPN Silicon Transistor

Semiconductor
SRC1202UF
NPN Silicon Transistor
Descriptions
Switching application
Interface circuit and driver circuit application
Features
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
High packing density
Ordering Information
Type NO.
SRC1202UF
Marking
R2
Package Code
SOT-323F
Outline Dimensions
unit :
mm
Equivalent Circuit
0.30~0.40
2.1±0.1
1.30±0.1
C(OUT)
1.30 BSC
2.0±0.1
1
3
0.70-
0.15
2
B(IN)
+0.1
R
1
0.11±0.05
R
2
0~0.1
E(COMMON)
PIN Connections
1. Base
2. Emitter
3. Collector
R
1
10KΩ
R
2
10KΩ
KSR-3001-000
1
