JTB552-99-2-13-1-M1 datasheet, PDF

Datasheet> All Categories > The connector> JTB552-99-2-13-1-M1

JTB552-99-2-13-1-M1: DescriptionBarrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s); CategoryThe connector; File Size153KB，1 Pages; ManufacturerJite Connectors Inc.; Environmental Compliance

Download Datasheet Parametric View All

JTB552-99-2-13-1-M1 Overview

Barrier Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s)

JTB552-99-2-13-1-M1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Jite Connectors Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, POLYAMIDE
Fastening method	SCREW
Manufacturer's serial number	JTB552
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	13
Rated current	15 A
Rated voltage	300 V
safety certificate	CSA; CUL; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG

Preview

Download Datasheet

View All

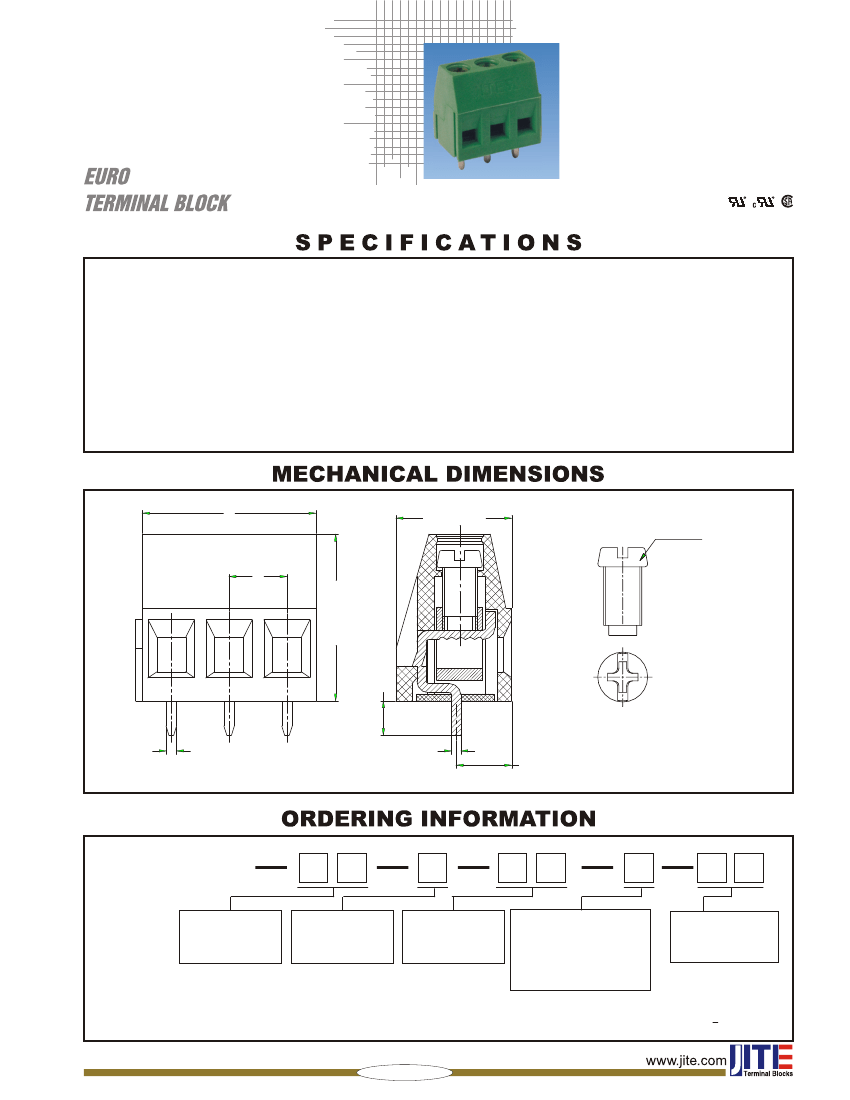

TYPE JTB552

WIRE ENTRANCE: .......................Parallel to PCB

CENTER SPACING: ......................5.08mm / 0.200 in.

5.00mm / 0.197 in.

WIRE RANGE: ..............................12--26 AWG

ELECTRICAL RATING: .................300V, 15A

BREAKDOWN VOLTAGE: .............4,000V

MOLDING: .....................................Polyamide, UL94, V-0

Self Extinguishing

MAX. TORQUE: .............................5 lb-in.

WIRE CAGE: .................................Brass,Ni Plated

SCREW: ........................................M3,Philips Screw,Steel

Zinc Plated

TERMINAL: ....................................Brass,Tin Plated

TEMPERATURE:

OPERATING: ..................................-40

C to +105

-40

F to + 221

MAX. SOLDERING: ........................260

C , +500

for 5 seconds

10.00(0.394)

Philips Screw

14.40(0.567)

0.90(0.035)

0.80(0.031)

4.80(0.189)

JTB552

Styles

00 to 99

0 0

Spacing

1=5.00mm

2=5.08mm

M 1

Poles

02 to 32

Color

0=Light Grey 1=Black

2=Blue

3=Green

4=Dark Grey

Philips Screw*

Options*:

M1~M9, For Customer Modification (Please provide sketch).

If more than one option is required, please separate each option with a dash ( ).

J-06-01-V1

P = Center to Center Spacing

Length of Connector (L)

L = number of Poles X Center Spacing

Dimensions: mm (in.)

3.00(0.118)
