200-MSP5-T1-B2-M1-Q-E: DescriptionToggle Switch, SPDT, On-off-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size304KB，5 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

200-MSP5-T1-B2-M1-Q-E Overview

Toggle Switch, SPDT, On-off-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Toggle Actuator, Panel Mount

200-MSP5-T1-B2-M1-Q-E Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Executor completed	CHROME
Actuator length	0.37 inch
Actuator material	BRASS
Actuator type	TOGGLE
Other features	APPROVAL UL, CSA
body width	5.08 mm
body height	8.636 mm
Body length or diameter	8.128 mm
Casing diameter	0.24 inch
Nozzle length	0.22 inch
Casing type	UNTHREADED
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@250VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Contact function	ON-OFF-(ON)
Contact resistance	0.02 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	30000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
Manufacturer's serial number	200
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal length	0.11 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

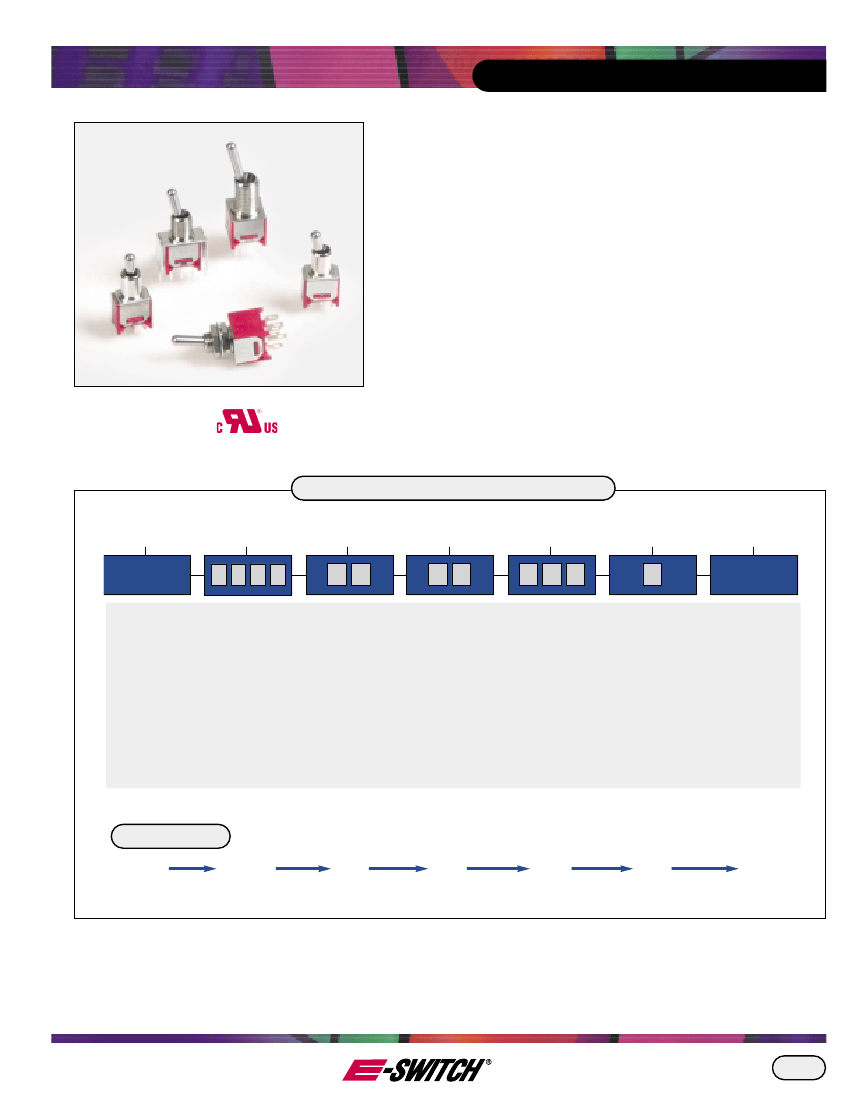

S E R I E S

200

S W I T C H E S

SUB-MINIATURE TOGGLE SWITCHES

SPECIFICATIONS

Contact Rating:

Electrical Life:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Operating Temperature:

Dependent upon contact material

30,000 make-and-break cycles at full load

20 mΩ max. typical initial @ 2-4 VDC

100 mA for both silver and gold plated contacts

1,000 MΩ min.

1,000 V RMS @ sea level

-30° C to 85° C

MATERIALS

Case:

Toggle Handle:

Bushing:

Housing:

Switch Support:

Contacts / Terminals:

Diallyl phthalate (DAP) or glass filled nylon (UL94-V0)

Brass, chrome plated

Brass, nickel plated

Stainless steel

Brass, tin plated

Silver or gold plated copper alloy

HOW TO ORDER

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Series

Model No.

Actuator

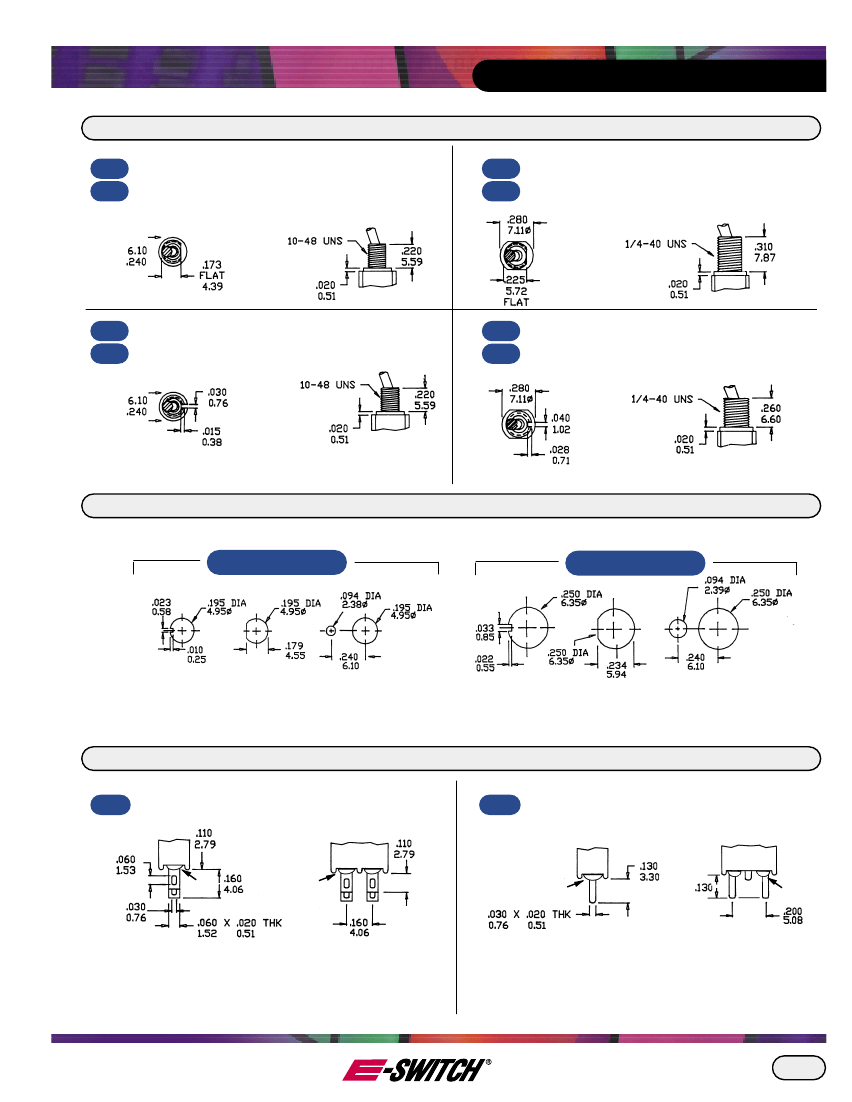

Bushing

Termination

Contact Material

Seal

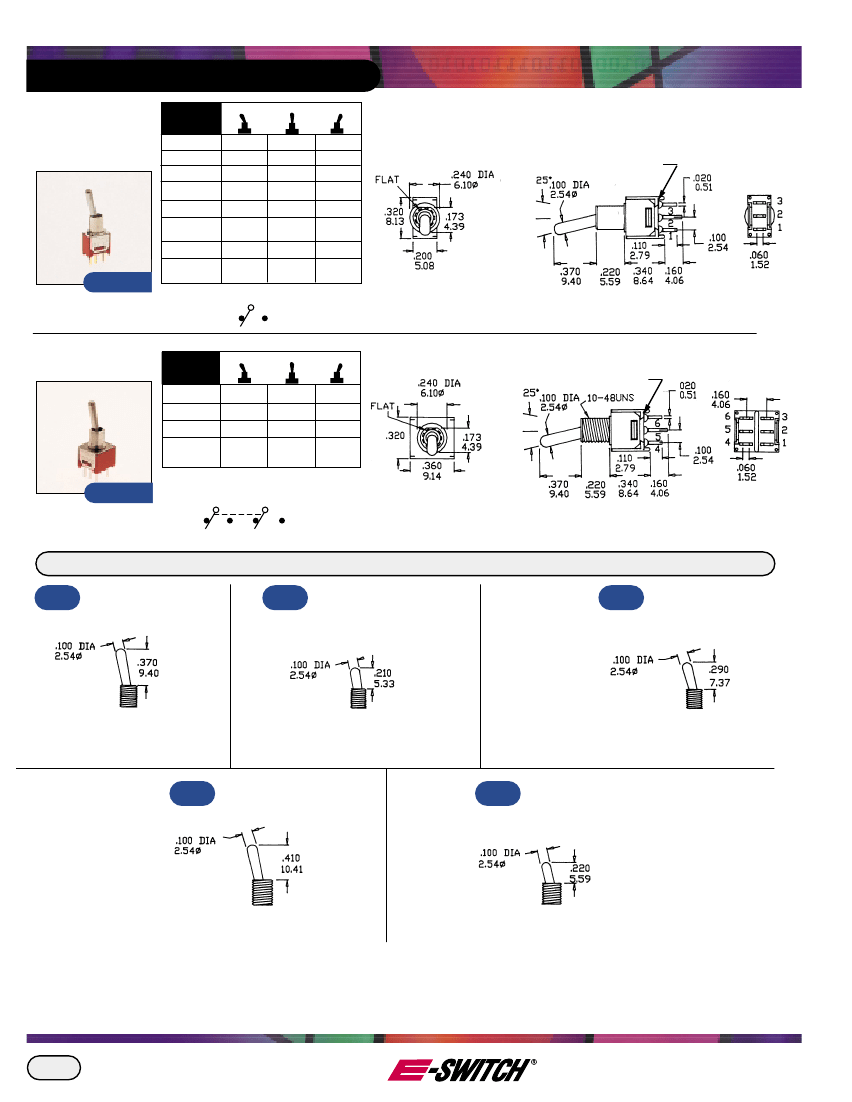

200

MSP1

MSP2

MSP3

MSP4

MSP5

MSP6

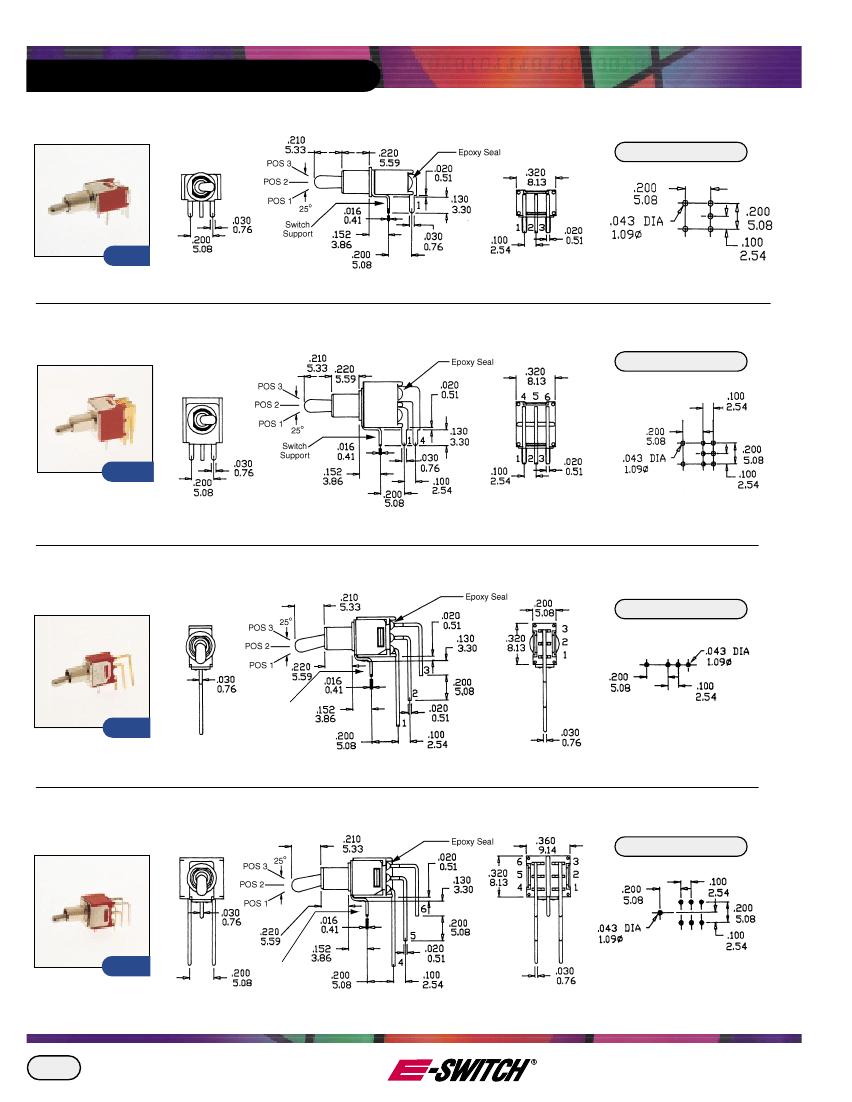

MDP1

MDP2

MDP3

VS2

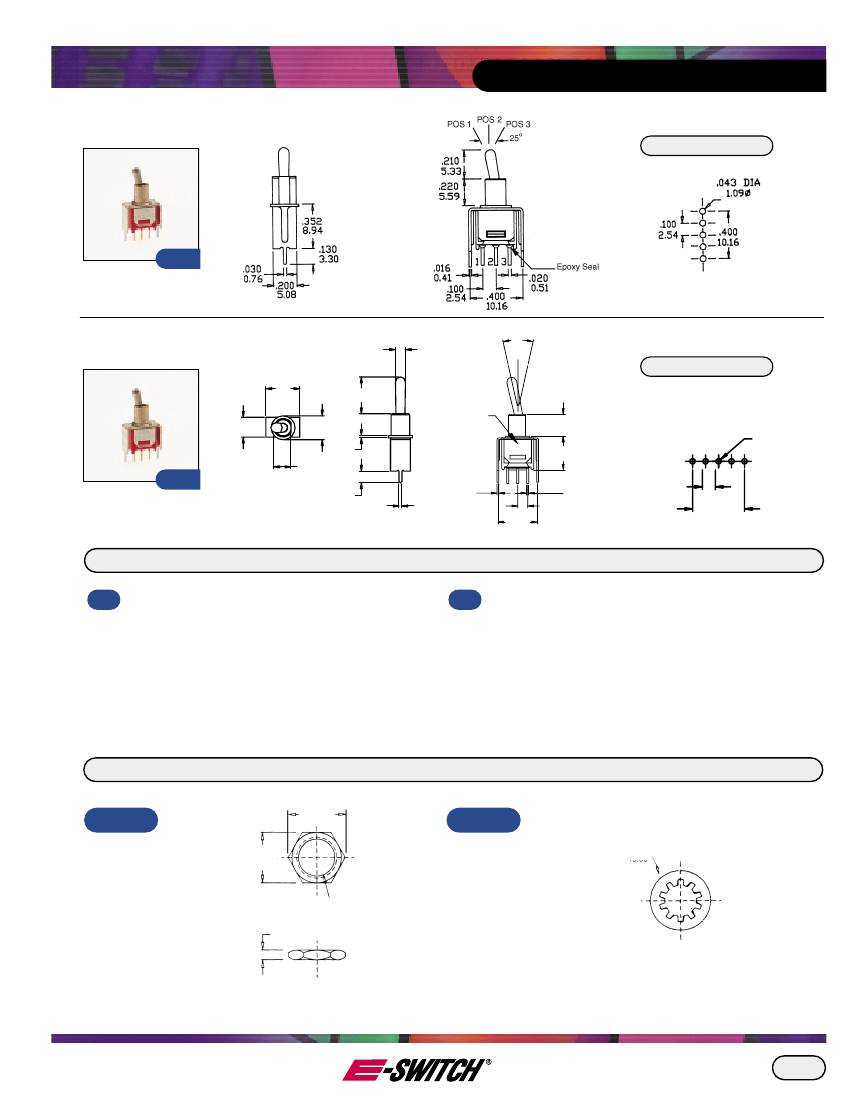

Q=Silver

R=Gold

Epoxy Seal at

Base of

Terminal

EXAMPLE

200

MSP1

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com

info@e-switch.com

200-MSP5-T1-B2-M1-Q-E Related Products

	200-MSP5-T1-B2-M1-Q-E	200-MDP1-TI-B1-M1-R-E	200-MSP5-T1-B4-M1-Q-E	200-MSP5-T1-B4-M1-R-E
Description	Toggle Switch, SPDT, On-off-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Toggle Actuator, Panel Mount	Toggle Switch, DPDT, On-on, Horizontal, Quick Connect Terminal, Toggle Actuator, Panel Mount	Toggle Switch, SPDT, On-off-(on), Momentary, 3A, 28VDC, Quick Connect Terminal, Toggle Actuator, Panel Mount	Toggle Switch, SPDT, On-off-(on), Momentary, Quick Connect Terminal, Toggle Actuator, Panel Mount
Maker	E-Switch	E-Switch	E-Switch	E-Switch
Reach Compliance Code	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator angle	25 deg	25 deg	25 deg	25 deg
Executor completed	CHROME	CHROME	CHROME	CHROME
Actuator length	0.37 inch	0.37 inch	0.37 inch	0.37 inch
Actuator material	BRASS	BRASS	BRASS	BRASS
Actuator type	TOGGLE	TOGGLE	TOGGLE	TOGGLE
Other features	APPROVAL UL, CSA	APPROVAL UL, CSA	APPROVAL UL, CSA	APPROVAL UL, CSA
body width	5.08 mm	8.128 mm	5.08 mm	5.08 mm
body height	8.636 mm	8.636 mm	8.636 mm	8.636 mm
Body length or diameter	8.128 mm	9.144 mm	8.128 mm	8.128 mm
Casing diameter	0.24 inch	0.24 inch	0.24 inch	0.24 inch
Nozzle length	0.22 inch	0.22 inch	0.22 inch	0.22 inch
Casing type	UNTHREADED	10-48	UNTHREADED	UNTHREADED
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	SILVER	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL
Contact function	ON-OFF-(ON)	ON-ON	ON-OFF-(ON)	ON-OFF-(ON)
Contact resistance	0.02 mΩ	0.02 mΩ	0.02 mΩ	0.02 mΩ
contact time	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	SILVER	GOLD OVER NICKEL	SILVER	GOLD OVER NICKEL
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	200	200	200	200
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
seal	EPOXY	EPOXY	EPOXY	EPOXY
surface mount	NO	NO	NO	NO
Switch action	MOMENTARY	HORIZONTAL	MOMENTARY	MOMENTARY
switch function	SPDT	DPDT	SPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
