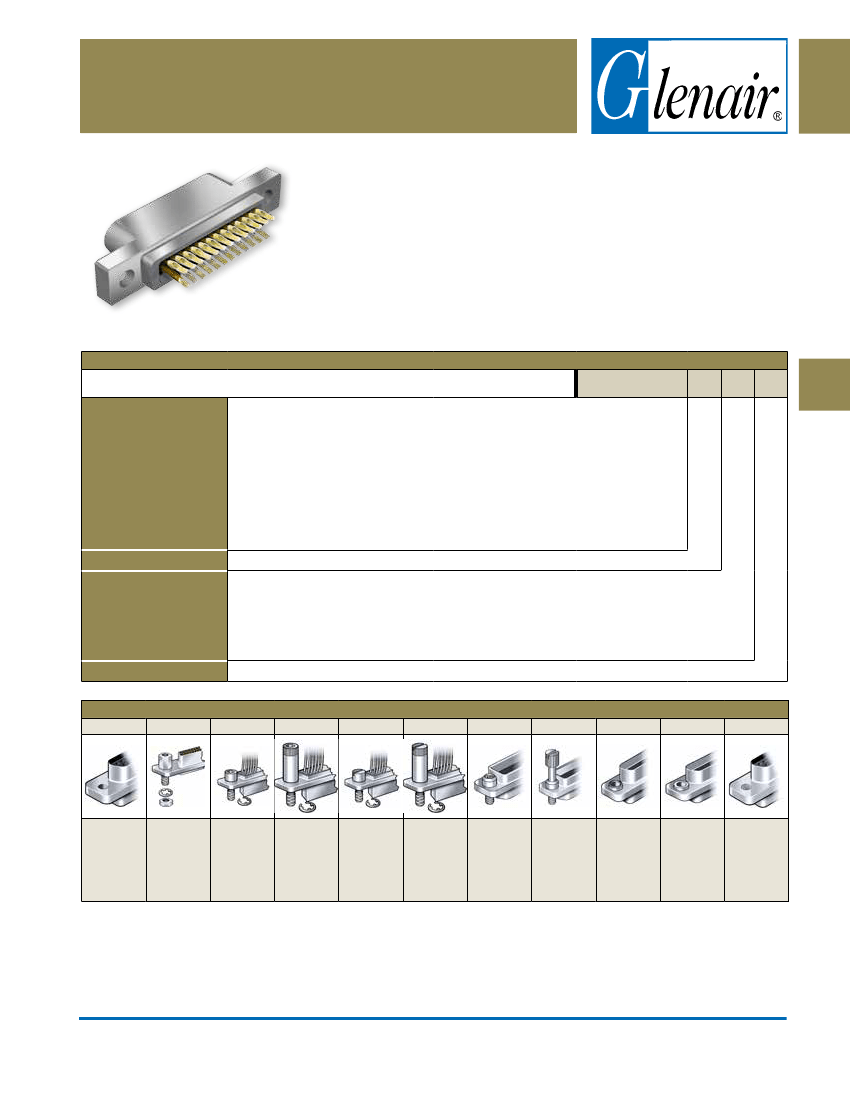

MLDM Low Profile Metal Shell Micro-D
Solder Cup Contact Termination
Low profile MLDM connectors have reduced flange height compared to
standard MWDM Micro-D connectors. These .050" pitch solder cup Micro-D
connectors accept #26 to #30 gage wire with standard contacts and up to size
#24 wire with “large bore” contacts. Contacts are factory-installed and potted
with epoxy. Pin contacts are gold-plated high performance TwistPin type and
are recessed into insulator to prevent damage. Socket contacts are gold plated,
machined copper alloy. Machined aluminum shell. Glass-filled high temperature
LCP thermoplastic insulators withstand soldering heat. Meets performance
requirements of MIL-DTL-83513. Available with 9 to 51 contacts. 3 A., 600 Vac,
-55°C to +150°C.
How To order Solder Cup Connector
Sample Part number
MLDM1L
Low Profile Metal Shell Micro-D with
Yellow Chromate over Cadmium Shell
Finish (Good corrosion protection, not
RoHS compliant)
MLDM2L
Low Profile Metal Shell Micro-D with
Electroless Nickel Shell Finish (RoHS
compliant, preferred for space vehicles
and protected environments)
9, 15, 21, 25, 31, 37, 51, 51-2
(See Table II)
Size #26 Solder Cup Contacts (Standard)
PS,
- Pin
SS,
- Socket
Size #24 Solder Cup Contacts
TS,
- Socket
nS,
- Pin
B, P, M, M1, S, S1, L, K, F, R, H
(See Table I)
MLDM2L
MLDM32L
Low Profile Metal Shell Micro-D with Black Zinc
Nickel Shell Finish (RoHS compliant, preferred for
tactical equipment where a black finish and good
corrosion protection are required)
MLDM33L
Low Profile Metal Shell Micro-D with Nickel-
Fluorocarbon Shell Finish (RoHS compliant, excellent
corrosion protection, grey color)
-25
PS
B
Series
Contact Layout
Contact Type
Mounting Hardware
Table I: Mounting Hardware
B
P
M
M1
S
S1
L
K
F
R
H
M
N
P
Q
INDEX
Thru-Hole
Jackpost
Hex Head
Jackscrew
Hex Head
Jackscrew,
Extended
Slot Head
Jackscrew
Slot Head
Jackscrew,
Extended
Hex Head
Jackscrew
Non-
Removable
Slot Head Float Mount Float Mount
Jackscrew
For Front
For Rear
Non-
Panel
Panel
Removable Mounting
Mounting
Extended
Threaded
Insert
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-3
E-Mail: sales@glenair.com
Micro-D Double
and Triple Row
A
B
C
D
E
F
G
H
J
K
