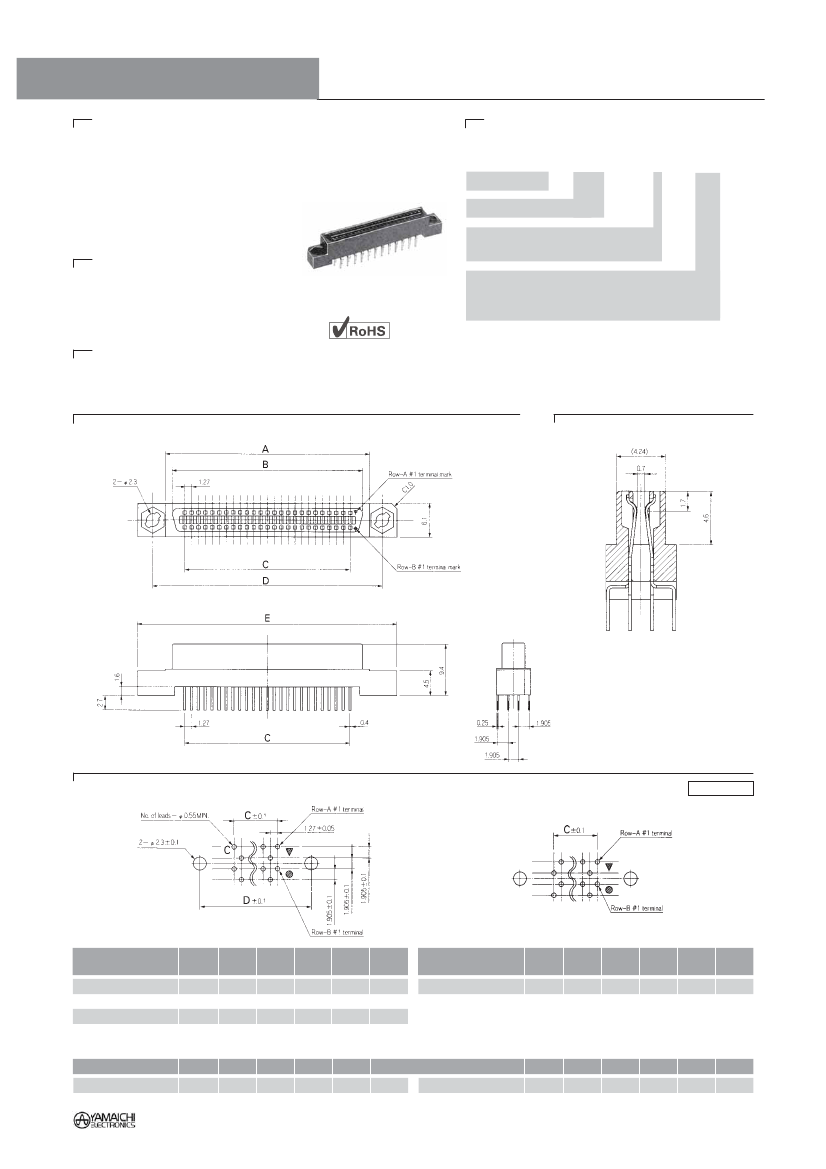

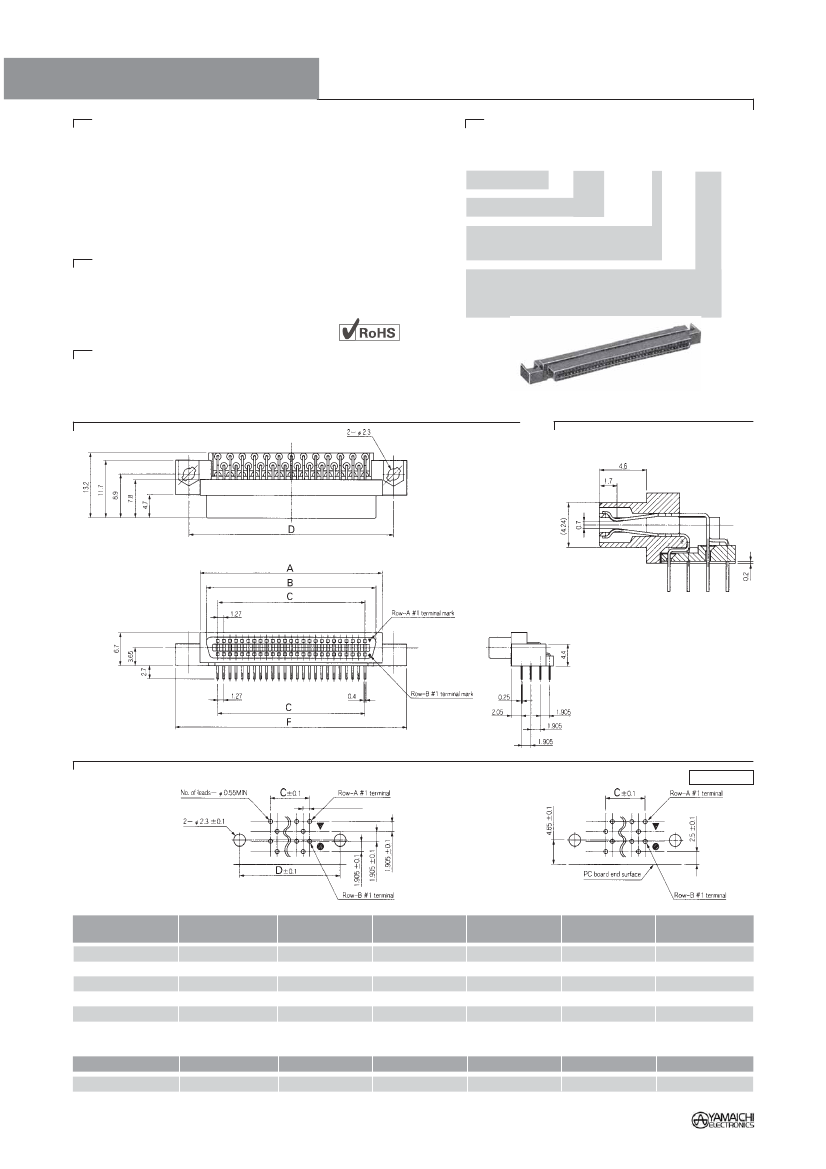

ND Series
(Board-to-Board)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Mating Cycles:
Soldering Temp.:
90° Solder Dip Socket
(1.27mm Pitch)
Part Number
(Details)
500MΩ min. at 500V DC
500V AC rms for 1 minute
35mΩ max. at 10mA
0.5A
–55°C to +85°C
500 insertions
230° C / 10 sec.
NDS
Series
(socket)
No. of Leads
050 - 002 - BF
Terminal Type:
2 = Right Angle Solder Dip
Contact Plating:
Mating Face - Au
(0.3µm min.)
over Ni
Solder Terminals - Au
(0.05µm min.)
over Ni
Materials and Finish
Housing: PPS (glass filled), UL 94V-0 rated
Contacts: Copper Alloy
Plating: Mating Face Contacts - Au over Ni
Solder Terminals - Au over Ni
Features
Low insertion and extraction forces due to bellows type contacts
Outline Dimensions
Contact Details
Recommended PCB Layout
For 50 Leads only
For All Other Leads
Top View
Standard types
Part Number
NDS036-002-BF
NDS040-002-BF
NDS050-002-BF
NDS100-002-BF
NDS120-002-BF
NDS128-002-BF
No. of Leads
36
40
50
100
120
128
A
28.75
31.29
37.64
69.39
82.09
87.17
B
26.17
28.71
35.06
66.81
79.51
84.59
C
21.59
24.13
30.48
62.23
74.93
80.01
D
33.43
35.97
42.32
74.04
86.77
91.85
E
38.93
41.47
47.82
79.57
92.27
97.35
For the following versions below please contact Yamaichi, minimum order quantity may be required
NDS068-002-BF
NDS080-002-BF
Sockets and Connectors
68
80
49.07
56.69
46.49
54.11
41.91
49.53
53.75
61.37
59.25
66.87
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
ND Series
(Board-to-Board)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Mating Cycles:
Soldering Temp.:
180° Solder Dip Socket
(1.27mm Pitch)
Part Number
(Details)
500MΩ min. at 500 V DC
500 V AC rms for 1 minute
35mΩ max. at 10mA
0.5A
–55°C to +85°C
500 insertions
230° C / 10 sec.
NDS
Series
(socket)
050 - 004 - BF
No. of Leads
Terminal Type:
4 = Straight Solder Dip
Contact Plating:
Mating Face - Au
(0.3µm min.)
over Ni
Solder Terminals - Au
(0.05µm min.)
over Ni
Materials and Finish
Housing: PPS (glass filled), UL 94V-0 rated
Contacts: Copper Alloy
Plating: Mating Face Contacts - Au over Ni
Solder Terminals - Au over Ni
Features
Low insertion and extraction forces due to bellows type contacts
Outline Dimensions
Contact Details
Recommended PCB Layout
For 50 Leads only
For All Other Leads
Top View
Standard types
Part Number
NDS036-004-BF
NDS040-004-BF
NDS050-004-BF
No. of
Leads
36
40
50
A
28.75
31.29
37.64
B
26.17
28.71
35.06
C
21.59
24.13
30.48
D
33.43
35.97
42.32
E
38.93
41.47
47.82
Part Number
NDS068-004-BF
NDS128-004-BF
No. of
Leads
68
128
A
49.07
87.17
B
46.49
84.59
C
41.91
80.01
D
53.75
91.85
E
59.25
97.35
For the following versions below please contact Yamaichi, minimum order quantity may be required
NDS060-004-BF
NDS080-004-BF
60
80
43.99
56.69
41.41
54.11
36.83
49.53
48.67
61.37
54.17
66.87
NDS100-004-BF
NDS120-004-BF
100
120
69.39
82.09
66.81
79.51
62.23
74.93
74.04
86.77
79.57
92.27
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Sockets and Connectors
