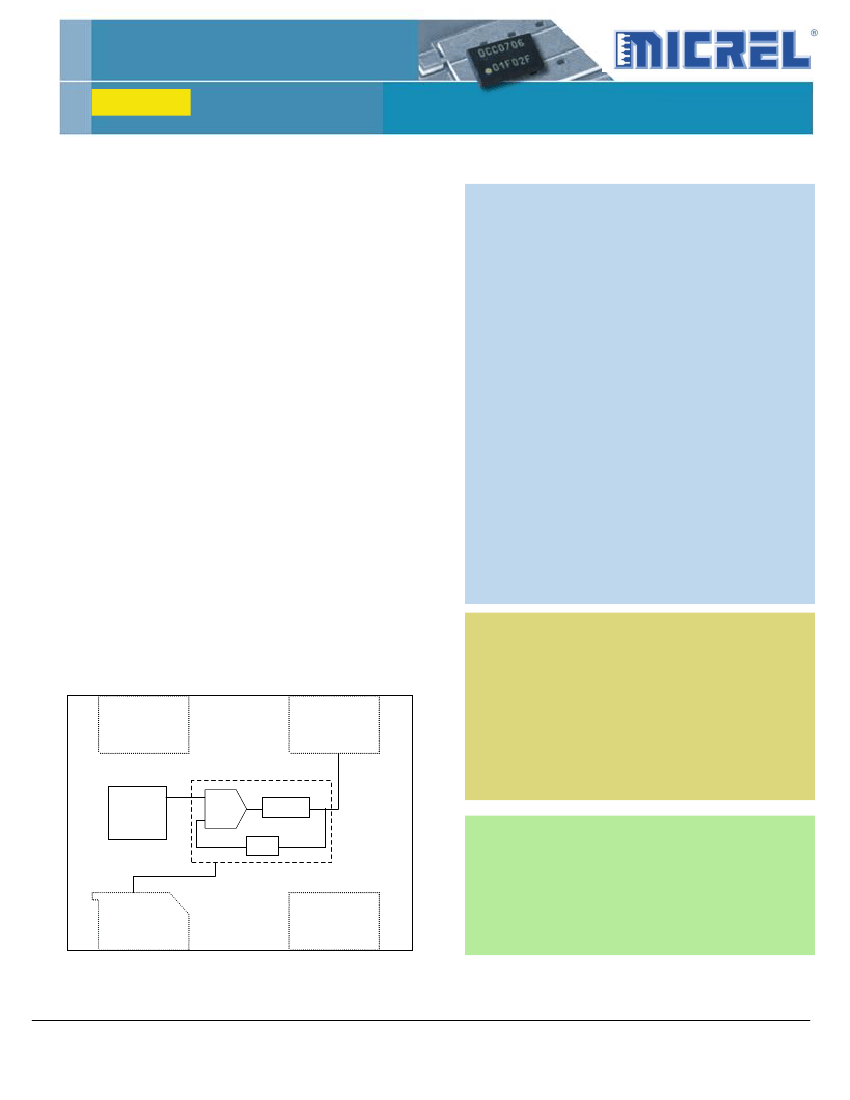

DSC8001 Series
1.8~3.3V
Programmable Low-Power Precision CMOS Oscillator
General Description
The DSC8001 is a programmable silicon MEMS
based CMOS oscillator offering excellent jitter
and stability performance over a wide range of
supply voltages and temperatures. The device
operates from 1 to 150MHz in increments of
100Hz (up to four decimal point resolution) with
supply voltages between 1.8 to 3.3 Volts and
extended temperatures from -40ºC to 105ºC.
The DSC8001 incorporates an all silicon
resonator that is extremely robust and nearly
immune to stress related fractures, common to
crystal based oscillators. Without sacrificing the
performance and stability required of today’s
systems, a crystal-less design allows for a
higher level of reliability, making the DSC8001
ideal for rugged, industrial, and portable
applications where stress, shock, and vibration
can damage quartz crystal based systems.
Available in industry standard packages, the
DSC8001 can be “dropped-in” to the same PCB
footprint as standard crystal oscillators.
Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
o
±10 PPM, ±25 PPM, ±50 PPM
Operating voltage
o
1.7 to 3.6V
Operating Temperature Range
o
Ext. Industrial -40ºC to 105ºC
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
o
Commercial 0ºC to 70ºC
Low Operating and Standby Current
o
5mA Operating (40MHz)
o
15uA Standby
Ultra Miniature Footprint
o
2.5 x 2.0 x 0.85 mm
o
3.2 x 2.5 x 0.85 mm
o
5.0 x 3.2 x 0.85 mm
o
7.0 x 5.0 x 0.85 mm
MIL-STD 883 Shock and Vibration
Resistant
Pb Free, RoHS, Reach SVHC Compliant
AEC-Q100 Reliability Qualified
Benefits
Block Diagram
Pin for pin “drop in” replacement for
industry standard oscillators
Semiconductor level reliability,
significantly higher than quartz
Frequency Resolution to 4 decimals
Longer Battery Life / Reduced Power
Compact Plastic package
Cost Effective
V
DD
Output
Resonator
PFD
VCO
Applications
Frac-N
PLL
Standby#
(pin1)
GND
Mobile Applications
Consumer Electronics
Portable Electronics
DVR, CCTV, Surveillance Cameras
Low Profile Applications
Industrial Applications
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 1 |
MK-Q-B-P-D-090110-03-2
DSC8001 Series
1.8~3.3V
Programmable Low-Power Precision CMOS Oscillator
Absolute Maximum Ratings
1
Item
Supply Voltage
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min.
-0.3
-0.3
-
-55
-
-
4000
200
1500
Max
+4.0
VDD+0.3
+150
+150
+260
Unit
V
V
°C
°C
°C
V
40 sec max.
Condition
Ordering Code
DSC8001
Family
Package, Temp
& Stability
Tape/
Reel
CE1
-
T
* See Ordering Information for details
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Option 4
Symbol
V
DD
Z
L
Range
1.71 – 3.60V
R>10KΩ, C≤15pF
-40 to +105 °C
-40 to +85 °C
-20 to +70 °C
0 to +70 °C
T
Specifications
(VDD
= 1.8 to 3.3v) T
A
=85
0
C unless otherwise specified
Parameter
Frequency
Symbol
f
0
Condition
Single Frequency
Includes frequency
variations due to initial
tolerance, temperature
and power supply voltage
1 year @25°C
T=25°C
-4mA
4mA
T=25°C
0.8*V
DD
-
1.0
20
45
0.75*V
DD
-
Min
1
Typ
Max
150
Unit
MHz
Frequency Tolerance
Δf
±10,±25,±50
ppm
Aging
Supply Current, standby
Output Logic Levels
Output logic high
Output logic low
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input logic high
Input logic low
Δf
I
DD
V
OH
V
OL
t
SU
t
DA
SYM
V
IH
V
IL
±5
15
-
0.2*V
DD
1.3
100
55
-
0.25* V
DD
ppm
uA
Volts
ms
ns
%
Volts
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 2 |
MK-Q-B-P-D-090110-03-2
DSC8001 Series
VDD = 1.8v
Parameter
Supply Current, no load
Output Transition time
Rise Time
Fall Time
1.8~3.3V
Programmable Low-Power Precision CMOS Oscillator
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
C
L
=15pF; T=25°C
20%/80%*V
DD
F = 100MHz
3
Min
Typ
6.0
6.5
7.2
8.3
1.8
1.0
60
Max
6.3
6.9
7.5
9.1
3
3
Unit
mA
t
R
t
F
J
CC
ns
Ps
Jitter, Max Cycle to Cycle
VDD = 2.5v
Parameter
Supply Current, no load
Output Transition time
Rise Time
Fall Time
Jitter, Max Cycle to Cycle
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
C
L
=15pF; T=25°C
20%/80%*V
DD
F = 100MHz
3
Min
Typ
6.0
6.7
7.7
9.6
1.0
0.9
50
Max
6.3
7.0
8.1
10.6
2
2
Unit
mA
t
R
t
F
J
CC
ns
ps
VDD = 3.3v
Parameter
Supply Current, no load
Output Transition time
Rise Time
Fall Time
Jitter, Max Cycle to Cycle
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
C
L
=15pF; T=25°C
20%/80%*V
DD
F = 100MHz
3
Min
Typ
6.0
6.8
8.2
10.8
1.0
0.9
50
Max
6.3
7.2
8.7
12.2
2
2
Unit
mA
t
R
t
F
J
CC
ns
ps
Notes:
1.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be
operated beyond these limits.
2.
t
SU
is time to stable output frequency after V
DD
is applied. t
SU
and t
EN
(after EN is asserted) are identical values.
3.
Measured over 50k clock cycles.
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 3 |
MK-Q-B-P-D-090110-03-2
DSC8001 Series
1.8~3.3V
Programmable Low-Power Precision CMOS Oscillator

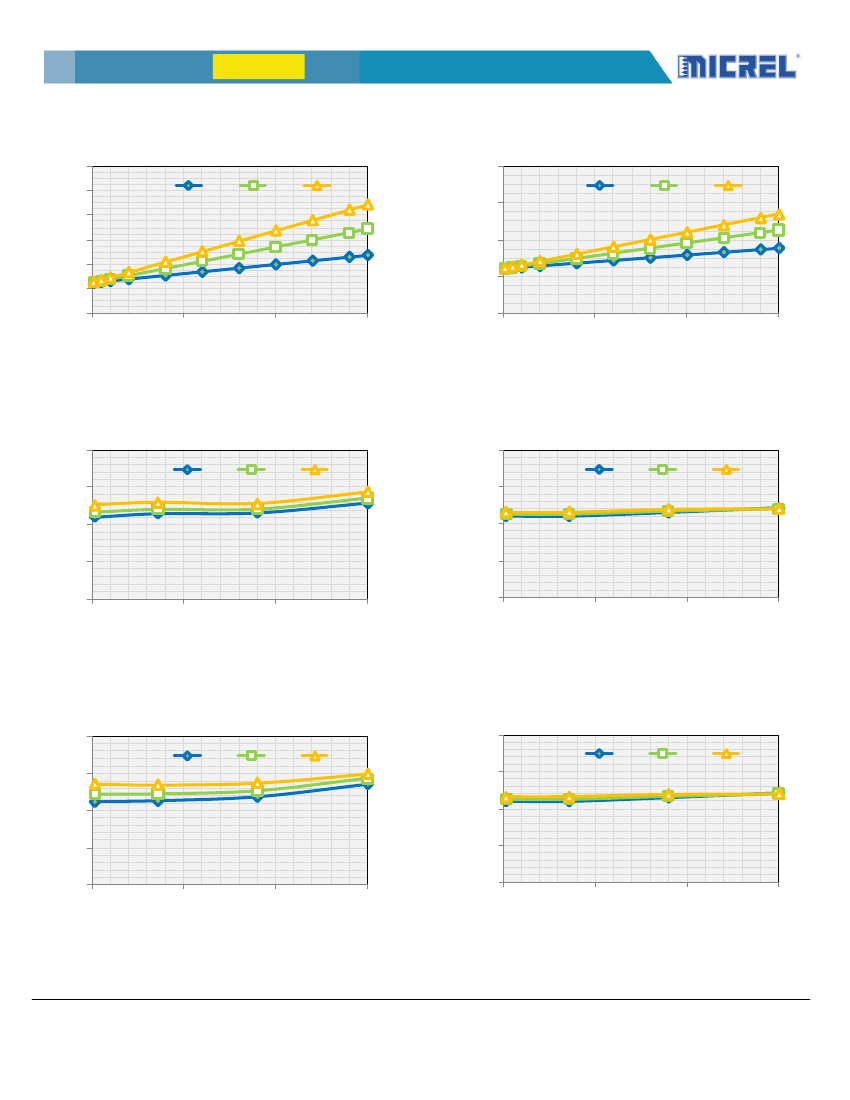

Nominal Performance Characteristics
Supply Current
24
Supply Current (mA)
Supply Current (mA)
20
Supply Current
16
8pF
15pF
Vdd = 1.65V
Ta = 25°C
0pF
8pF
15pF
Vdd = 3.65V
Ta = 25°C
0pF
16
12
12
8
8
4
4
0
0
0
50
100
Frequency (MHz)
150
0
50
100
Frequency (MHz)
150
Rise Time
2
1.5
1
2
Fall Time
25°C
85°C
1.5
Vdd = 3.3V
-40°C
Vdd = 3.3V
-40°C
25°C
85°C
Rise Time (ns)
Fall Time (ns)
1
0.5
0
0.5
0
0
50
100
Frequency (MHz)
150
0
50
100
Frequency (MHz)
150
Rise Time
2
1.5
Rise Time (ns)
1
0.5
0
0
50
100
Frequency (MHz)
150
Vdd = 1.8V
-40°C
25°C
85°C
1.5
2
Fall Time
Vdd = 1.8V
-40°C
25°C
85°C
Fall Time (ns)
1
0.5
0
0
50
100
Frequency (MHz)
150
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 4 |
MK-Q-B-P-D-090110-03-2
DSC8001 Series
Output Waveform
1.8~3.3V
Programmable Low-Power Precision CMOS Oscillator
t
R
80%
t
F
Output
50%
20%
1/f
o
t
DA
V
OH
t
EN
Standby#
V
OL
Standby Function
Standby#
(pin 1)
Output
(pin 3)
Hi Level
Open
(no connect)
Low Level
Output ON
Output ON
High Impedance
Test Circuit
I
DD
4
1
V
DD
0.01uF
*V
SD
3
2
15pF
*V
SD
= Standby# Logic Level Input
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 5 |
MK-Q-B-P-D-090110-03-2
