20021823-04564T4LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 20021823-04564T4LF

Preview

20021823-04564T4LF: DescriptionBoard Stacking Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021823-04564T4LF Overview

Board Stacking Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle,

20021823-04564T4LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.133 inch
subject depth	0.177 inch
body length	1.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	20021823
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

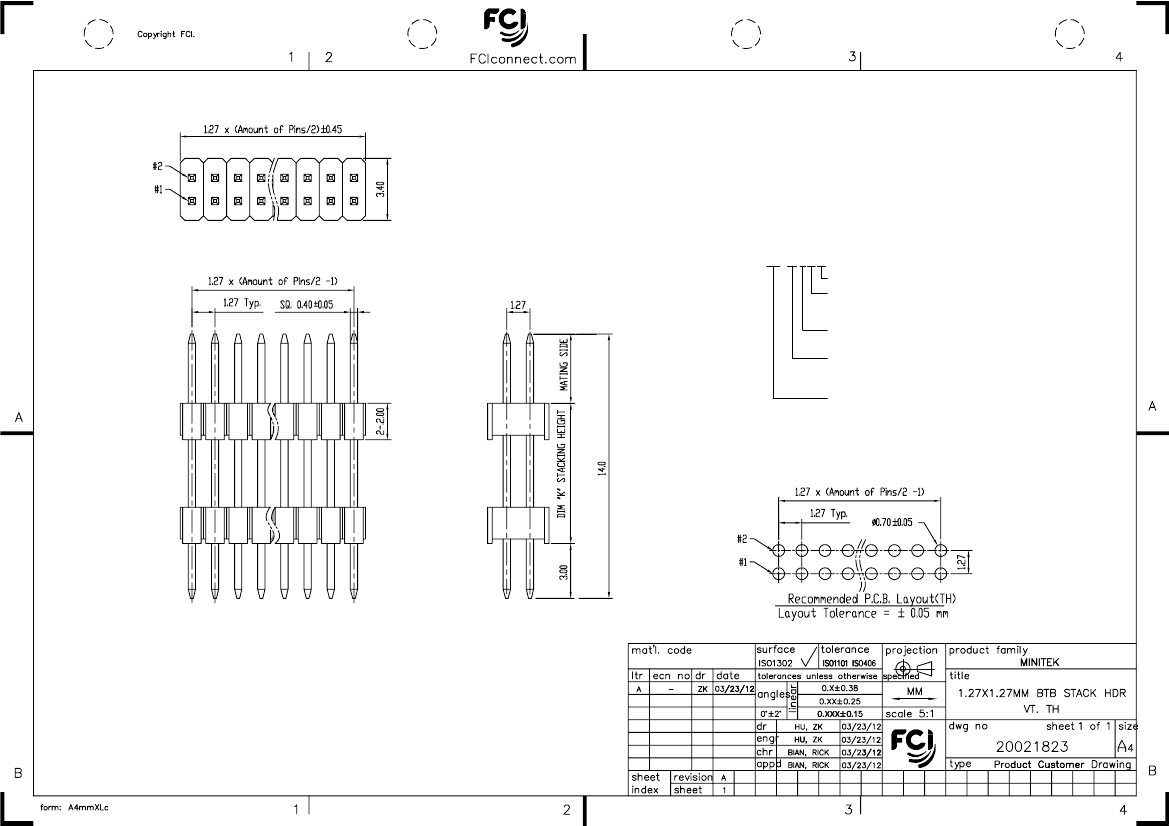

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP THERMAL PLASTIC, UL94-V0

TERMINAL: COPPER ALLOY

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u") MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1517

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260°C

PEAK TEMP. FOR 10 SEC. IN A WAVE SOLDER APPLICATION.

5. MATING SIDE LENGTH: 2.50MM MIN.

6. PRODUCT NUMBERING:

200218 2 3 - XXX XX X X LF

LEAD FREE

PLATING:

1:G/F ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U") GOLD AT CONTACT

PACKING

T: TUBE

PIN COUNT

06, 08,..., 98, A0

( EVERY EVEN PIN )

STACK HEIGTH "K"

EXAMPLE: 045=4.5MM

IN 0.5MM INCREMENT

PDS: Rev :A

STATUS:Released

Printed: Apr 01, 2012
