50001-5022HLF datasheet, PDF - EEWORLD Datasheet

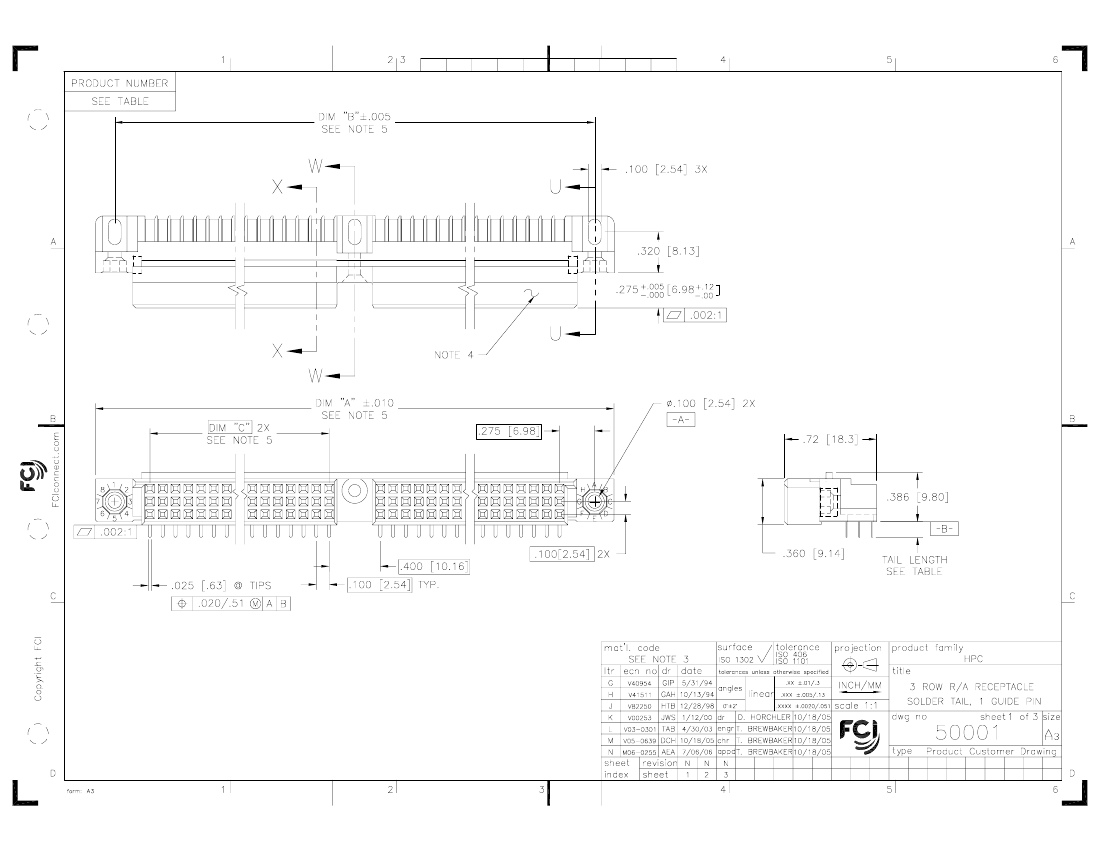

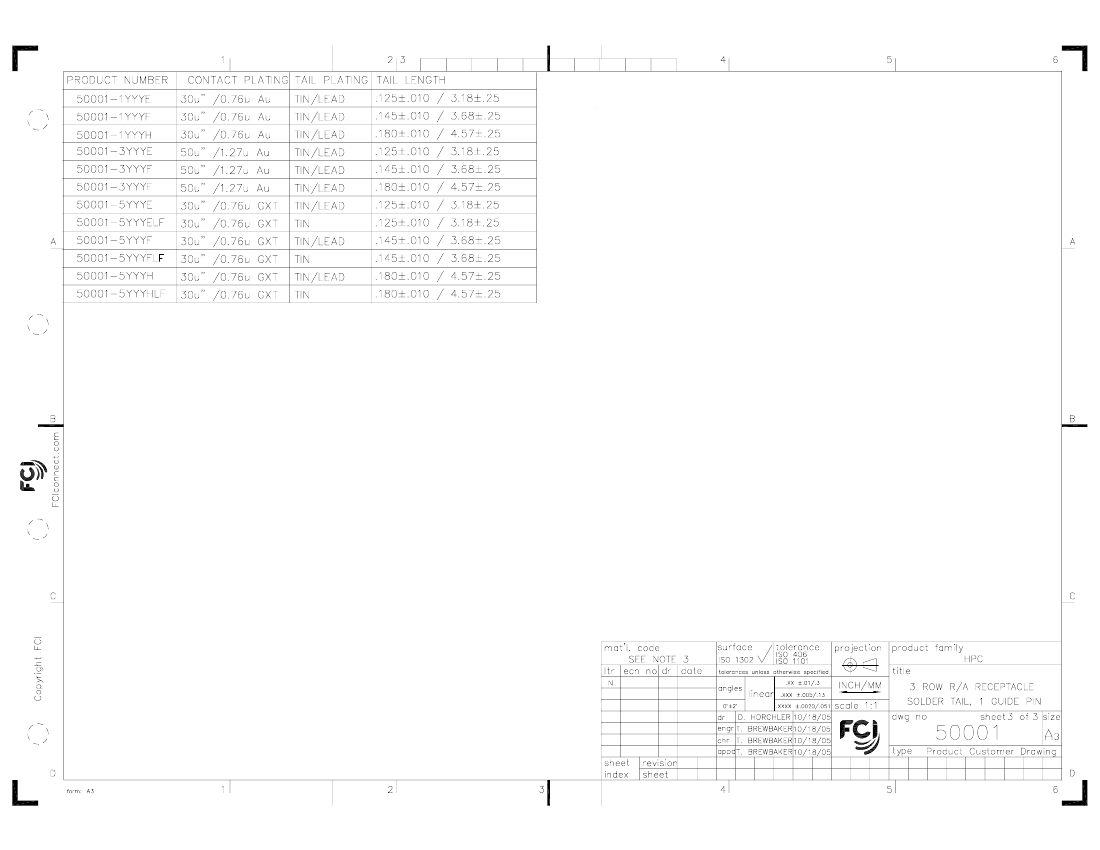

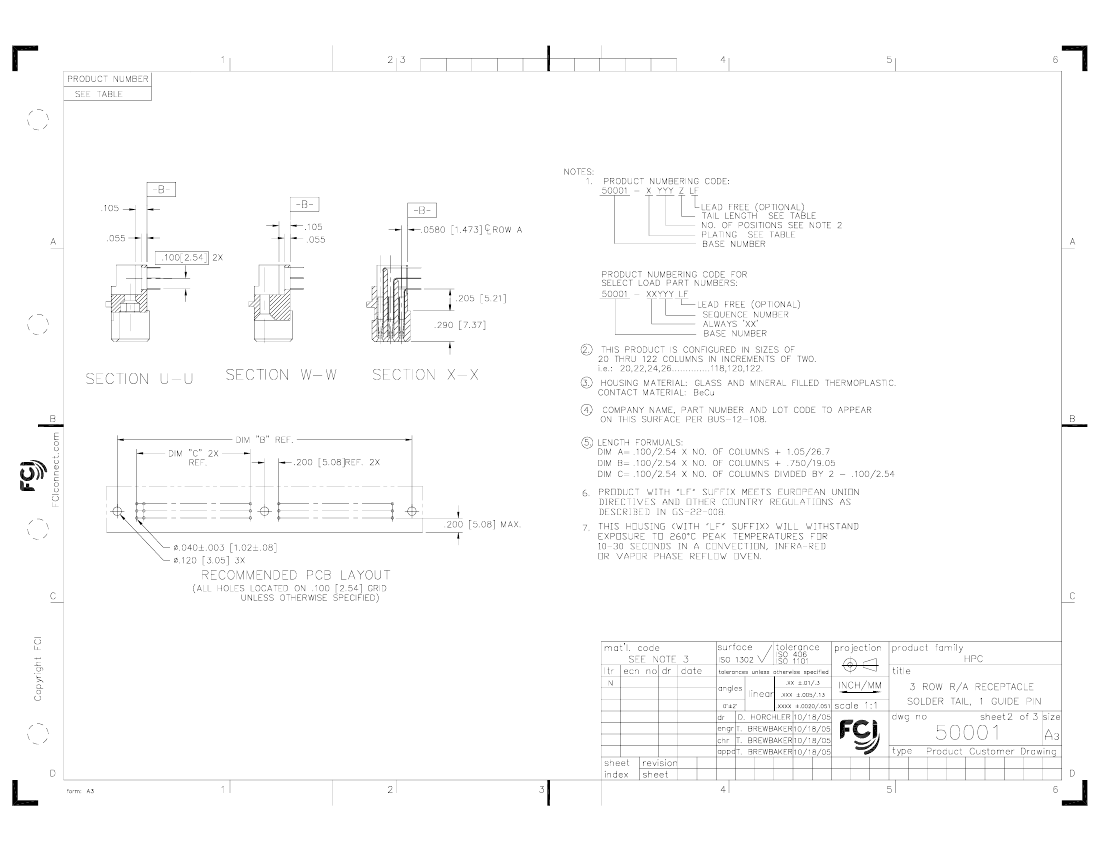

50001-5022HLF: DescriptionBoard Connector, 66 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size179KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

50001-5022HLF Overview

Board Connector, 66 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2144507428
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.36 inch
subject depth	0.72 inch
body length	2.253 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	50001
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66

PDM: Rev:N

STATUS:

Released

Printed: May 13, 2011
