Semiconductor
SR5323-U / SR5323-U(B)
Ultra Brightness LED Lamp
Features
•
•
•
•
Colorless transparency lens type
φ5mm(T-13/4)
all plastic mold type
Wide viewing angle
Ultra luminosity

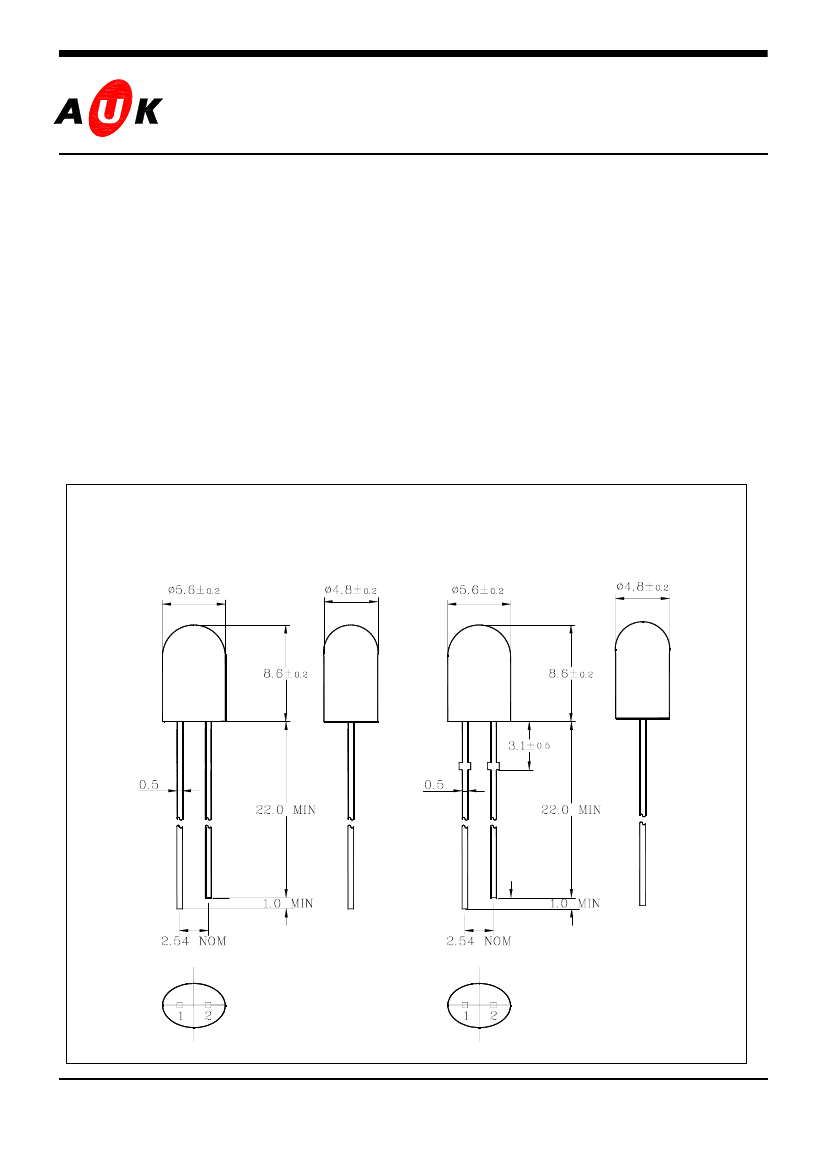

Outline Dimensions
STRAIGHT TYPE
STOPPER TYPE
unit :
mm
PIN Connections
1.Anode
2.Cathode
KLR-0005-000
1
SR5323-U / SR5323-U(B)
Absolute maximum ratings
Characteristic
Power Dissipation
Forward Current
*
1
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
Ratings
75
30
50
3
-20∼85
-30∼100
Unit
mW
mA
mA
V
℃
℃
260℃ for 3 seconds
*
2
Soldering Temperature
T
sol
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package
Electrical Characteristics
Characteristic
Forward Voltage
Luminous Intensity
Peak Wavelength
Spectrum Bandwidth
Reverse Current
*
3
Half Angle
Symbol
V
F
I
V
Test Condition
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
=4V
Min. Typ. Max.
-
-
-
-
-
-
-
1.85
650
660
20
-
±30
±15
2.5
-
-
-
10
-
-
Unit
V
mcd
nm
nm
uA
deg
λ
P
Δ
λ
I
R
θ
1/2
X
Y
I
F
= 20mA
*3.
θ
1/2
is the off-axis angle where the luminous intensity is
1/2
the peak intensity
KLR-0005-000
2
SR5323-U / SR5323-U(B)

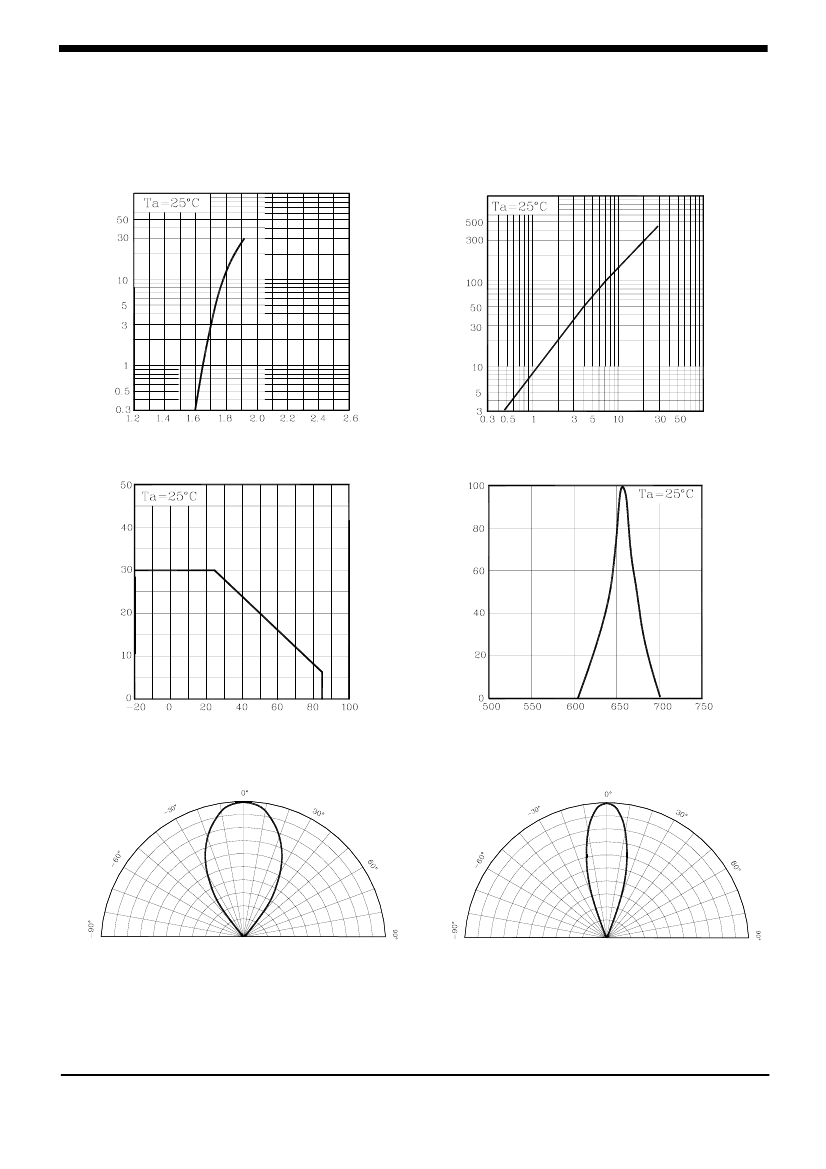

Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
Forward Current I
F
[mA]
Forward Voltage V
F
[V]
Luminous Intensity I
v
[mcd]
Forward
Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Current I
F
[mA]
Forward
Ambient Temperature Ta [℃]
Relative Intensity [%]
Wavelength
λ
[nm]
Fig. 5-1 Radiation Diagram(X)
Fig. 5-2 Radiation Diagram(Y)
100
50
0
50
100
100
50
0
50
100
Relative Luminous Intensity Iv [%]
Relative Luminous Intensity Iv [%]
KLR-0005-000
3
