SR520
THRU
SR5100
5.0 AMP SCHOTTKY BARRIER RECTIFIERS
VOLTAGE RANGE
20 to 100 Volts
CURRENT
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
5.0 Amperes
DO-27
.220(5.6)
.197(5.0)
DIA.
1.0(25.4)
MIN.
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
.375(9.5)
.285(7.2)
.052(1.3)
.048(1.2)
DIA.
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 5.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note1)
Typical Thermal Resistance R
θ
JA (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
SR520 SR530 SR540 SR550 SR560 SR580 SR5100 UNITS
20
14
20
30
21
30
40
28
40
50
35
50
5.0
150
0.55
5.0
50
380
10
-65
+125
-65
+150
-65
+150
0.70
0.85
60
42
60
80
56
80
100
70
100
V
V
V
A
A
V
mA
mA
pF
C/W
C
C
Ta=100 C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length.
32

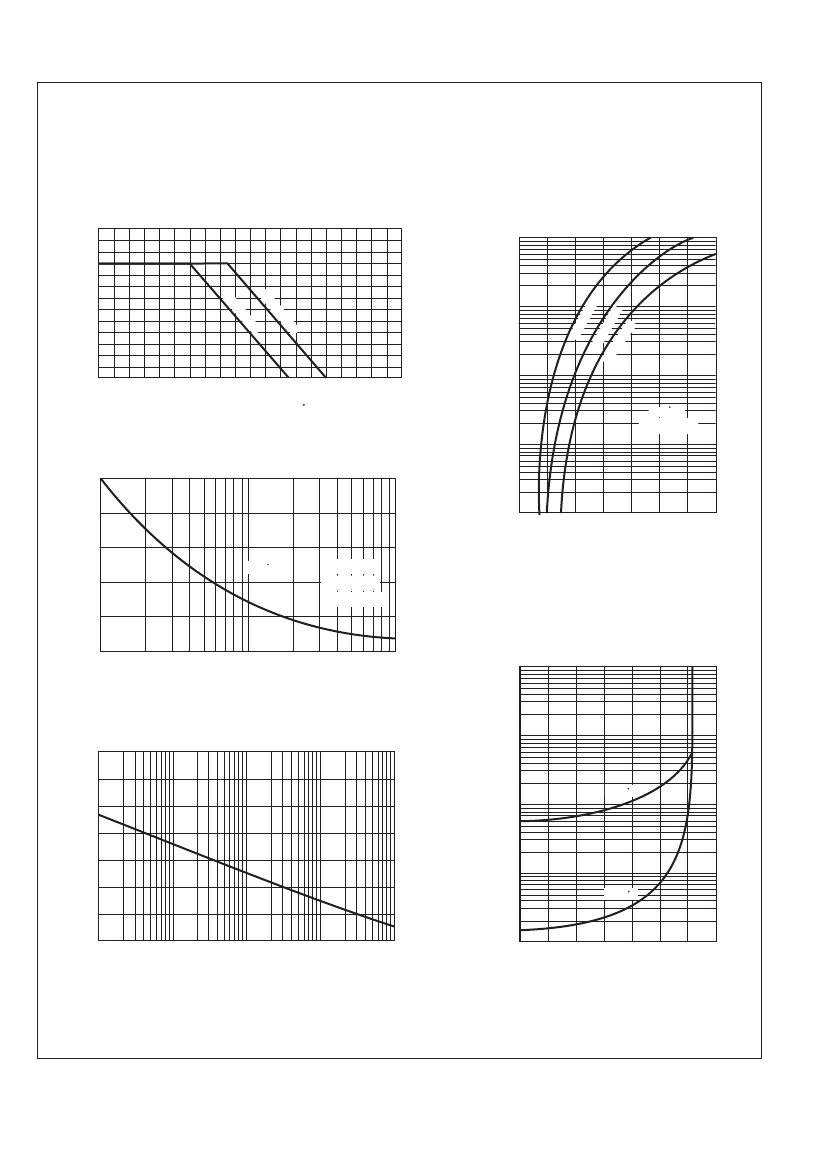

RATING AND CHARACTERISTIC CURVES (SR520 THRU SR5100)
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
6.0
5.0
50
INSTANTANEOUS FORWARD CURRENT,(A)
4.0
SR
5
SR
55
SR
0~
52
~S
R5
50
SR
5
60
3.0
2.0
1.0
0
10
SR
54
0
SR
0~
0
20
40
60
80
100
120
140
160
180
200
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
AMBIENT TEMPERATURE,( C)
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
0.1
PEAK FORWARD SURGE CURRENT,(A)
120
.01
.1
.3
.5
.7
SR
5
80
3.0
~S
R
51
00
20
R
~S
54
0
51
00
.9
1.1
1.3
1.5
90
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
FORWARD VOLTAGE,(V)
60
30
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
1400
1200
1000
800
600
400
200
0
JUNCTION CAPACITANCE,(pF)
REVERSE LEAKAGE CURRENT, (mA)
10
Tj=75 C
1.0
.1
Tj=25 C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
33
