86092325113788000E datasheet, PDF

86092325113788000E: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86092325113788000E Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

2 3

XXX XX XX XXX XXXX YY XX

FCIconnect.com

linear

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

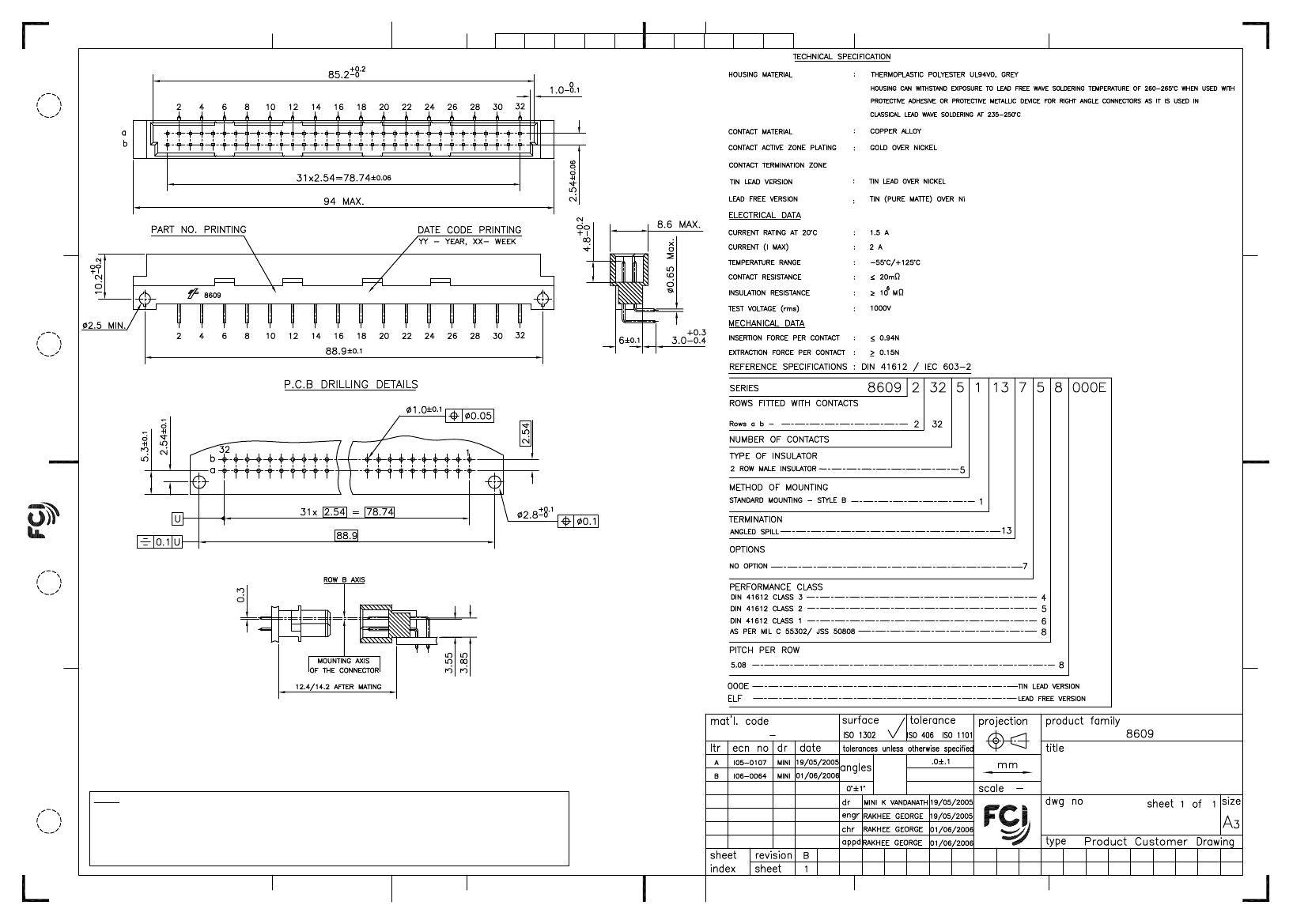

DIN STANDARD HEADER

ANGLED SPILL DIN 41612 STYLE-B

C-8609-2079

STATUS:

Released

Printed: Oct 30, 2007

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

PDM: Rev:B

	86092325113788000E	86092325113758000E	86092325113748000E
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
Reach Compliance Code	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	8609	8609	8609
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32
Maker	Amphenol	-	Amphenol
Other features	-	STANDARD: DIN 41612	STANDARD: DIN 41612
