Part Number

Search

98520-545023

Description
Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle,
CategoryThe connector    The connector
File Size339KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

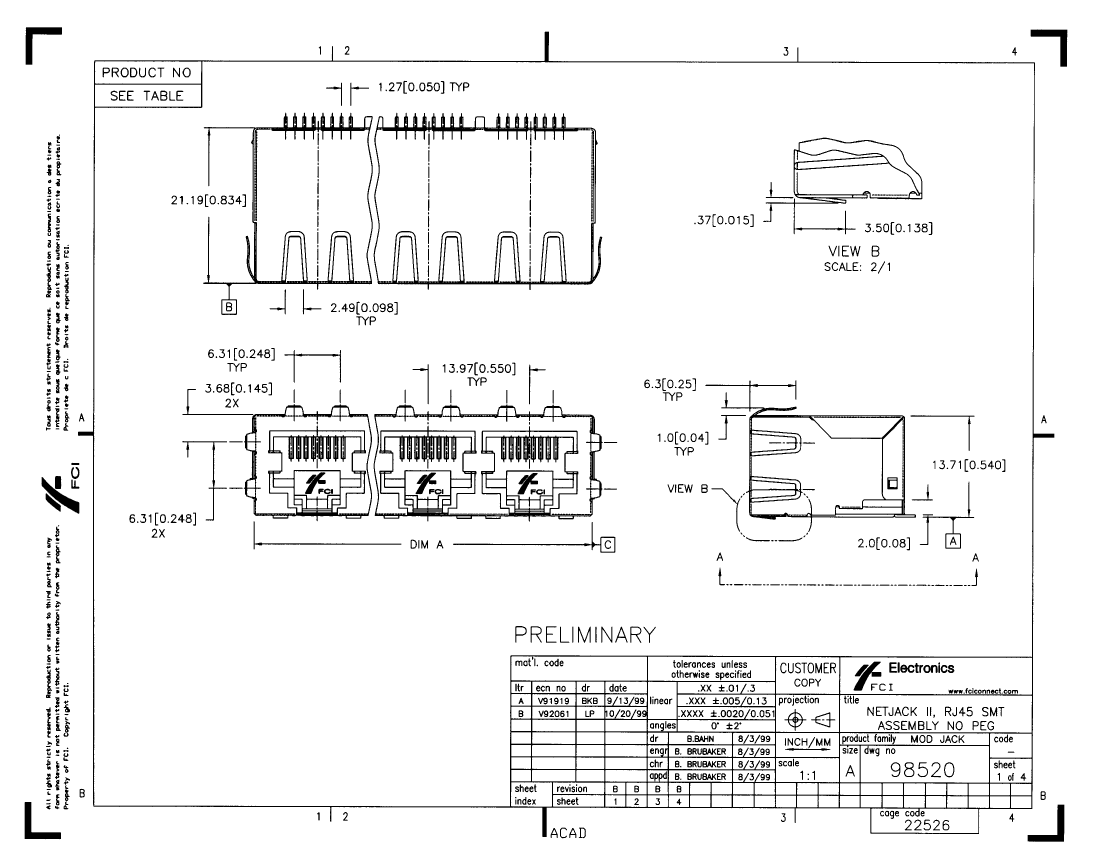

98520-545023 Overview

Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle,

98520-545023 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant

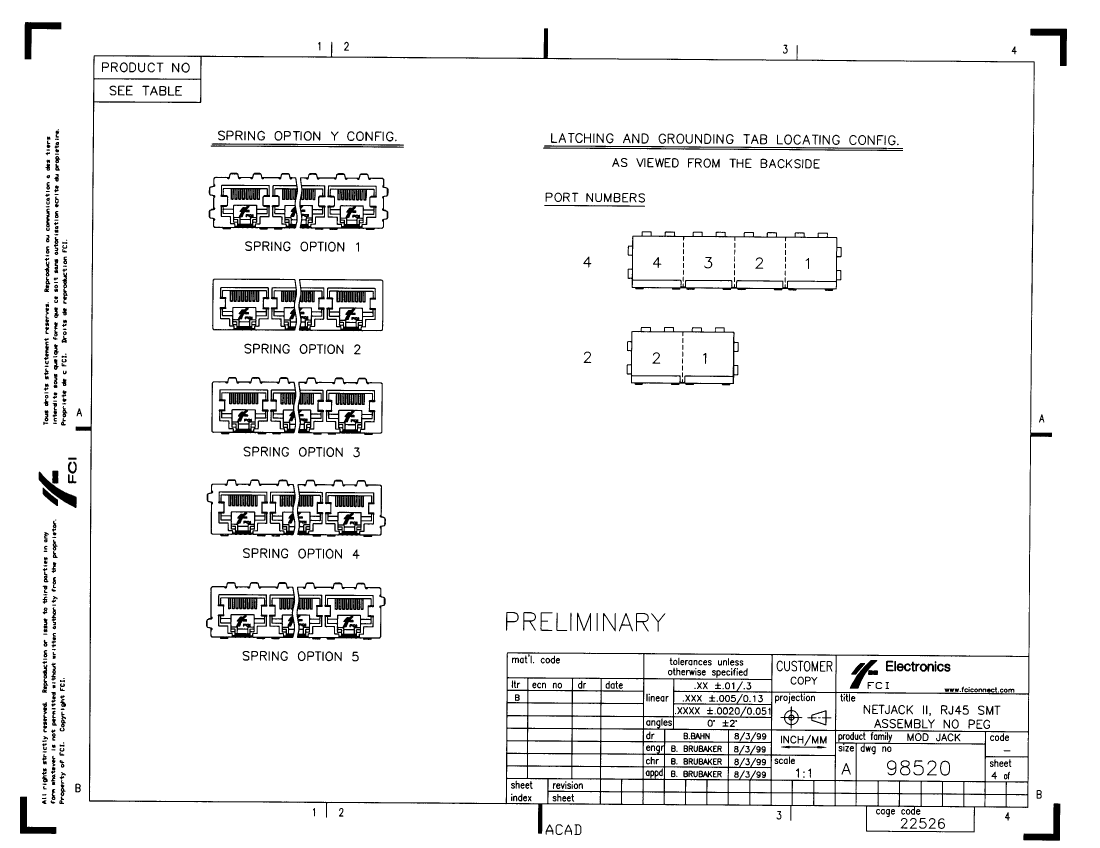

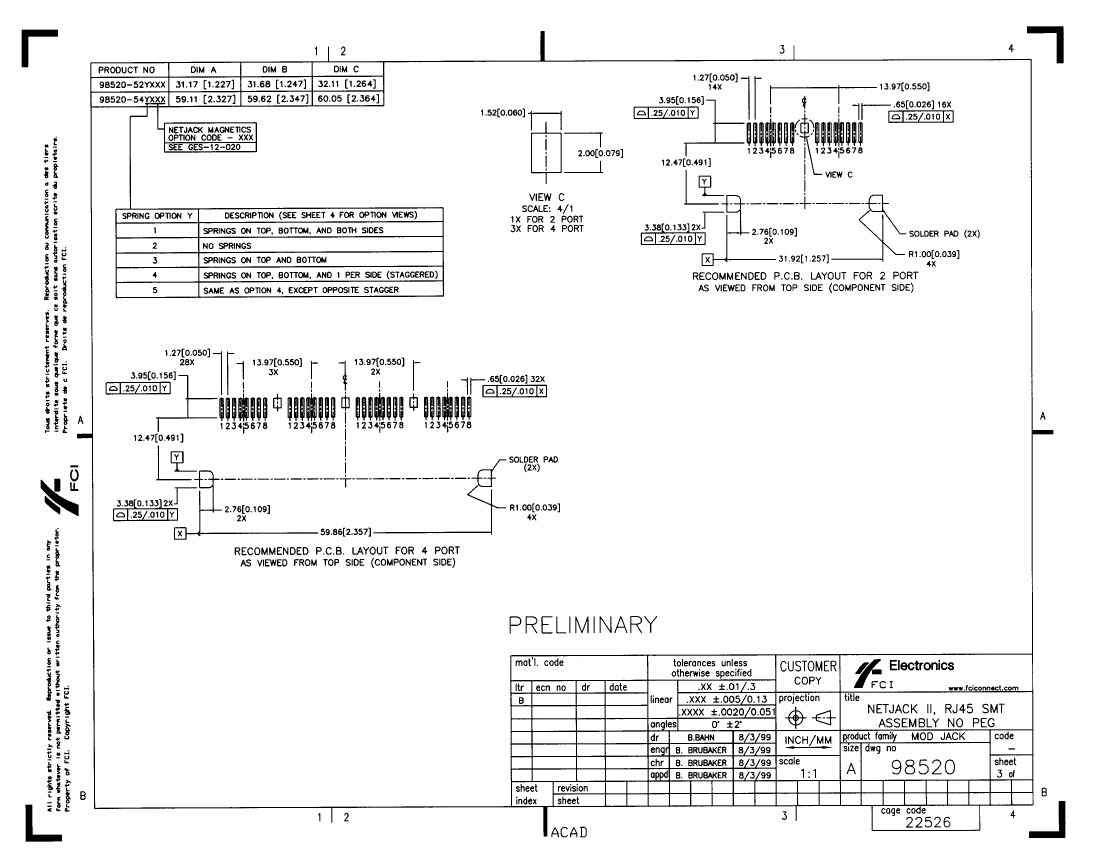

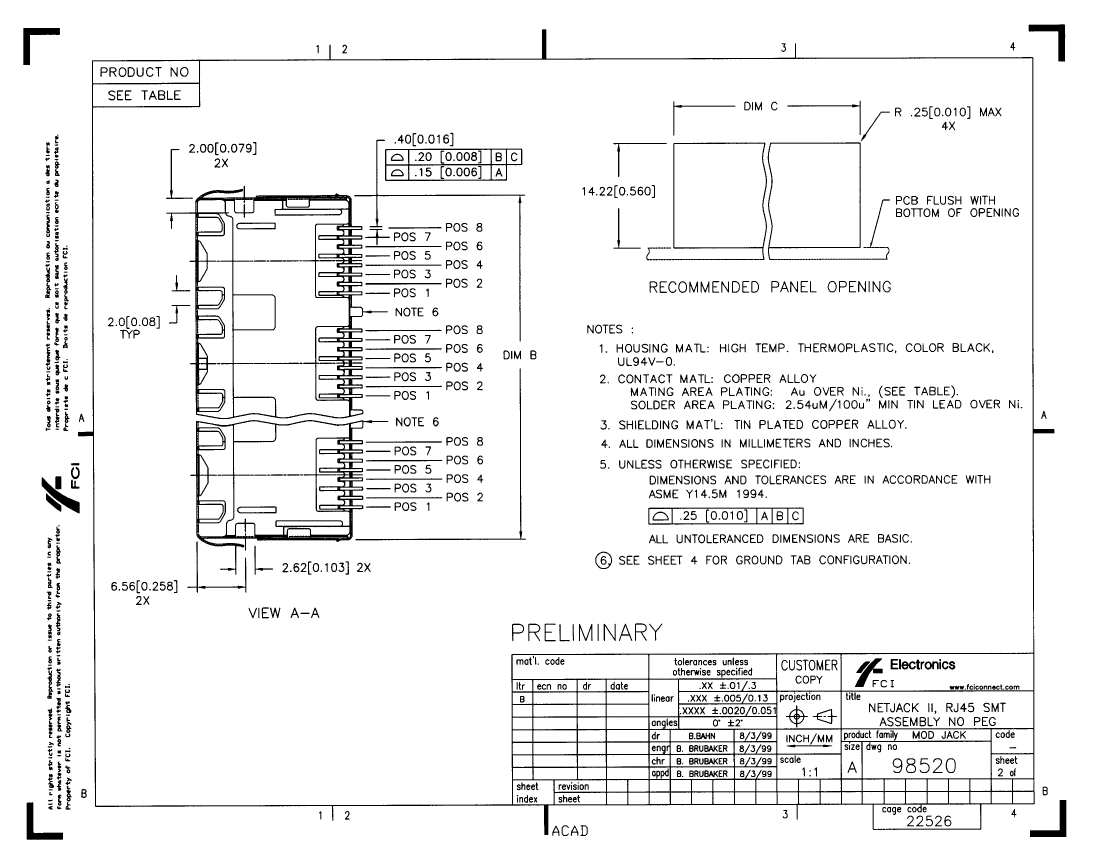

Other featuresTOP,BTM&OPP SIDE STAG SPRINGS
Board mount optionsSOLDER HOLDING POSTS
body width0.54 inch
subject depth0.834 inch
body length2.347 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
Durability1000 Cycles
maximum insertion force3.4472 N
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports4
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thickness50u inch
Rated current (signal)0.05 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialCOPPER ALLOY
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts32
