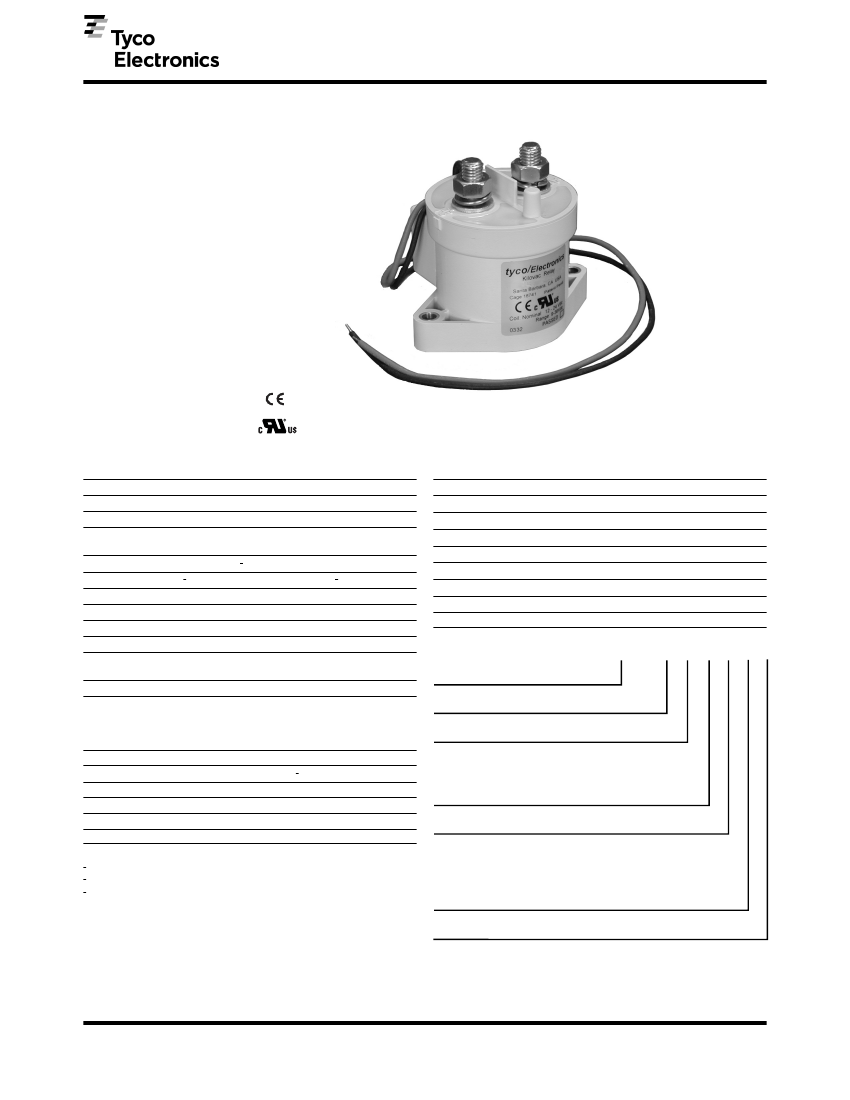

KILOVAC EV200 Series Contactor With 1 Form X
Contacts Rated 500+ Amps, 12-900VDC
Product Facts
I
Designed to be the smallest,
lightest weight, lowest cost sealed
contactor in the industry with its
current rating (500+A carry, 2000A
interrupt at 320VDC).
I
Built-in coil economizer – only
1.7W hold power @ 12VDC and it
limits back EMF to 0V. Models
requiring extenal economizer also
available.
I
Optional auxiliary contact for easy
monitoring of power contact
position.
I
Hermetically sealed – intrinsically
safe, operates in explosive/harsh
environments with no oxidation or
contamination of coils or contacts,
including long periods of non-
operation.
I
Versatile coil/power connections.
I
CE marked for EC applications.
I
AIAG QS9000 designed, built and
approved
EV200 Series Contactor
(CZONKA
®
Relay, Type III)
File E208033
Typical EV200 applications include battery
switching and back-up, DC voltage power
control, circuit protection and safety.
For factory-direct application assistance, dial
800-253-4560, ext. 2055, or 805-220-2055.
Performance Data
Parameter
Units Value for EV200 Series
Contact Arrangement, power contacts
1 Form X (SPST-NO-DM)
Rated Operating Voltage
VDC 12 - 900
Continuous (Carry) Current, Typical
A
500 @ 85°C, 400 mcm conductors
Consult Factory for required conductors for higher (500+ A) currents
Make/Break Current at Various Voltages
1
/
A
See next page
1
/
Break Current at 320VDC
A
2,000, 1 cycle
3
/
Contact Resistance, Typ. (@200A)
mohms 0.2
Load Life
Cycles See next page
Mechanical Life
Cycles 1 million
Contact Arrangement, auxiliary contacts
1 Form A (SPST-NO)
Aux. Contact Current, Max.
A
2A @ 30VDC / 3A @ 125VAC
Aux. Contact Current, Min.
mA
100mA @ 8V
Aux. Contact Resistance, Max.
ohms 0.417 @ 30VDC / .150 @ 125VAC
Operate Time @ 25°C
Close (includes bounce), Typ.
ms
15
Bounce (after close only), Max.
ms
7
Release (includes arcing), Max @ 2000A ms
12
Dielectric Withstanding Voltage
Vrms 2,200 @ sea level (leakage <1mA)
Insulation Resistance @ 500VDC
megohms 100
2
/
Shock, 11ms 1/2 sine, peak, operating
G
20
Vibration, sine, 80-2000Hz., peak
G
20
Operating Ambient Temperature
°C
-40 to +85
Weight, Nominal
lb.(kg) .95 (.43)
1/
2/
Coil Operating Voltage (valid over temperature range)
Voltage (will operate)
9-36VDC
32-95VDC
Voltage (Max.)
36VDC
95VDC
Pickup (close) Voltage Max.
9VDC
32VDC
Hold Voltage (Min.)
7.5VDC
22VDC
48-95VDC
95VDC
48VDC
34VDC
Dropout (open) Voltage (Min.)
6VDC
18VDC
27VDC
Inrush Current (Max.)
3.8A
1.3A
0.7A
Holding Current (Avg.)
0.13A@12V, 0.07A@24V 0.03A@48V 0.02A@72V
Inrush Time (Max.)
130ms
130ms
130ms
Part Numbering System
Typical Part Number
EV200 A
Series:
EV200 = 500+ Amp, 12-900VDC Contactor
Contact Form:
A = Normally Open
H = Normally Open with Aux. Contacts
Coil Voltage:
A = 9-36VDC (1 = requires external coil economizer)
D = 32-95VDC (2 = requires external coil economizer)
J = 48-95VDC (3 = requires external coil economizer)
R = 28VDC with Mechanical Economizer
Coil Wire Length:
A = 15.3 in (390 mm)
B = 6.0 in (152 mm)
Coil Terminal Connector:
N = None
B = Yazaki 7282-5558-10 male, 7114-4102-02, 7158-3030-50
+red is pin 2 (B length only)
C = Molex Mini-fit Jr, 2 Ckt, Female 18-24, P/N 39-01-2020 &
39-00-0060 +red is pin 1 (A length only)
Mounting & Power Terminals:
A = Bottom Mount & Male 10mm x M8 Terminals
A
A
N
A
Main power contacts
50 at end of life
3/
Does not meet dielectric & IR after test, 1700 amp for unit with Aux. Contacts
© 2004 & 2007 by Tyco Electronics Corporation. All Rights Reserved.
KILOVAC, CZONKA, TE mark and TYCO ELECTRONICS are trademarks.
Other products and company names mentioned herein may be trademarks of their
respective owners.
1
Catalog EV200--R-TBD
Revised 8-07
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
500+ Amp, 12-900VDC Contactor with
1 Form A (SPST-NO) Contacts
KILOVAC EV200 Series (CZONKA
®
Relay, Type III)

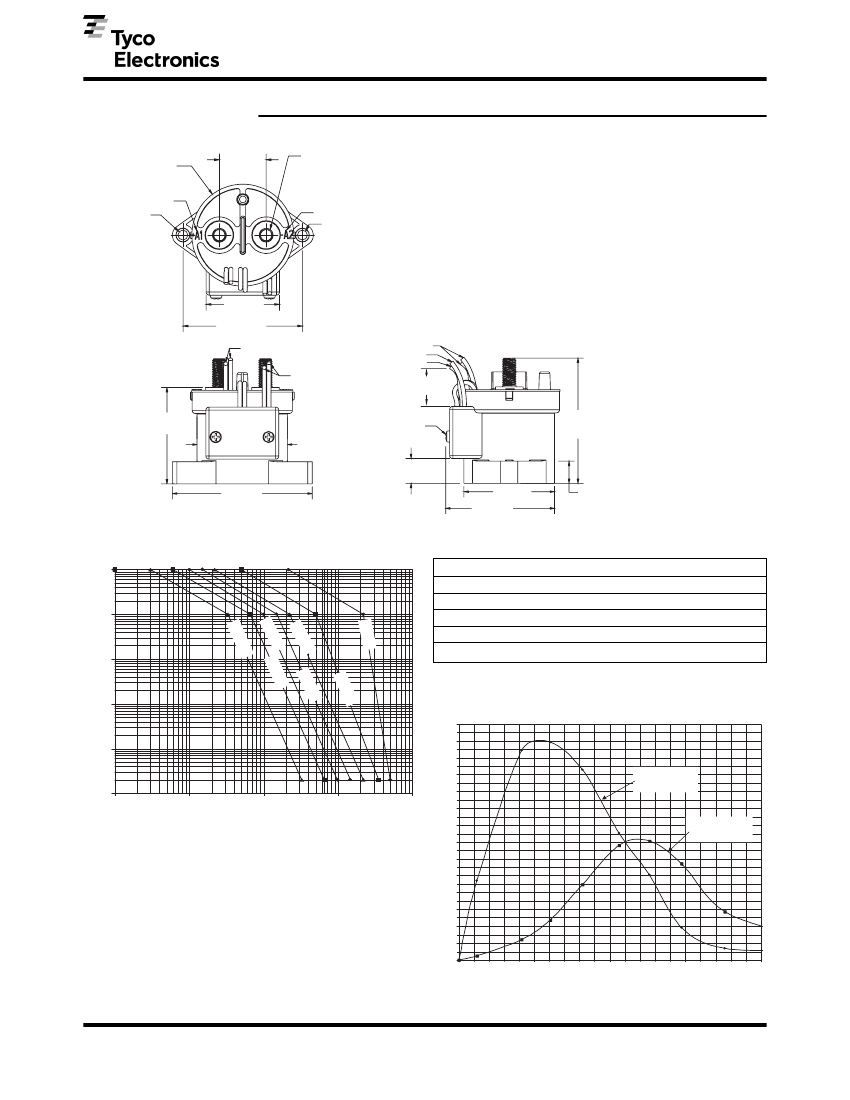

Outline Dimensions
2.29
±
.02 DIA
(58.19
±
.51)
1.05
±
.01
(26.67
±
.26)
M8 x 1.25 POWER TERMINALS
(HARDWARE SUPPLIED):
2 X M8 WASHER, STAINLESS
2 X M8 LOCKWASHER – SPLIT RING, STAINLESS
2 X M8 x 1.25 NUT, STAINLESS
TORQUE 80 TO 100 IN-LB (8.8 TO 11 NM)
A2 "–" NEGATIVE TERMINAL
MOUNTING HARDWARE (NOT SUPPLIED):
2 X M5 BOLT
2 X M5 LOCKWASHER
2 X M5 NARROW WASHER
TORQUE 15 TO 30 IN-LB (1.7 TO 3.3 NM)
(Continued)
A1 "+" POSITIVE TERMINAL
.225
±
.01DIA
(5.72
±
.26)
1.65
±
.01
(42.0
±
.26)
2.688
±
.01
(68.28
±
.26)
AUXILIARY CONTACT LEADS
WHITE = AUXILIARY CONTACT
(WHEN ORDERED)
BLACK = – COIL
RED = + COIL
SEE COIL WIRE
LENGTH IN P/N
COIL LEADS
2.20
±
.025
(55.81
±
.63)
2.04
±
.02 DIA
(51.94
±
.51)
STAINLESS
2.85
±
.025
(72.3
±
.63)
.55
±
.025
(14.04
±
.63)
3.17
±
.01
(80.48
±
.26)
2.05
±
.02
(52
±
.51)
2.58
±
.02
(65.6
±
.51)
.5
±
.01
(12.6
±
.26)
Estimated Make & Break Power Switching Ratings
100,000
Make and Break Power Switching Region
Electrical Load Life Ratings for Typical EV Applications
Make/Break Life Capacitive & Resistive Loads at 320VDC (1) (2)
@90% capacitive pre-charge (make only) see chart below
@80% capacitive pre-charge (make only) see chart below
Cycles
Cycles
Cycles
Cycles
Cycles
50,000
50
12
1*
1 million
650A
Break Only Above 650A
10,000
600
VDC
28 VDC
@200A make/break (2 consecutive, reverse polarity) (1)
2,000A (break only) (1)
Mechanical Life
0
180
VDC
270
VD
Estimated Life (Cycles)
C
1,000
VDC
900
(1) Resistive load includes inductance L = 25µH. Load @ 2500A tested @ 200µH.
(2) Life based on projected Weibull Life with 95% teliability.
* Does not meet dielectric and IR after test.
EV200 Capacitive Make Test Curves for Pre-Charged Motor Controller
700
400
VD
C
120
VDC
100
10
650
600
550
1
1
10
100
Load Current (A)
1,000
10,000
NOTES:
1) For resistive loads with 300H maximum inductance. Consult factory for inductive loads.
2) Estimates based on extrapolated data. User is encouraged to confirm performance in application.
3) End of life when dielectric strength between terminals falls below 50 megohms @ 500VDC.
4) The maximum make current is 650A to avoid contact welding.
500
450
80% Minimum
Pre Charge
Current (A)
400
350
300
250
200
150
100
50
0
0.0
0.5
1.0
1.5
90% Nominal
Pre Charge
Time (ms)
2.0
EV200--R-TBD – 0M – KRG – FP – 8-07
