DIL-CL-1A81-4/4-18M

Description
Dry Reed Relay, SPST, Momentary, 0.429A (Coil), 1.9VDC (Coil), 815.1mW (Coil), 0.4A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size391KB,3 Pages
ManufacturerStandex
Environmental Compliance
Download Datasheet Parametric View All

DIL-CL-1A81-4/4-18M Overview

Dry Reed Relay, SPST, Momentary, 0.429A (Coil), 1.9VDC (Coil), 815.1mW (Coil), 0.4A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

DIL-CL-1A81-4/4-18M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerStandex
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresCOIL OPERATE CURRENT: 0.015A; COIL RELEASE CURRENT: 0.005A
body width10.8 mm
body height10.5 mm
Body length or diameter20.9 mm
Maximum coil current (DC)0.429 A
Coil power815.1 mW
Coil resistance4.4 Ω
Maximum coil voltage (DC)1.9 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load.4A@200VAC
Maximum contact current (AC)0.4 A
Maximum contact current (DC)0.4 A
Contact (DC) maximum rated R load.4A@200VDC
Maximum contact voltage (AC)200 V
Maximum contact voltage (DC)200 V
Contact/Output Power TypeAC/DC
Electrical life100000000 Cycle(s)
JESD-609 codee3
Manufacturer's serial numberDIL-CL-1A81-4/4-18M
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours0.5 ms
Maximum operating temperature55 °C
Minimum operating temperature-20 °C
method of packingTUBE
physical size20.9mm x 10.8mm x 10.5mm
GuidelineUL
Relay actionMOMENTARY
Relay functionSPST
Relay typeDRY REED RELAY
release time0.1 ms
sealWATER PROOF
surface mountNO
Terminal surfaceTin (Sn)
Termination typeSOLDER
Base Number Matches1
A Global Leader in the Design, Development, and
Manufacture of Sensor and Magnetic Components
Series Datasheet – DIL Reed Relays
www.standexmeder.com
DIL Series
Reed Relays
Features Compatible with 14 pin DIL socket, High resistance coil up to 11 kOhm available
Available with Dielectric Strength 4.25kVDC, Diode, Magnetic Shield & Others
Markets: General purposes, Telecommunications, Test and Measurement & Others
Part Description:

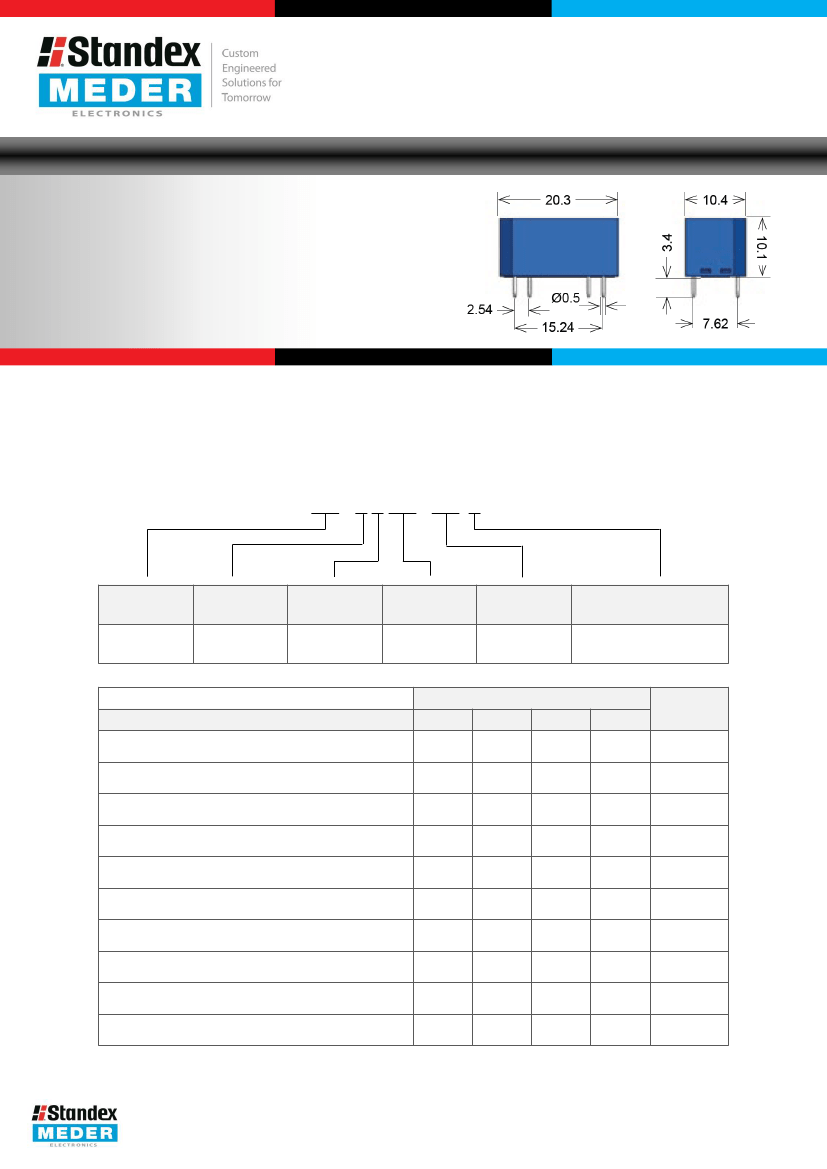

DIL 00-0X00-00X
Nominal
Voltage
05, 12, 24
Contact QTY
1, 2, 4
Contact
Form
A, C
Switch
Model
66, 75, 88, 90

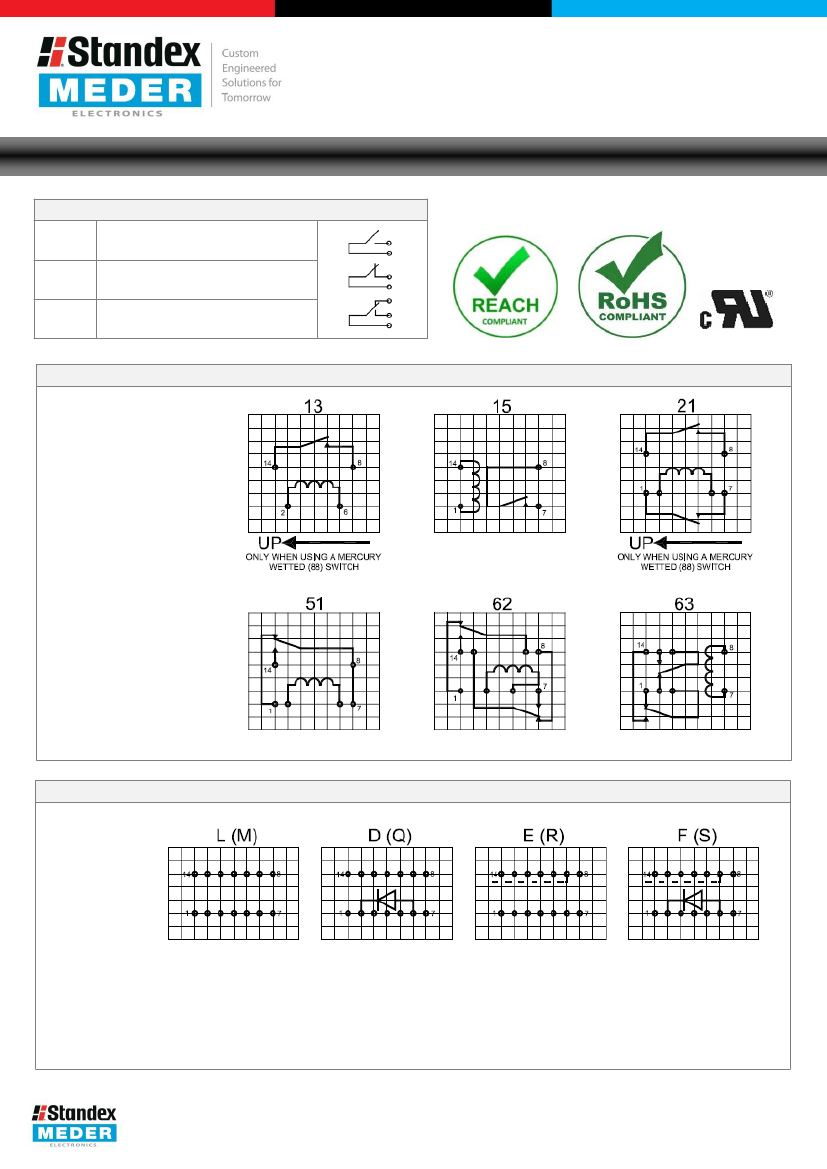

Pin Out
13, 15, 21, 51,
62, 63
Switch Model
Option
() Version with Magnetic Shield
L(M), D(Q), E(R), F(S)
Customer Options
Contact Data
Rated Power (max.)
Any DC combination of V&A not to exceed their individual max.’s
66
10
200
0.5
1.0
150
0.225
0.5
0.1
10
10
0.2
75
10
500
0.5
1.0
200
1.5
0.5
0.1
10
10
0.4
88
50
500
2
2
80
1.5
1.2
1.0
10
11
0.3
90
10
175
0.5
1.0
150
0.2
0.7
1.5
10
9
1.0
Unit
W
V
A
A
mOhm
kVDC
ms
ms
GOhm
pF

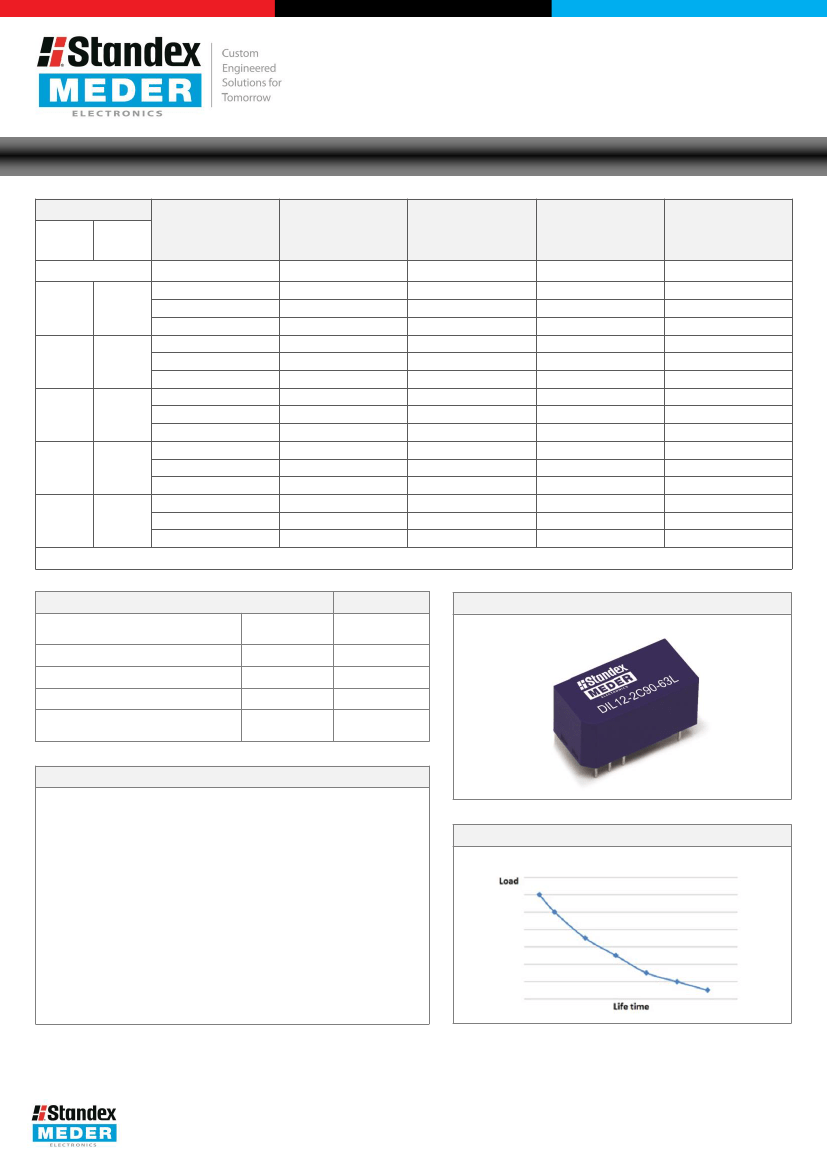

Switching Voltage (max.)
DC or peak AC
Switching Current (max.)
DC or peak AC
Carry Current (max.)
DC or peak AC
Contact Resistance (max.)
@ 0.5V & 50mA
Breakdown Voltage (min.)
According to EN60255-5
Operating Time (max.)
Incl. Bounce; Measured with w/ Nominal Voltage
Release Time (max.)
Measured with no Coil Excitation
Insulation Resistance (typ.)
Rh<45%, 100V Test Voltage
Capacitance (typ.)
@ 10kHz across open Switch
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 01
27.01.2015
Modifications in the sense of technical progress are reserved.
