UHA1H5R6KHA1CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UHA1H5R6KHA1CA

UHA1H5R6KHA1CA: DescriptionAluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size88KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UHA1H5R6KHA1CA Overview

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 10% +Tol, 10% -Tol, 5.6uF, Through Hole Mount, RADIAL LEADED

UHA1H5R6KHA1CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	5.6 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.1 mA
Manufacturer's serial number	HA
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
ripple current	7500 mA
surface mount	NO
Delta tangent	0.05
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

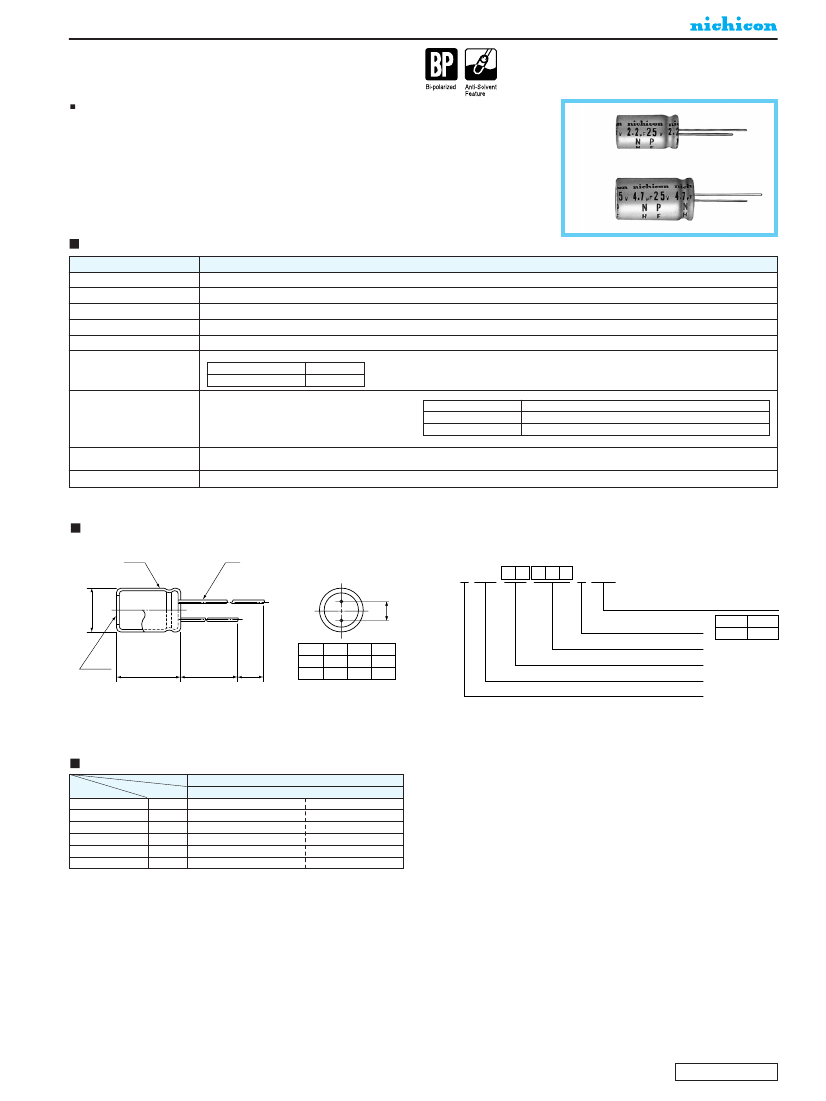

ALUMINUM ELECTROLYTIC CAPACITORS

Horizontal Deflection Current Correction Use

series

Designed specifically for horizontal deflection current correction of TV's where high

frequencies and high ripple currents are applied.

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

—25~+85°C

25•50V

2.2~10µF

±10% at 120Hz, 20°C

After 5 minutes' application of rated voltage, leakage current is 100 (µA) or less.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage(V)

tan

δ(MAX.)

25, 50

0.05

Capacitance change

tan

Leakage Current

Within ±15% of initial value

200

or less of initial specified value

Initial specified value or less

Endurance

After 1000 hours' application of DC 12V on

which the specified allowable ripple current is

superimposed at 70°C, capacitors meet the

characterstic requirements listed at right.

Shelf Life

Marking

After leaving capacitors under no load at 85°C for 500 hours, they meet the specified

value for endurance characteristics listed above.

Printed with blue color letter on light blue sleeve.

Radial Lead Type

Sleeve

φd

Type numbering system (Example:25V 3.3µF)

9 10 11

UHA 1 E 3 R 3 K HA

φD+

0.5MAX

±0.5

Configuration

Capacitance tolerance (±10%)

φD

12.5~18

Code

Pressure

relief vent

+1MAX

MIN

Rated Capacitance (3.3µF)

12.5

5.0

0.6

7.5

0.8

7.5

0.8

Rated voltage (25V)

Series name

Type

Dimensions

Cap.(µF)

Code

25, 50

1E, 1H

12.5×25

16×25

16×31.5

16×35.5

18×35.5

Case size(mm)

2.2

3.3

4.7

5.6

6.8

100...

2R2

3R3

4R7

5R6

6R8

100

77.5

107

Rated ripple

Ripple(Ap-p)at 70°C 15.75kHz

Please refer to page 18, 19, 20 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

CAT.8100Q-1
