UPW2F220MHH1TO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPW2F220MHH1TO

UPW2F220MHH1TO: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, CAN; CategoryPassive components capacitor; File Size81KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPW2F220MHH1TO Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, CAN

UPW2F220MHH1TO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.3772 mA
Manufacturer's serial number	PW
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	315 V
ripple current	120 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

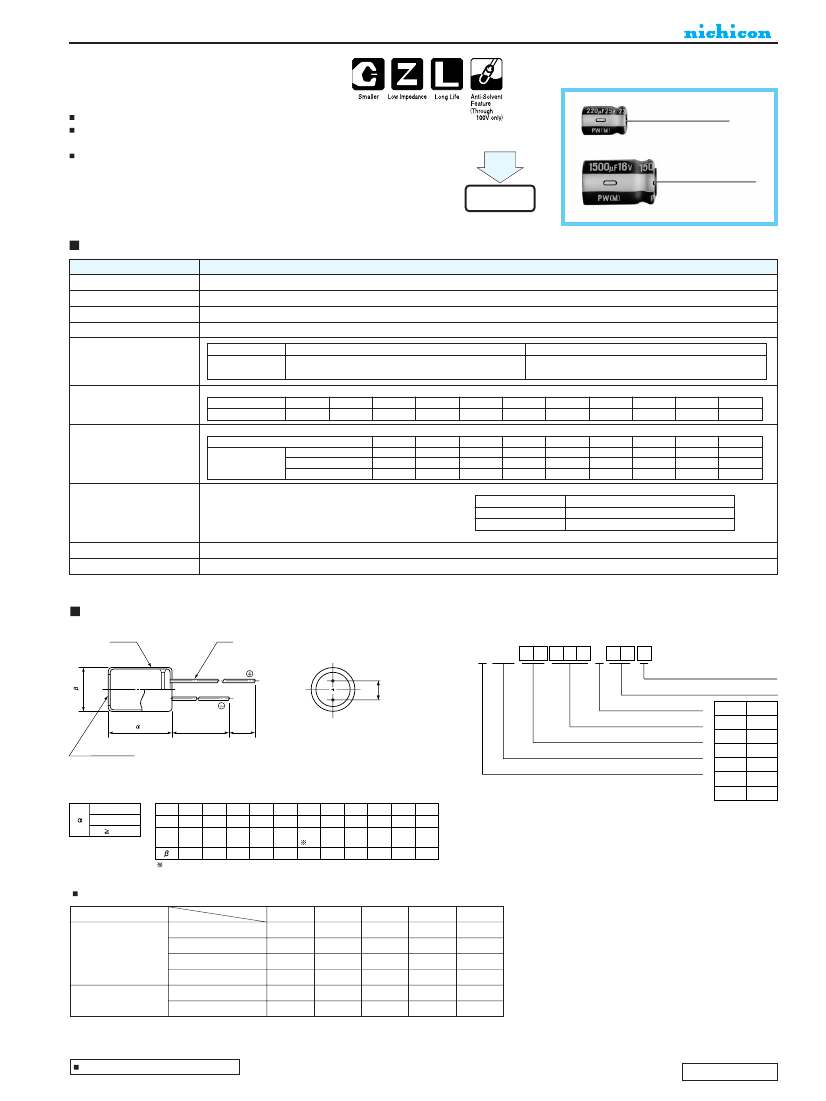

ALUMINUM ELECTROLYTIC CAPACITORS

Low lmpedance, High Reliability

For Switching Power Supplies

series

Smaller case size and lower impedance than PM series.

Low impedance and high reliability withstanding 5000 hour load life

at +105˚C (3000/2000 hours for smaller case sizes as specified below).

Capacitance ranges available based on the numerical values in E12 series

under JIS.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

—55 ~ +105˚C (6.3 ~ 100V), —40 ~ + 105˚C (160 ~ 400V), —25 ~ +105˚C (450V)

6.3 ~ 450V

0.47 ~ 15000µF

±20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

6.3

0.22

0.19

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

160 ~ 450

CV < 1000 :

I =

0.1CV+40 (µA)max. (1 minute's)

CV > 1000 :

I =

0.04CV+100 (µA)max. (1 minute's)

Measurement frequency : 120Hz, Temperature : 20˚C

Leakage Current

Leakage current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

tan

Rated voltage (V

)

tan

(

MAX.

)

0.09

100

0.08

250

—

160 ~ 250 315 · 350 400 · 450

0.15

0.20

0.25

120Hz

Stability at Low Temperature

Rated voltage (V)

—

55˚C/ Z+20˚C

—

40˚C/ Z+20˚C

Impedance ratio

—

25˚C/ Z+20˚C

63 · 100 160 · 200

—

315 · 350

—

400

—

450

—

Endurance

After an application of D.C. bias voltage plus the rated ripple

current for 5000 hours (2000 hours for D = 4, 5 and 6.3, 3000

hours for D = 8 and 10) at 105˚C the peak voltage shall not

exceed the rated D.C.voltage, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

Leakage current

Within

20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified value for endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve

Type numbering system (Example : 10V 680µF)

9 10 11

U PW 1 A 6 8 1 MP H

MAX

Size code

P±

0.5

Configuration

Capacitance tolerance(±20%)

•

6.3

•

12.5~18

20~25

Code

Pressure relief vent

MAX

MIN

Rated Capacitance(680µF)

Rated voltage(10V)

φ6.3up

(No pressure relief vent for 7mmL products)

Series name

Type

(L=7) 1.0

(L<20)1.5

(L 20)2.0

1.5

0.45

0.5

2.0

6.3

2.5

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.8

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

0.5

(0.45) (0.45)

0.5

: Applied to L>25 products

( ): Applied to 7mmL products

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

50Hz

0.20

0.55

0.70

0.80

0.90

120Hz

0.30

0.65

0.75

0.85

1.00

300Hz

0.50

0.75

0.80

0.90

1.25

1.10

1kHz

0.80

0.85

0.90

0.95

1.40

1.13

10kHz ~

1.00

1.60

1.15

..~

6.3 ~ 100

68 ~ 330.

390 ~ 1000.

.1200

~ 15000

160 ~ 450

0.47 ~ 2200

330 ~ 470.

Please refer to page 18, 19, 20 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100Q
