SR309 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SR309

SR309: Description3 A, 90 V, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size231KB，3 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

SR309 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SR309	-	-	View	Buy Now

SR309 Overview

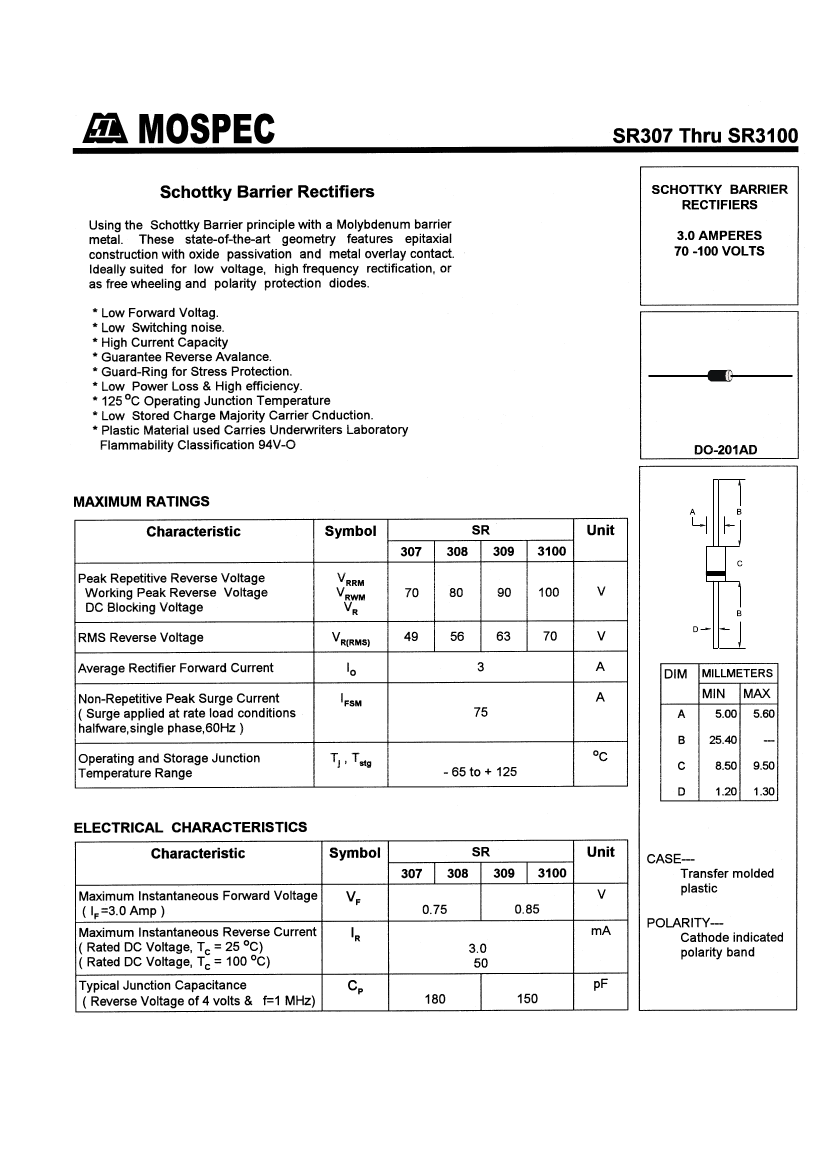

3 A, 90 V, SILICON, RECTIFIER DIODE, DO-201AD

SR309 Parametric

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	75 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	90 V
Maximum reverse current	500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SR309 Related Products

	SR309	SR3100	SR308	SR307
Description	3 A, 90 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 80 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 70 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V	0.75 V	0.75 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	75 A	75 A	75 A	75 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	90 V	100 V	80 V	70 V
Maximum reverse current	500 µA	500 µA	500 µA	500 µA
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
