3-177537-3 datasheet, PDF - EEWORLD Datasheet

3-177537-3: Description2.5 M.I.S POST HDR ASY 13P YEL; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

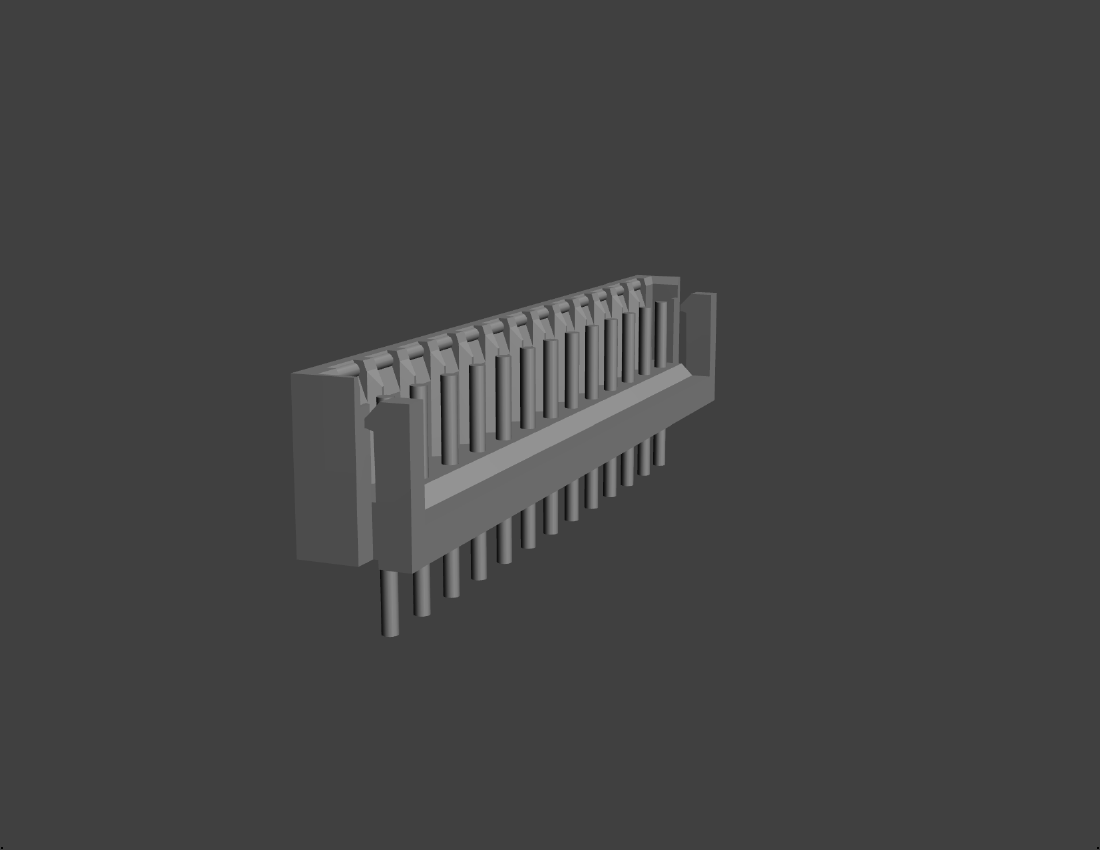

3-177537-3 Overview

2.5 M.I.S POST HDR ASY 13P YEL

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PACKAGING QTY 500 LOOSE PIECES
body width	0.175 inch
subject depth	0.255 inch
body length	1.378 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	5.3376 N
Insulation resistance	1000000000 Ω
Insulator color	YELLOW
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.098 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	31u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Evacuation force-minimum value	.8062 N
Base Number Matches	1
