3-2007825-4

Description

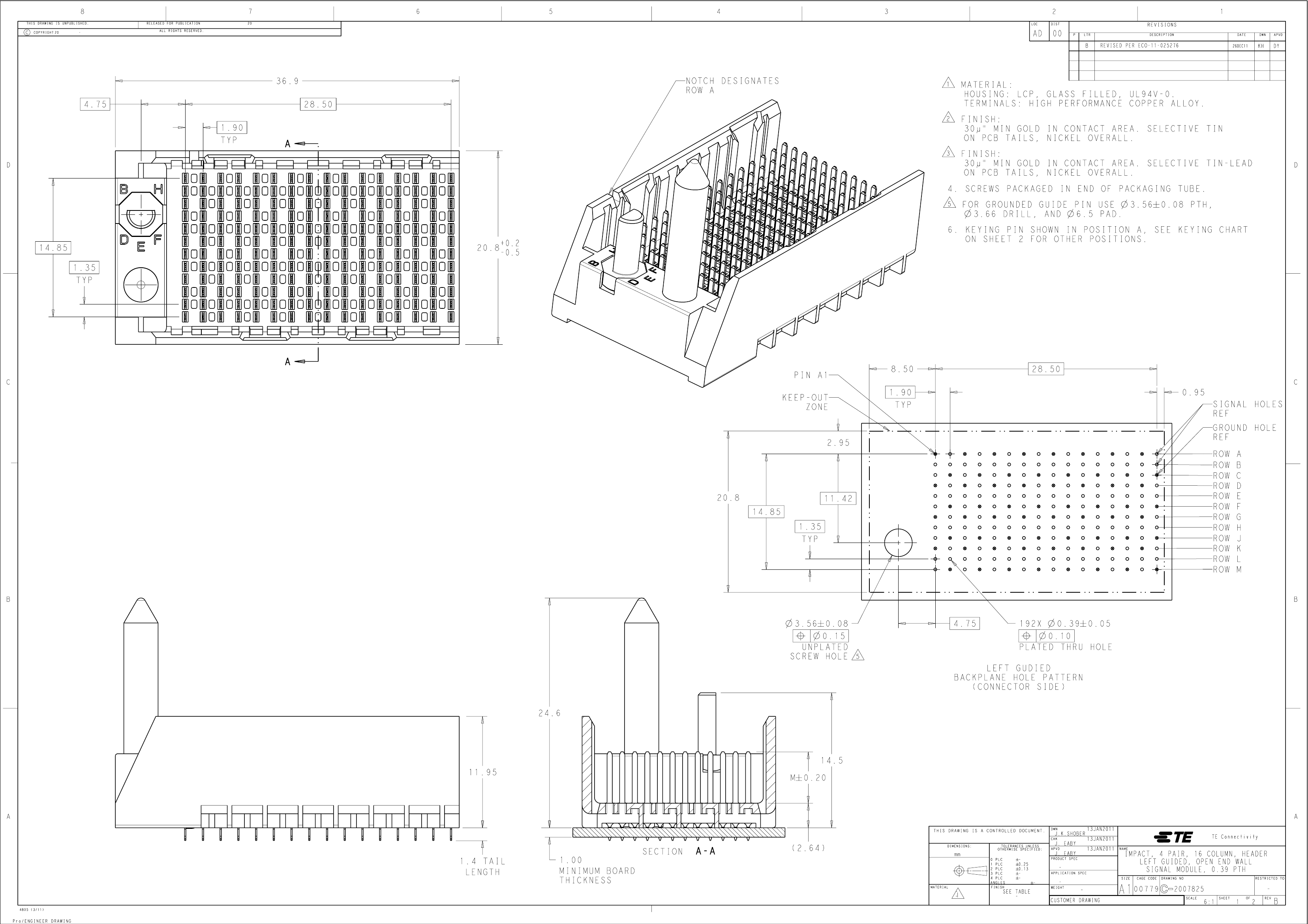

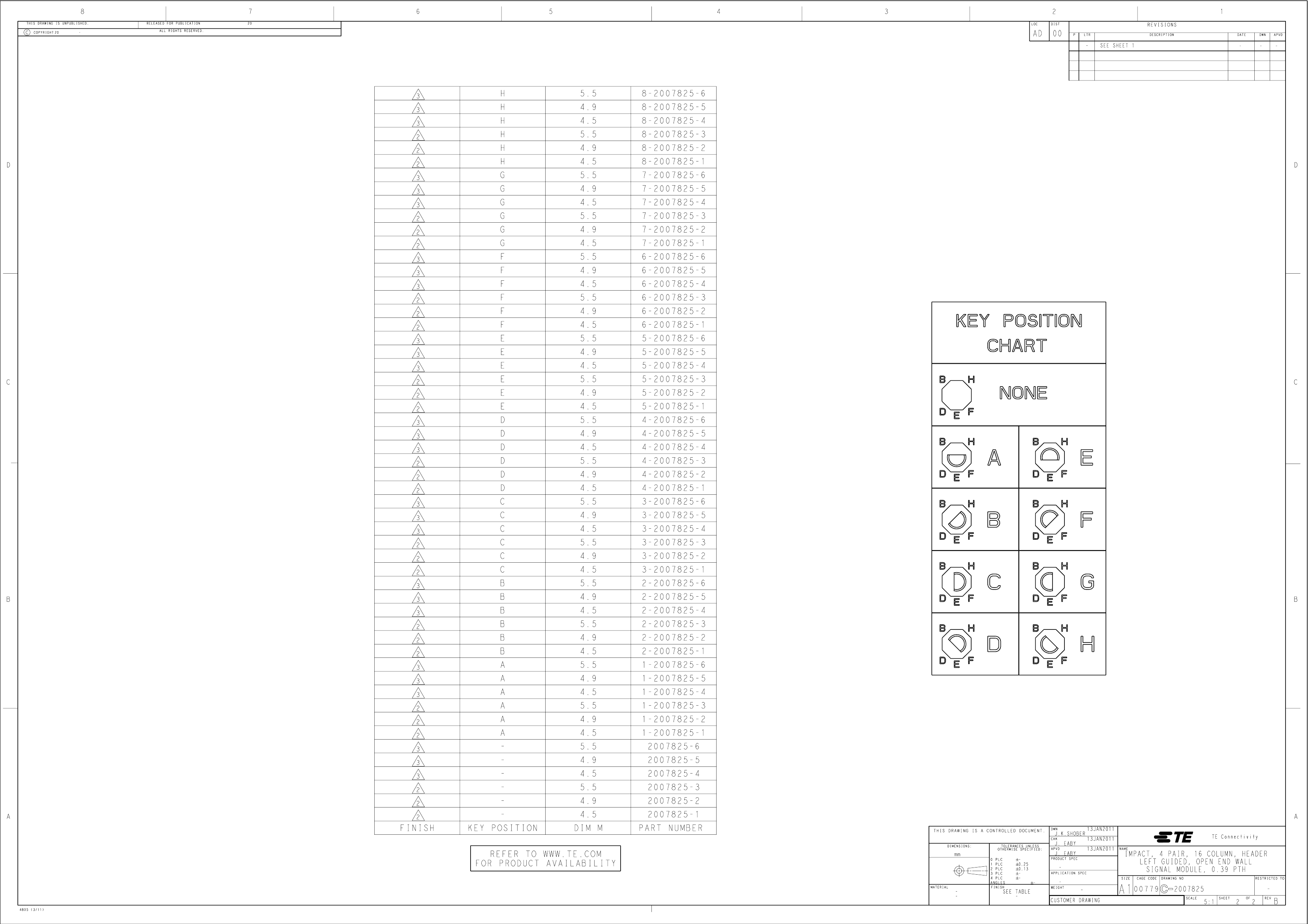

HEADER CONNECTOR,PCB MNT,192 CONTACTS,PIN,0.074 PITCH,COMPLIANT FIT TERMINAL,LOCKING
CategoryThe connector    The connector
File Size288KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-2007825-4 Overview

HEADER CONNECTOR,PCB MNT,192 CONTACTS,PIN,0.074 PITCH,COMPLIANT FIT TERMINAL,LOCKING

3-2007825-4 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.819 inch
subject depth0.47 inch
body length1.452 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance10 mΩ
Dielectric withstand voltage500VAC V
Durability500 Cycles
maximum insertion force.3336 N
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number2007825
Plug contact pitch0.074 inch
Match contact row spacing0.053 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number12
Number of rows loaded12
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.3462 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.75 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.055 inch
Terminal pitch1.8796 mm
Termination typePRESS FIT
Total number of contacts192
Evacuation force-minimum value.14734 N
