Part Number

Search

3-829638-3

Description
EDGE CONNECTOR,CABLE MNT,6 CONTACTS,2,IDC TERMINAL
CategoryThe connector    The connector
File Size540KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

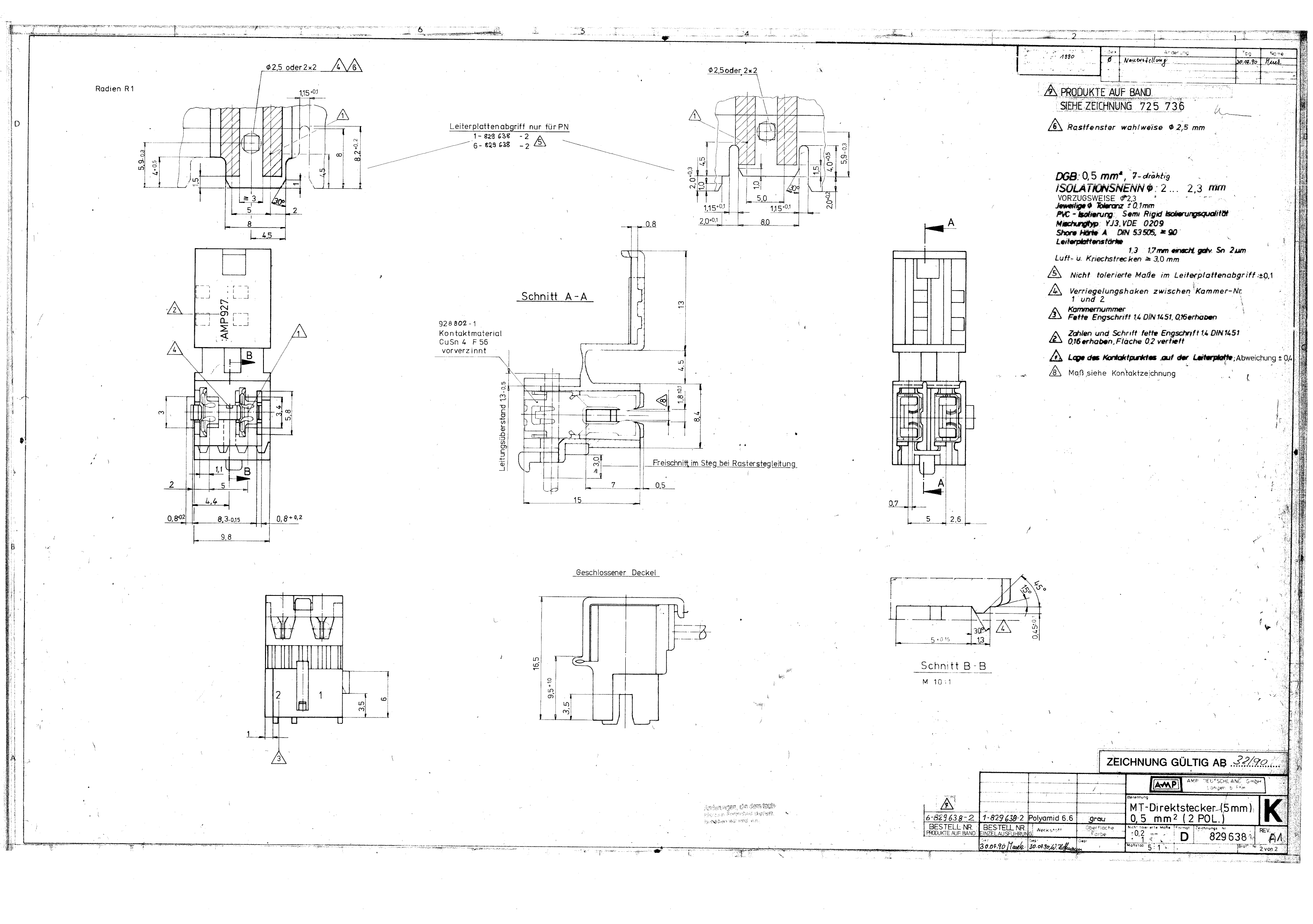

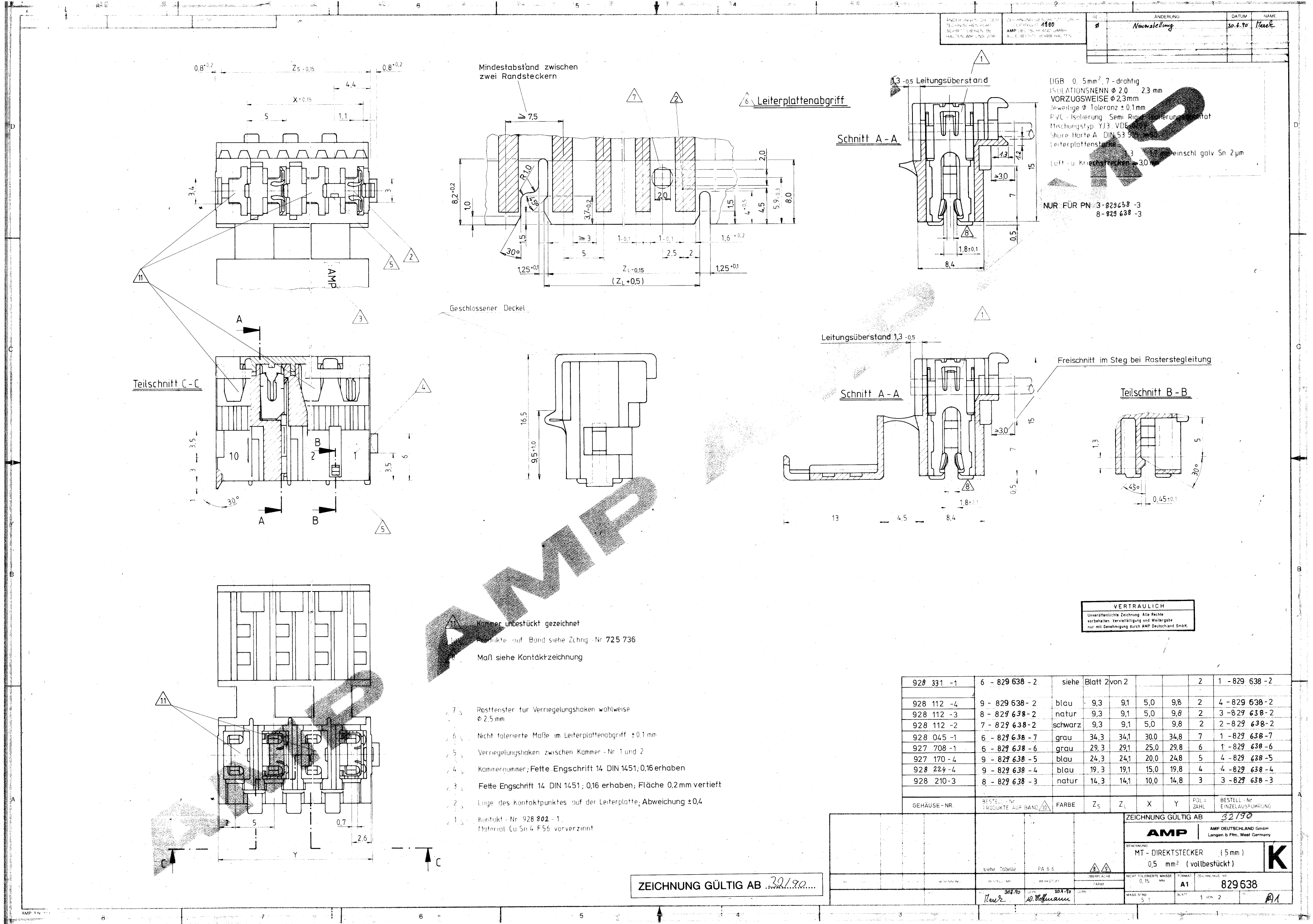

3-829638-3 Overview

EDGE CONNECTOR,CABLE MNT,6 CONTACTS,2,IDC TERMINAL

3-829638-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOOSE PIECE PACKAGING
Board mount optionsEDGE MOUNT
body width0.571 inch
subject depth0.65 inch
body length0.626 inch
Connector typeCARD EDGE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationSN
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage3500VAC V
maximum insertion force8.0064 N
Minimum insulation diameter0.079 inch
Insulator colorNATURAL
insulator materialPOLYAMIDE
Manufacturer's serial number829638
Plug contact pitch0.197 inch
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Plating thickness79u inch
Rated current (signal)6 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts6
Maximum wire diameter18 AWG
Minimum wire diameter20 AWG
Evacuation force-minimum value3.9198 N
